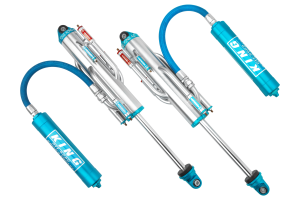

King RS4014-BP3H 4.0 Race Series 3 Tube Bypass Shock 14 Inch Stroke Remote Reservoir

The King RS4014-BP3H is a 4.0 inch diameter Pure Race Series bypass shock engineered for ultimate performance in extreme off-road racing applications. This shock features 14 inches of travel with a 3-tube bypass configuration and remote reservoir with hose connection for optimal heat dissipation and performance.

Advanced Shaft Design:

• Large 1.25 inch diameter shock shaft induction hardened to 60-65 Rockwell scale
• Hard chrome plated and micro-polished to 3 RMS mirror finish for superior seal life
• Rock bruising protection with mirror finish that prevents weeping
• Proprietary rod end attachment method with hydraulically pressed shaft through threaded bung, TIG welded for exceptional strength

Bypass Technology:

• 3 large 1.00 inch bypass tubes for position-sensitive damping control
• Independent compression and rebound tube adjustment with no cross-influence
• Heat-treated stainless steel bypass valves and springs for fade-free operation
• 14 turns of precise adjustability per valve for fine-tuning
• Each bypass stage operates independently for ultimate control

Premium Construction:

• Remote reservoir with threaded end caps for higher pressure capacity and easy maintenance
• Replaceable Teflon-lined steel spherical bearings at both mounting points
• Precision bored shock cylinders to within ±0.001 inch tolerance
• Aircraft-quality billet aluminum components

King Pure Race Series bypass shocks represent the pinnacle of off-road suspension technology, custom-built for racing applications where ultimate performance and adjustability are essential. These shocks are designed for serious racers who demand complete control over high-speed and low-speed oscillations in the harshest environments.
