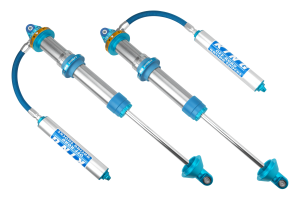

King RS3514-COHR 3.5 Inch Race Coilover Dual Rate Hose Remote Reservoir 14 Inch Stroke

The King RS3514-COHR is a 3.5-inch diameter Pure Race series coilover shock engineered for competition-level off-road vehicles. This high-performance coilover features a 14-inch stroke, 1-inch hardened shock shaft, and a hose-style remote reservoir for superior heat dissipation and damping consistency under extreme racing conditions.

Key Features:

• 3.5-inch diameter shock body with 1-inch shaft for maximum strength and oil capacity
• 14-inch stroke with compressed length of 24.56 inches and extended length of 38.56 inches
• Dual rate coilover design allows custom spring selection (springs sold separately)
• Hose-style remote reservoir increases oil volume and improves cooling
• Internal Bypass Piston (IBP) technology provides position-sensitive damping control
• Precision bored and honed cylinders to within +/- 0.001 inch tolerances
• Cold drawn 2024 billet aluminum pistons with PTFE-impregnated bronze wear bands
• Heat treated stainless alloy valve shims stable up to 450 degrees Fahrenheit
• Truncated thread design for ultimate strength and trouble-free spring adjustments
• 100% made in the USA with premium materials and precision CNC machining

King Pure Race series shocks are custom-built to order and engineered for the most demanding racing applications. The IBP technology allows light valving at ride height for a smooth ride while providing substantial damping force at full compression to prevent bottoming. Every King shock is fully rebuildable, serviceable, and tunable with simple hand tools.
