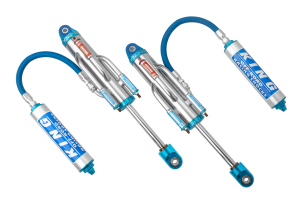

King RS3018-BP3H 3.0 Race Series 3-Tube Bypass Shock 18 Inch Stroke

The King RS3018-BP3H is a premium 3.0-inch diameter race bypass shock engineered for extreme off-road racing applications. This high-performance shock features a 3-tube bypass configuration with remote hose reservoir, delivering exceptional damping control and position-sensitive tuning capabilities for the most demanding terrain.

Key Specifications:

• Shock diameter: 3.0 inches
• Stroke length: 18 inches
• Compressed length: 30.06 inches
• Extended length: 48.06 inches
• Shaft diameter: 1 inch
• Large 3/4-inch bypass tubes (3-tube configuration)
• Remote hose reservoir design

Advanced Bypass Technology:

The 3-tube bypass system provides position-sensitive damping that allows independent tuning of compression and rebound at different points in the shock's travel. Each bypass stage operates independently with 14 turns of precise adjustment, giving racers unparalleled control over suspension performance. King's bypass valves and springs are manufactured from heat-treated stainless steel alloy for consistent, fade-free operation with no unregulated bypass flow.

Pure Race Series Engineering:

Part of King's Pure Race series, this shock is built for all-out racing with rigorous testing in the harshest environments. The precision-engineered design utilizes the highest quality materials and strict tolerances to deliver superior control and ride quality. Every component is optimized for maximum performance and durability under extreme racing conditions.

This shock is custom-built for specific applications and features King's rebuildable, adjustable design for long-term serviceability and performance optimization.
