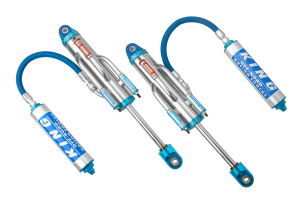

King RS3014-BP4H Pure Race Bypass Shock Remote Reservoir Stroke - 3.0 4-Tube 14

The King RS3014-BP4H is a professional-grade 3.0-inch Pure Race bypass shock engineered for extreme off-road racing applications. This high-performance shock features a 4-tube external bypass design with hose-style remote reservoir, delivering position-sensitive damping and precise tuning control for the ultimate in suspension performance.

Key Specifications:

• 3.0-inch bore diameter with 1-inch hardened shaft
• 14-inch stroke travel for maximum wheel articulation
• Compressed length: 24.375 inches
• Extended length: 38.375 inches
• 4-tube external bypass configuration with large 3/4-inch bypass tubes
• Hose-style remote reservoir for flexible mounting options
• 100% hand-built in the USA from billet aluminum components

Performance Features:

• Position-sensitive damping allows independent tuning of each bypass stage
• External bypass tubes provide separately adjustable compression and rebound control
• Remote reservoir increases oil capacity for consistent performance and reduced fade
• Heat-treated stainless steel bypass valves deliver fade-free operation
• 14 turns of precise adjustment per bypass tube for fine-tuning capabilities
• Non-cavitating design eliminates compression cavitation for improved consistency

Designed for universal race applications, this shock is custom-configurable and rebuildable with simple hand tools. Each King Pure Race bypass shock is precision-machined and hand-assembled to exacting standards, backed by a 90-day manufacturer warranty against defects.
