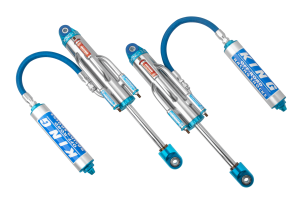

King RS3014-BP3P Pure Race Bypass Shock with Piggyback Reservoir Stroke - 3.0 3-Tube 14

The King Shocks RS3014-BP3P is a 3.0-inch Pure Race series bypass shock absorber featuring a 14-inch stroke and an integrated piggyback reservoir. Built for all-out off-road racing competition, this shock represents the pinnacle of King's suspension engineering with fully independent, position-sensitive bypass tube technology.

The RS3014-BP3P is configured with 3 bypass tubes — two compression tubes and one rebound tube — each operating independently to deliver precise, stage-by-stage damping control. Unlike conventional shock designs, compression tubes have no influence on rebound tubes and vice versa, allowing each bypass stage to be separately tuned for the specific demands of your application.

Key Features:

• 3.0" body diameter with 14" of stroke travel
• 3-tube bypass configuration — 2 compression tubes, 1 rebound tube
• Piggyback reservoir for increased fluid capacity and improved heat dissipation
• Position-sensitive damping — each bypass stage is independently tunable
• Bypass valves and springs crafted from heat-treated stainless steel alloy for consistent, fade-free operation
• 14 turns of precise adjustability per bypass valve
• Bypass ports CNC drilled, hand deburred, and polished, then aircraft-quality TIG welded by certified welders
• Assemblies pressure tested to 300 PSI and sent for plating
• Tubes precision bored and honed to ±.001" for a tight piston seal
• Cold-drawn 2024 billet aluminum piston gliding on a Teflon-bronze wear band
• Viton o-ring seals and carbon composite wiper seal for sustained high-temperature performance
• Shock shaft is induction hardened to Rockwell 60–65, hard chrome plated, and micro-polished to a 3 RMS mirror finish
• Teflon-lined steel spherical bearings on both mounting ends
• Threaded end cap piggyback reservoir for higher pressure ratings and easy maintenance
• Lightweight aluminum reservoir construction for superior heat dissipation
• Fully rebuildable and serviceable

Every component in the RS3014-BP3P has been engineered and torture-tested under brutal race conditions. King's commitment to tight tolerances, premium materials, and in-house quality controls delivers the race-proven ride quality and damping precision that professional off-road racers depend on.
