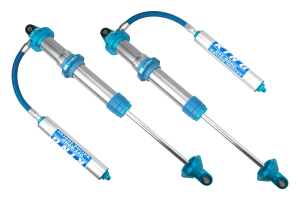

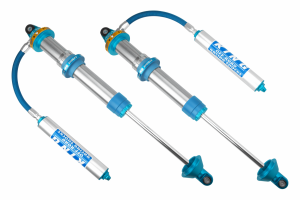

King RS3010-COHR 3.0 Race Series Coilover Shock with Remote Reservoir 10 Inch Stroke

The King RS3010-COHR is a 3.0-inch Race Series coilover shock with remote hose reservoir featuring 10 inches of travel, engineered for serious off-road racing applications. This premium coilover combines both the coil spring and shock absorber in one space-saving package, delivering uncompromising damping control and suspension performance in the most demanding conditions.

Race-Proven Construction and Components:

• Lightweight, hard-anodized 6063 aluminum alloy remote reservoir for superior heat dissipation
• Cadmium-plated shock body for corrosion resistance and durability
• Hard-chromed, micro-polished high-tensile strength shaft with 1-inch diameter
• 6061 aluminum alloy piston for precision damping control
• Heat-treated stainless alloy valve shims for consistent performance
• Long-lasting composite overlapping wear bands and urethane seals
• PTFE-lined stainless steel spherical bearings

Technical Specifications:

• Compressed length: 19.81 inches
• Extended length: 29.81 inches
• Stroke: 10 inches
• Shock body diameter: 3.0 inches
• Shaft diameter: 1 inch
• Reservoir type: Remote hose reservoir

Advanced Coilover Features:

• Truncated thread design for ultimate strength and trouble-free spring adjustments
• Three-piece adjusting nut assembly with pinch bolt design for superior clamping force
• Upper spring centering ring and nylon anti-friction disc for easy preload adjustment
• Machined billet nylon coil sliders maintain spring alignment and silent operation
• Heat-resistant components withstand temperatures up to 450 degrees

The King Race Series represents the pinnacle of off-road shock technology, custom-built for racing applications where performance cannot be compromised. This coilover is designed for dual-rate spring configurations and comes without springs, allowing you to spec the perfect setup for your specific vehicle and racing needs. Fully rebuildable and serviceable for long-term performance.
