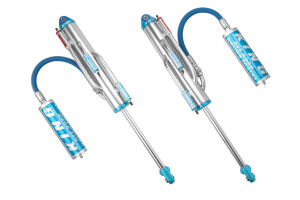

King RS3010-BP2H 3.0 Race Series Bypass Shock 2-Tube Remote Reservoir 10 Inch Stroke

The King RS3010-BP2H is a 3.0-inch Race Series bypass shock featuring a 2-tube bypass configuration with remote reservoir and 10-inch stroke. Designed for extreme off-road racing applications, this shock offers position-sensitive damping for precise control over high-speed and low-speed suspension oscillations.

Key Features:

• 3.0-inch diameter shock body with 1-inch hardened shaft
• 2-tube bypass configuration with large 3/4-inch bypass tubes
• Remote reservoir with hose connection for flexible mounting
• 10-inch travel stroke for maximum suspension articulation
• 14 turns of precise valve adjustment for fine-tuning
• Heat-treated stainless steel bypass valves and springs for fade-free operation
• Position-sensitive design where compression tubes have no influence on rebound tubes
• CNC-drilled and hand-deburred bypass ports for enhanced flow control
• Honed and plated shock tubes for tight piston seal and durability

King's Race Series bypass shocks represent the pinnacle of off-road suspension technology, with each bypass stage separately tunable and operating independently. The superior tube flow capacity and bypass valve design provide accurate flow control throughout the entire adjustment range, delivering enhanced vehicle control, reduced driver fatigue, and sustained peak performance in the most demanding racing conditions.
