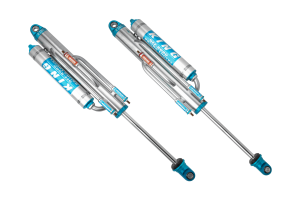

King RS2512-BP2P 2.5 Pure Race Bypass Shock 2-Tube Piggyback Reservoir 12 Inch Stroke

The King RS2512-BP2P is a 2.5-inch diameter Pure Race bypass shock engineered for extreme off-road racing and high-performance applications. This shock features a 2-tube bypass design with integrated piggyback reservoir, delivering superior damping control and adjustability for demanding racing conditions.

Key Features:

• 2.5-inch shock body with 12-inch stroke length for maximum suspension travel
• 2-tube bypass configuration with large 3/4-inch bypass tubes for position-sensitive damping
• 7/8-inch induction hardened, hard chrome-plated shaft polished to 3 RMS mirror finish
• Piggyback reservoir design for compact packaging and efficient heat dissipation
• Compressed length: 21.81 inches, Extended length: 33.81 inches
• Heat-treated stainless steel bypass valves and springs for fade-free operation
• 14 turns of precise adjustability on each bypass valve
• Position-sensitive design allows independent tuning of compression and rebound
• CNC-drilled bypass ports with aircraft-quality TIG welding
• Cold-drawn 2024 billet aluminum piston with Teflon bronze wear band
• Viton o-ring seals for sustained high-temperature performance
• Threaded aluminum reservoir end caps for high-pressure capability
• Replaceable Teflon-lined steel spherical bearing rod ends

King bypass shocks are precision-manufactured with shock tubes bored and honed to within +/- 0.001 inch for optimal piston seal and flow characteristics. Each shock is pressure tested to 300 PSI before plating to ensure race-proven reliability and performance.
