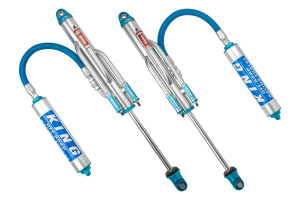

King RS2508-BP2H 2.5 Pure Race Bypass Shock 2 Tube Remote Reservoir 8 Inch Stroke

The King RS2508-BP2H is a 2.5-inch Pure Race series bypass shock featuring dual 3/4-inch bypass tubes with hose-style remote reservoir configuration. Engineered for extreme off-road racing applications, this shock delivers position-sensitive damping control through independently adjustable bypass stages for unmatched suspension performance.

Key Specifications:

• Stroke: 8 inches
• Extended length: 25.625 inches
• Compressed length: 17.625 inches
• Shaft diameter: 7/8 inch, induction hardened and micro-polished
• Body diameter: 2.5 inches for increased fluid capacity
• Bypass tube size: Large 3/4-inch diameter tubes
• Configuration: 2-tube bypass with hose remote reservoir

Performance Features:

• Position-sensitive damping allows independent control of compression and rebound at different points in the stroke
• CNC-drilled and hand-polished bypass ports for optimal flow characteristics
• Precision-honed shock tubes maintained to +/- .001 tolerance for tight piston seal
• Heat-treated stainless steel bypass valve springs resist fade at high temperatures
• Cold-drawn 2024 billet aluminum piston with optimized fluid dynamics
• Aeroquip hose construction offers superior durability and temperature resistance
• Teflon-lined spherical bearings at mounting points

King's Pure Race bypass technology represents the culmination of decades of race-proven development from competitions including the Baja 1000. Each bypass stage offers 14 turns of precise adjustment, allowing custom tuning for your specific application. The 2.5-inch body diameter maximizes fluid capacity for cooler operation and consistent damping performance under the most demanding conditions.
