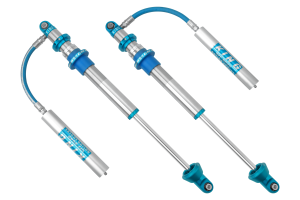

King RS2012-COHR 2.0 Pure Race Dual Rate Coilover Shock 12 Inch

The King RS2012-COHR is a 2.0-inch Pure Race series dual rate coilover shock with remote hose reservoir, featuring 12 inches of stroke for extreme off-road racing applications. King's Pure Race Series shocks represent the highest level of race shock development, designed with one purpose in mind—all-out racing, with proven dominance in the toughest races on the planet like the legendary Baja 1000 and the Dakar Rally.

Key Specifications:

• Stroke: 12 inches
• Extended Length: 33.81 inches
• Compressed Length: 21.81 inches
• Shock Body Diameter: 2.0 inches
• Shaft Size: 7/8 inch
• Mounting Hardware: 1/2 x 1.50
• Reservoir Type: Hose Remote Reservoir
• Springs sold separately

Premium Construction Features:

• Shock body machined with King's truncated thread design for ultimate strength and trouble-free spring adjustments
• Three-piece adjusting nut assembly with unique pinch bolt design for superior clamping force without crushing threads
• Machined billet nylon coil sliders maintain proper spring alignment while withstanding temperatures up to 450 degrees
• Pure Race series reservoirs are the largest in the industry, featuring threaded end caps to endure higher pressures and ease maintenance
• High-quality Aeroquip hoses and Parker fittings with extreme durability, highest temperature and pressure ratings

Race-Proven Engineering:

• Precision bore and hone shock tubes to size within +/- .001 for tight piston seal and optimized valving function
• Cold drawn 2024 billet aluminum piston with advanced fluid dynamics port designs
• Viton seals to endure sustained high temperatures and carbon composite wiper seal requiring special diamond tooling
• Stainless alloy heat-treated valve shims that remain stable at high temperatures for consistent damping
• Large diameter shock shafts case hardened to 60-65 Rockwell scale, micro-polished to 3 RMS mirror finish
• Replaceable Teflon-lined steel spherical bearings on both mounting ends

King Pure Race series coilover shocks have been highly refined in the most hostile racing conditions on the planet, with every aspect optimized for all-out racing to provide ultimate performance and uncompromising damping control. The Pure Race series features unique materials and design features to withstand blistering temperatures up to 450 degrees and the immense forces encountered by the fastest competition-only vehicles.
