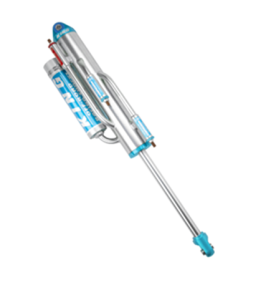

King PR3018-BP4H-C Performance Race Bypass Shock Stroke - 3.0 4-Tube 18

The King PR3018-BP4H-C is a 3.0-inch Performance Race series bypass shock featuring 4 external bypass tubes with hose-connected remote reservoir and 18 inches of travel. This custom-configured shock delivers position-sensitive damping control for high-performance off-road applications where precise suspension tuning is critical.

Key Features:

• 3.0-inch bore diameter with 18-inch stroke length
• 4 external bypass tubes with independent compression and rebound adjustment
• Hose-connected remote reservoir for flexible mounting options
• Position-sensitive damping provides stage-specific control throughout travel range
• Bypass valves and springs constructed from heat-treated stainless steel alloy
• Precision-honed shock tubes with CNC-drilled and hand-deburred bypass ports
• Each bypass stage operates independently with approximately 14 turns of adjustment
• Custom configuration designed for specific application requirements

King's Performance Race bypass shocks utilize proven technology refined over years of racing development. The bypass design allows complete control of high-speed and low-speed oscillations through position-sensitive damping, with bypass tube quantity and location customizable to your application. Hand-built in the USA from aircraft-grade aluminum for superior durability and heat dissipation.
