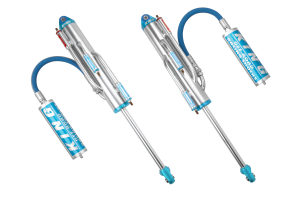

King PR3014-BP3H-2 3.0 Performance Race Bypass Shock 3-Tube Remote Reservoir 14 Inch Stroke

The King PR3014-BP3H-2 represents the culmination of bypass shock technology refinement dating back over a decade, delivering position-sensitive damping control for extreme off-road applications. This 3.0-inch diameter Performance Race bypass shock features a 14-inch stroke, 23-inch compressed length, and 37-inch extended length, with a remote hose reservoir style and 150 PSI gas pressure.

Key Features:

• 3.0-inch diameter shock body with Style 2 configuration
• 14-inch stroke travel (23-inch compressed, 37-inch extended)
• 3-tube bypass design with 2 compression tubes and 1 rebound tube for position-sensitive damping
• Remote hose reservoir with 150 PSI gas pressure
• Shock tubes honed after plating for tight piston seal, with CNC-drilled and hand-deburred bypass ports
• Bypass valve springs made from same material as valve shims to prevent heat-induced fade
• Steel, Teflon-lined spherical bearings for smooth articulation and extended life
• Made in the USA

King's configuration-specific bypass designs provide complete control of high-speed and low-speed oscillations through position-sensitive damping. The bypass valve design and superior tube flow capacity deliver accurate flow control over the entire range of adjustment, resulting in enhanced vehicle control, reduced driver fatigue, and sustained peak performance.
