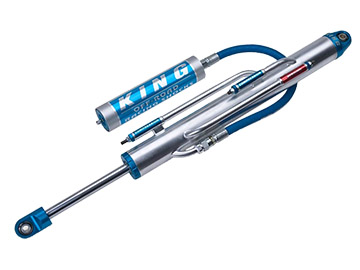

King PR3008-BP3H-2 3.0 Performance Race Series 3-Tube Bypass Shock Remote Reservoir Style 2 8in Stroke

The King PR3008-BP3H-2 is a high-performance 3.0-inch diameter bypass shock designed for serious off-road racing and pre-runner applications. This Performance Race Series shock features three external bypass tubes with Style 2 configuration and a remote hose reservoir, delivering 8 inches of stroke for exceptional suspension travel and control.

Key Features:

• 3.0-inch body diameter with 7/8-inch piston rod for maximum strength and durability
• Three external bypass tubes provide position-sensitive damping for optimal control through the entire stroke range
• Remote hose reservoir design separates the reservoir from the shock body for flexible mounting and improved heat dissipation
• Style 2 bypass tube configuration optimized for specific suspension geometries
• Compressed length: 17 inches, Extended length: 25 inches
• Gas pressure: 150 PSI for consistent performance
• Precision-honed shock body maintains +/- 0.001-inch tolerance for consistent damping
• CNC-machined, hand-deburred and polished bypass ports ensure smooth, accurate flow control
• 17-4 stainless steel bypass springs resist heat-induced fade across extreme temperature ranges
• High-carbon steel piston rod with urethane wiper seals and Buna main seals
• Cadmium finish for corrosion resistance
• Externally adjustable bypass valves allow fine-tuning without disassembly

King's Performance Race bypass shocks utilize position-sensitive damping technology to deliver progressive compression and rebound control. The three-tube bypass design allows fluid to flow around the main piston through external circuits at specific points in the stroke, creating a damping curve that's soft and compliant during small suspension movements while providing firm control during high-speed compression. This eliminates harshness over bumps and whoops while maintaining the high-speed control needed for aggressive off-road driving.

Built with precision manufacturing techniques and premium materials, this shock is ideal for pre-runners, desert race trucks, rock crawlers, and other demanding off-road applications where superior suspension performance is critical.
