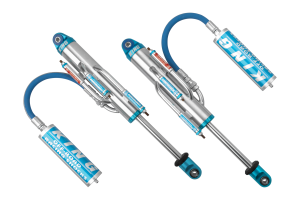

King PR2516-BP2H-2 Performance Race 2.5 Inch Bypass Shock 16 Inch Stroke Remote Reservoir

The King PR2516-BP2H-2 is a high-performance 2.5-inch diameter bypass shock engineered for serious off-road and racing applications. This Performance Race Series shock features a 2-tube bypass design with remote hose reservoir (Style 2 configuration), providing position-sensitive damping control for superior handling across the full 16-inch stroke range.

Key Specifications:

• Shock body diameter: 2.5 inches
• Stroke length: 16 inches
• Compressed length: 26.0 inches
• Extended length: 42.0 inches
• Gas pressure: 150 PSI
• Mounting: 1/2 inch x 1.50 inch
• Reservoir type: Remote hose reservoir
• Bypass configuration: 2-tube bypass (Style 2)

Advanced Bypass Technology:

• Position-sensitive damping controls high-speed and low-speed oscillations independently
• Precision CNC-drilled bypass ports are hand deburred and polished for optimal flow control
• Bypass valve springs constructed from the same material as valve shims to prevent heat-induced fade
• Shock tubes are honed after plating to ensure tight piston seals and consistent performance
• Superior tube flow capacity provides accurate adjustment across the full range

Quality Construction:

• Hand-built in the USA from aircraft-grade aluminum
• Precision damping with oversized components for fade-free performance
• Superior heat dissipation for sustained peak performance
• Fully serviceable and rebuildable design
• Tunable valving to match specific application requirements

Designed for pre-runner trucks, off-road race vehicles, and extreme terrain applications, this bypass shock delivers enhanced vehicle control, reduced driver fatigue, and the ability to fine-tune suspension performance for varying conditions. The remote reservoir design allows for flexible mounting options while maintaining optimal shock performance.
