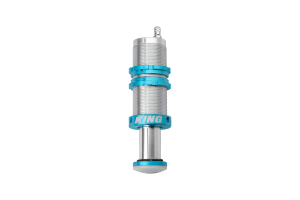

King BS2120 2.0 Compact Hydraulic Bump Stop 2 Inch Stroke

The King BS2120 is a high-performance 2.0 inch diameter hydraulic bump stop engineered to maximize suspension travel while protecting your vehicle's chassis, drivetrain, and suspension components from harsh bottoming impacts. Unlike factory rubber bump stops designed for emergency use only, this compact hydraulic bump stop is built for constant use and abuse in demanding off-road and racing applications.

Key Features:

• 2.0 inch shock body diameter with 2.0 inch stroke length for exceptional bottoming control
• Adjustable nitrogen pressure up to 400 PSI allows custom tuning for specific off-road applications
• Highly progressive damping curve prevents violent bottoming-out impacts
• Unique piston design delivers superior flow characteristics and massive compression forces
• Micro-polished shafts and advanced triple-stage seal technology rated to 3000 PSI
• Heat-treated stainless steel alloy valving for durability and longevity
• Compact threaded body design fits unique mounting locations where other bump stops cannot
• Honed and polished bores ensure smooth, consistent operation
• High-pressure Schrader valve with protective cover keeps dust and moisture out
• Long-wearing nylon contact pad for quiet operation
• Fully rebuildable and re-valvable for extended service life

Specifications:

• Compressed Length: 8.716 inches
• Extended Length: 10.699 inches
• Stroke: 2.0 inches
• Sold individually

Designed to reduce rear-end bucking sensation and harsh bottom-out experienced with factory rubber bump stops, the King BS2120 provides an additional level of bottoming control when using every bit of available suspension travel. Requires 4130 Chromoly threaded mounting sleeves (sold separately) for proper installation. Easily tuned and serviced with simple hand tools.
