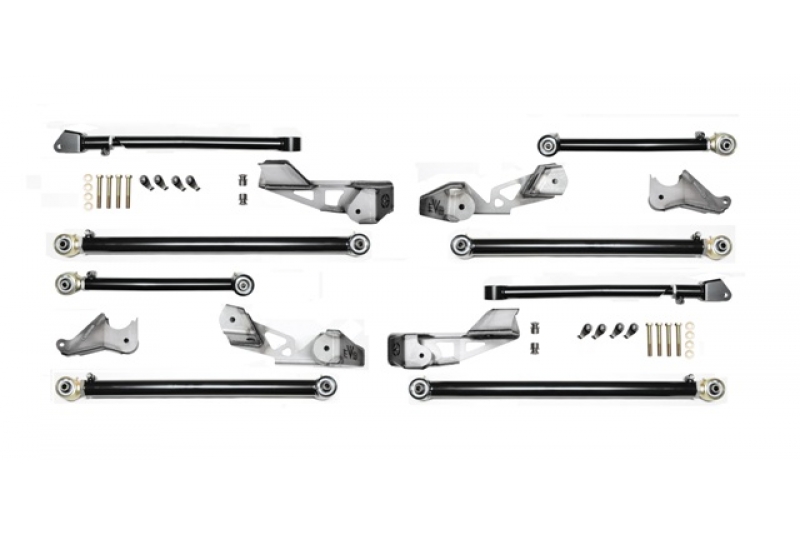

EVO Mfg EVO-3010 High Clearance Long Arm Upgrade Kit for Jeep Wrangler JL Unlimited 4-Door

The EVO MFG JLU High Clearance Long Arm upgrade kit features specifically designed bracketry that delivers ultimate suspension and chassis clearance, larger wheel travel ability, and optimal suspension geometry with increased ride quality. This upgrade kit allows you to convert your current short or mid-arm suspension to long arm by reusing existing suspension lift parts like coil springs, swaybar links, and bumpstop extensions, saving you the cost of repurchasing these components.

Advanced Clearance Design:

The front arms mount tucked up inside nearly flush with the bottom of the frame, mounting inches above the stock front lower mounting bracket. The rear mounting locations for the long arm are positioned on the side of the frame, above the bottom, providing inches of clearance over the factory locations. This design delivers an incredible ground clearance increase while retaining flat and optimal control arm angles for ideal ground clearance, smooth ride quality, and long travel ability.

Key Features:

• Lower long arms constructed from industry-leading 2.0 inch x .281 inch wall steel DOM tubing for maximum strength
• Johnny Joints on both ends of control arms for restriction-free articulation and motion with no wearable rubber
• EVO1 on-vehicle adjuster allows for alignment adjustments while control arms remain completely installed on the vehicle
• Mounting brackets require no exhaust cutting on 3.6L Jeep Wrangler JLUs (minor grind/clearance to flange required)
• Brackets align to frame using existing factory holes for complete assurance of proper locating during installation
• Full-length hard-face mounting surfaces that weld to frame provide redundant and ample welding area and strength

This upgrade kit can also be used in combination with EVO Front and Rear coilover kits to maximize your vehicle's on and off-road performance. Cutting and grinding of frame brackets required. Welding required. Compatible with 2018-2024 Jeep Wrangler JL Unlimited 4-Door models only.
