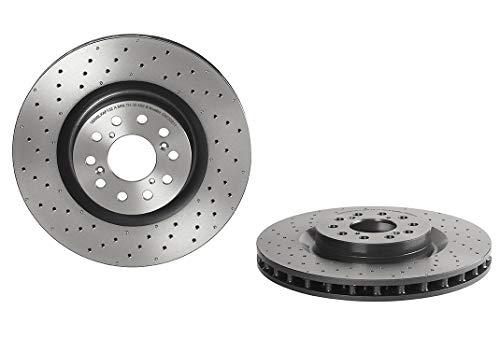

Brembo 09.C338.11 UV Coated Front Brake Rotor 350mm Cross-Drilled Vented

The Brembo 09.C338.11 is a premium UV coated front disc brake rotor engineered to meet or exceed OEM specifications. This high-performance rotor features a cross-drilled, vented design with a 350mm (13.78 inch) diameter, constructed from high-carbon cast iron for superior durability and performance.

Key Features:

• UV coating technology provides superior corrosion resistance and a clean, metallic appearance on the entire disc surface
• Pillar Venting Technology (PVT) enhances cooling potential and increases rotor resistance to cracking by more than 40%

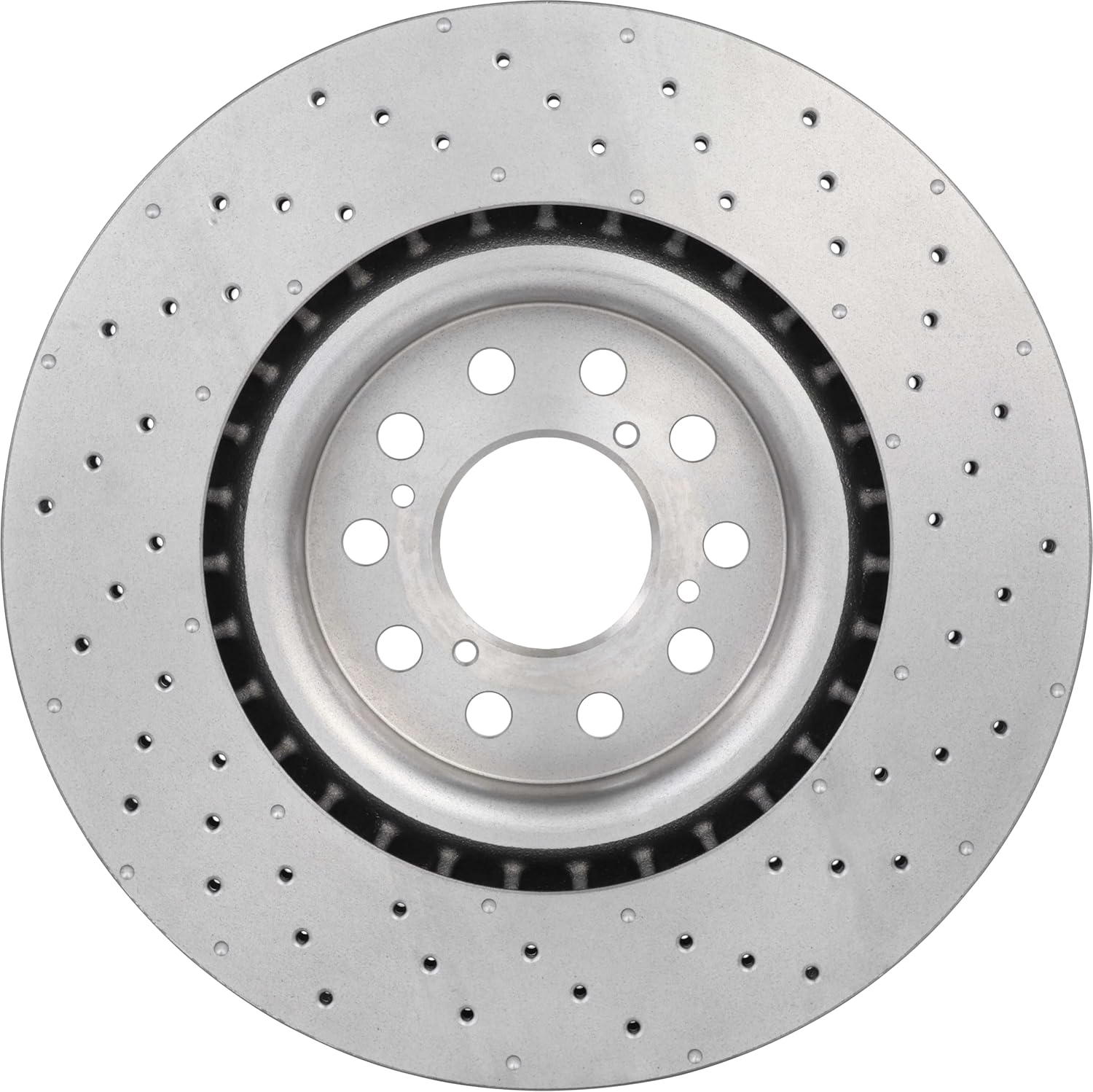

• Cross-drilled surface design optimizes heat dissipation and brake performance
• High-carbon cast iron construction minimizes noise and vibration for enhanced driving comfort
• Environmentally friendly, solvent-free coating protects braking plate surfaces
• Includes complete fixing screw kit with all necessary hardware for worry-free installation

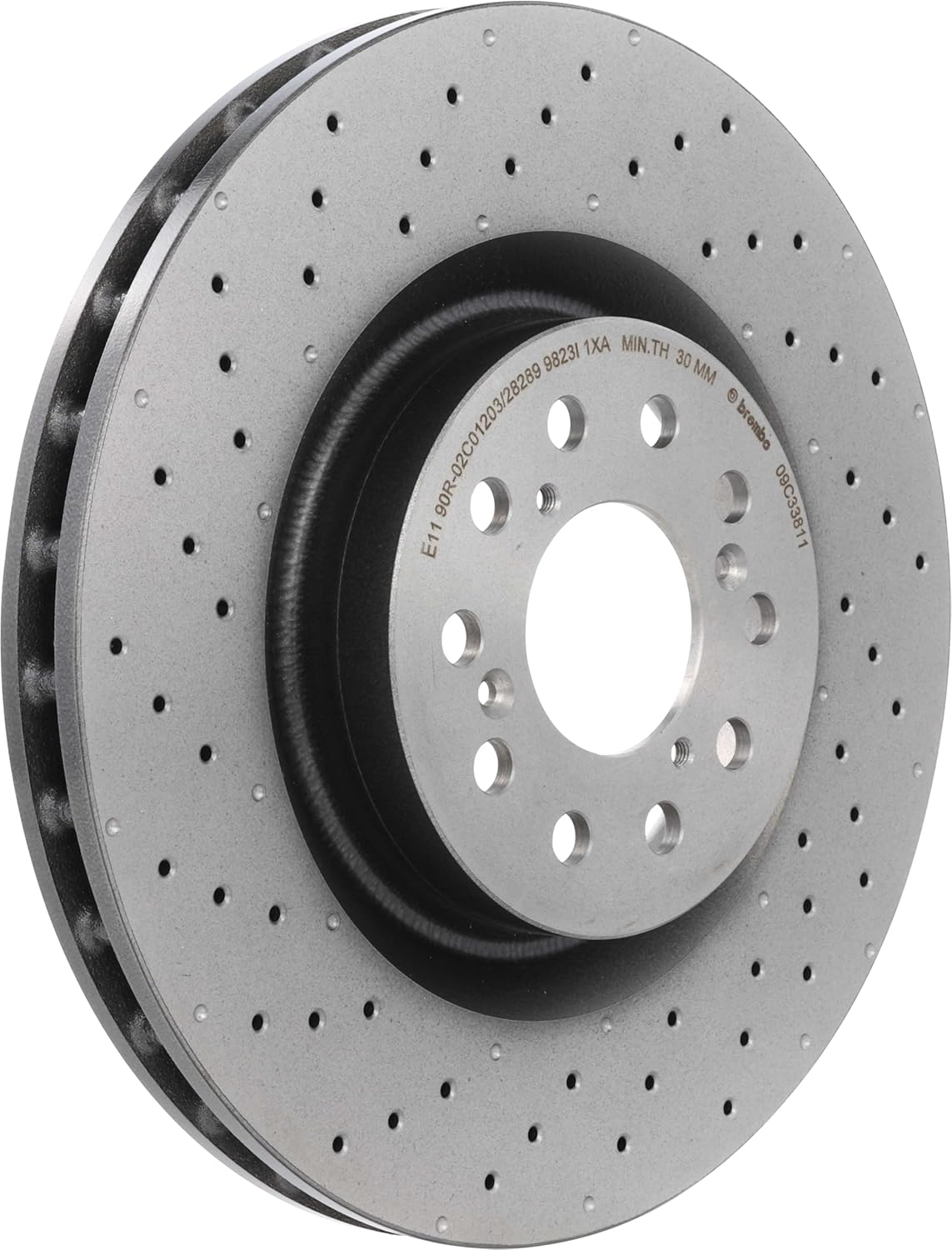

• Intelligent marking location displays part number and minimum thickness for easy reference

Specifications:

• Outside Diameter: 350mm (13.78 inches)
• Nominal Thickness: 32mm
• Minimum/Discard Thickness: 30mm
• Center Hole Diameter: 70mm (2.76 inches)
• Overall Height: 55mm (2.17 inches)

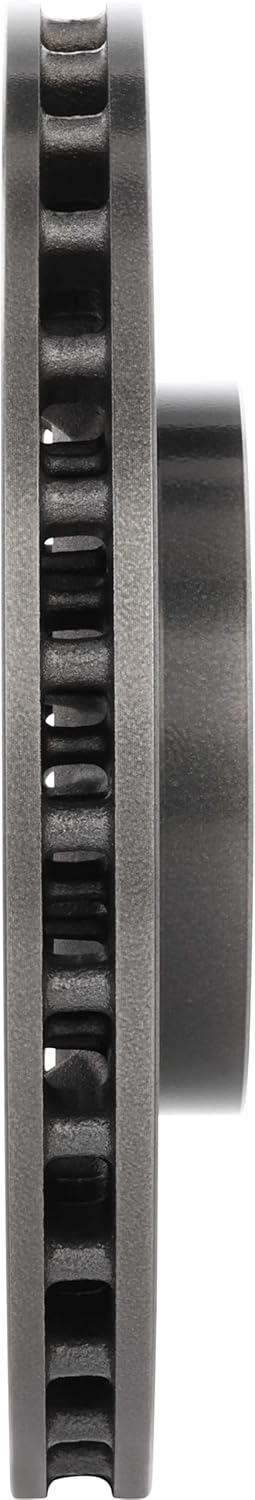

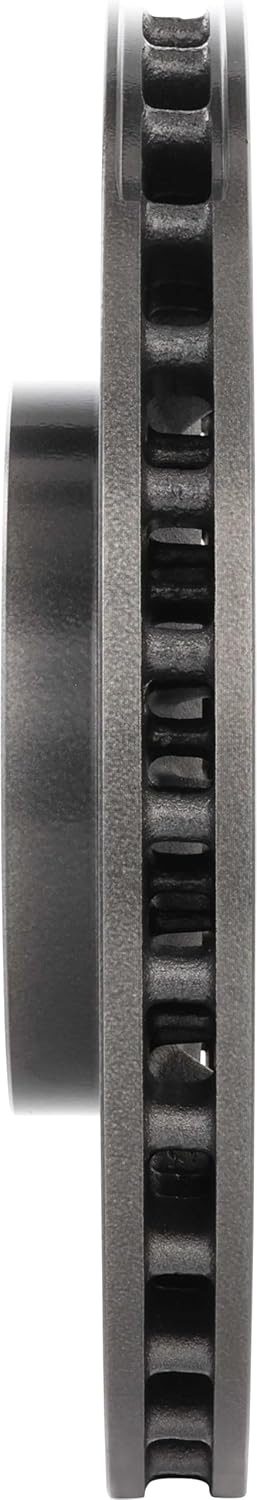

• Construction: Vented with pillar venting technology
• Number of Bolt Holes: 5
• OE Replacement Number: 45251TV8E02

This rotor is designed as a direct-fit replacement part suitable for street use with stock calipers. For optimal braking performance, Brembo recommends replacing rotors and pads together and pairing with Brembo NAO, Ceramic, or Low-Met brake pad formulations.
