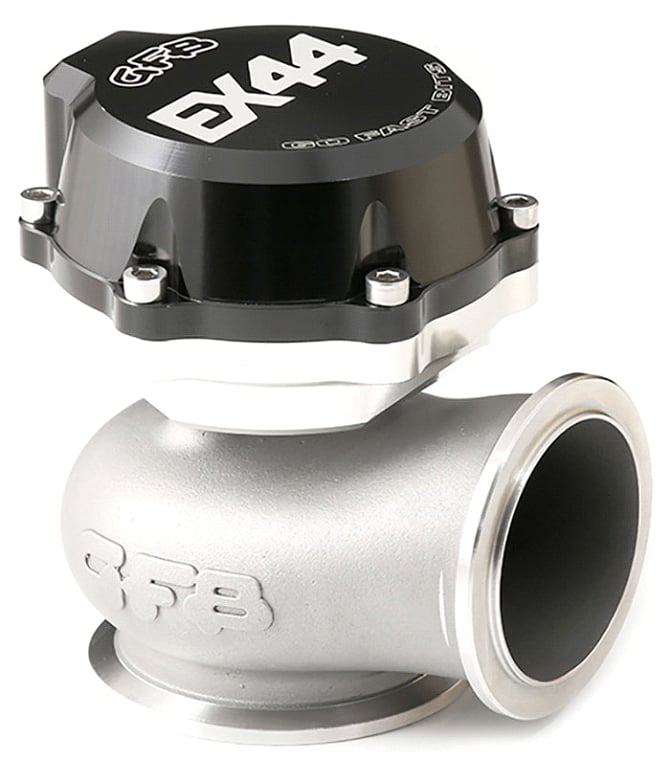

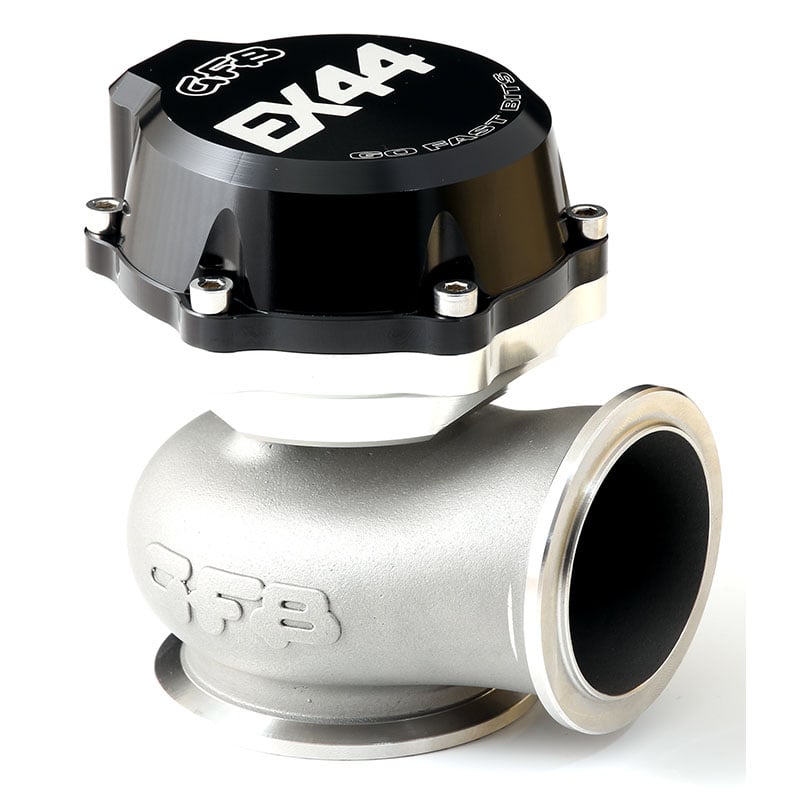

GFB 7002 EX44 44mm V-Band External Wastegate

The GFB 7002 EX44 is a high-performance 44mm external wastegate designed for turbocharged applications requiring precise boost control and exceptional durability. This compact wastegate delivers maximum flow in a space-saving design, making it ideal for tight engine bay installations without sacrificing performance.

Premium Construction:

• Investment cast body made from 253MA chromium-nickel stainless steel for extreme heat resistance
• CNC machined billet stainless steel valve for precise sealing and long-term reliability
• Nomex-reinforced silicone diaphragm engineered to withstand high boost and exhaust temperatures
• Actuator housing CNC machined from billet 6061-T6 aluminum
• All mounting hardware and weld-on fittings manufactured from high-temperature stainless steel
• Internal shroud protects valve stem from excessive heat and prevents carbon buildup

Key Features:

• 44mm valve diameter provides excellent flow characteristics
• V-Band inlet and outlet design for secure, leak-free mounting
• 100mm (3.94 inches) overall height - among the most compact in its class
• Compatible with TiAL MV-R flanges for easy retrofitting
• Includes 10 PSI outer spring and 5 PSI inner spring
• Springs can be used separately or combined for base boost pressures of 5, 10, or 15 PSI
• Optional 7 PSI middle spring available separately (sold separately)
• Multiple spring combinations allow boost pressures from 5 to 22 PSI
• 1/8" BSP boost port threads for standard hose connections

What's Included:

• EX44 wastegate body and actuator assembly
• V-Band inlet and outlet weld-on fittings
• V-Band clamps for secure mounting
• 10 PSI and 5 PSI springs pre-installed
• Valve seat and all necessary mounting hardware

The GFB 7002 is engineered for both street and track applications, offering the performance and reliability that Go Fast Bits is known for. Manufactured in Australia under ISO 9001 quality standards and backed by GFB's lifetime warranty for the original owner.
