Pacific Performance Engineering 128052000 Heavy-Duty Standard Profile Cast Aluminum Allison Transmission Pan Raw Finish

Manufacturer

Part Number

128052000
Sale Price

$217.33

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

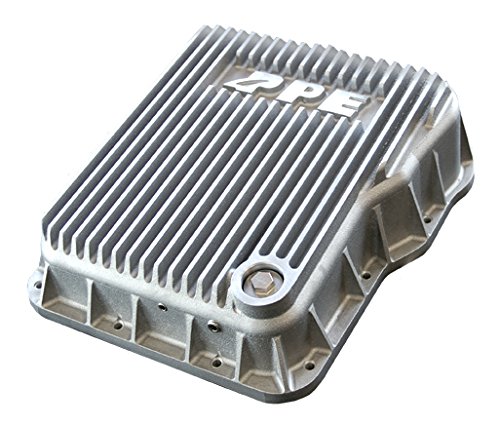

The PPE 128052000 Heavy-Duty Standard Profile Cast Aluminum Transmission Pan is a direct-fit upgrade over the factory stamped steel pan for GM trucks equipped with the Allison 1000, 2000, or 2400 series automatic transmission. Designed to maintain stock fluid capacity while significantly improving thermal management and structural durability, this pan is an ideal choice for trucks that need to stay cool without increasing ground clearance requirements.

Key Features:

  • Premium A356.0-T6 heat-treated cast aluminum alloy — a high-strength, thermally conductive material that outperforms the A380 alloy (pot metal) used in competing products
  • Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
  • 3/4-inch external cooling fins improve heat dissipation, reduce transmission fluid temperature, and increase impact resistance against road debris
  • Cast-in gussets provide additional transmission housing flange support and increased overall rigidity
  • 304 stainless steel drain plug equipped with a high-temperature-rated neodymium magnet and reusable Viton O-ring — captures harmful ferrous metal particles before they circulate through the transmission
  • 1/8-inch and 1/4-inch NPT threaded ports with pre-installed plugs, ready for aftermarket temperature gauge sensors
  • Raw (unfinished) aluminum finish — can be painted or left natural
  • Retains the original Allison pan gasket — no special gasket required
  • Stainless steel Allen-head mounting hardware included

OEM Reference Part Numbers: GM 29536525, GM 24233099

The stock transmission pan's thin sheet metal construction offers minimal protection from road impacts and limited heat dissipation. Excessive heat causes transmission fluid viscosity to drop, weakening the lubricating film on gears and bearings and accelerating wear. The PPE standard profile pan's finned aluminum construction wicks heat away efficiently while keeping the pan depth the same as stock — making it an ideal fit for lowered applications or anywhere ground clearance is a priority. Installation requires no drilling and uses existing mounting points. Final torque spec is 8–10 ft-lbs in a crossing pattern. Backed by PPE's limited lifetime warranty on cast aluminum products.

Products specifications

Title

PPE Trans Pan - Standard Depth - GM Allison 1000 & 2000 Series - Raw
