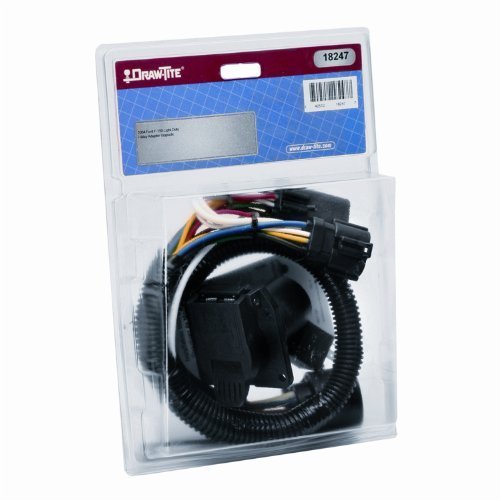

Draw-Tite 118247 Tow Package Wiring Harness 7-Way Trailer Connector

Manufacturer

Part Number

118247
Sale Price

$100.72

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Draw-Tite 118247 is a tow package vehicle wiring harness designed specifically for 2004 Ford F-150 trucks (new body style) equipped with a factory OEM 4-flat trailer connector. This connector plugs inline with your existing trailer connector, allowing you to retain the function of your existing 4-pole while adding full 7-way RV-style trailer connector capability with necessary fuses and relays to activate the remainder of the tow package circuits.

Key Features:

  • T-One connector design requires no splicing of wires—simply locate your vehicle's wiring harness connector, unplug the connection, and insert the T-One Connector into the vehicle's harness
  • No special tools required for installation
  • Includes circuit protection for safety
  • Quick and easy plug-and-play installation
  • 4-flat harness remains functional after 7-way plug is installed
  • Includes relay for fuse box to power 12-volt accessory circuit

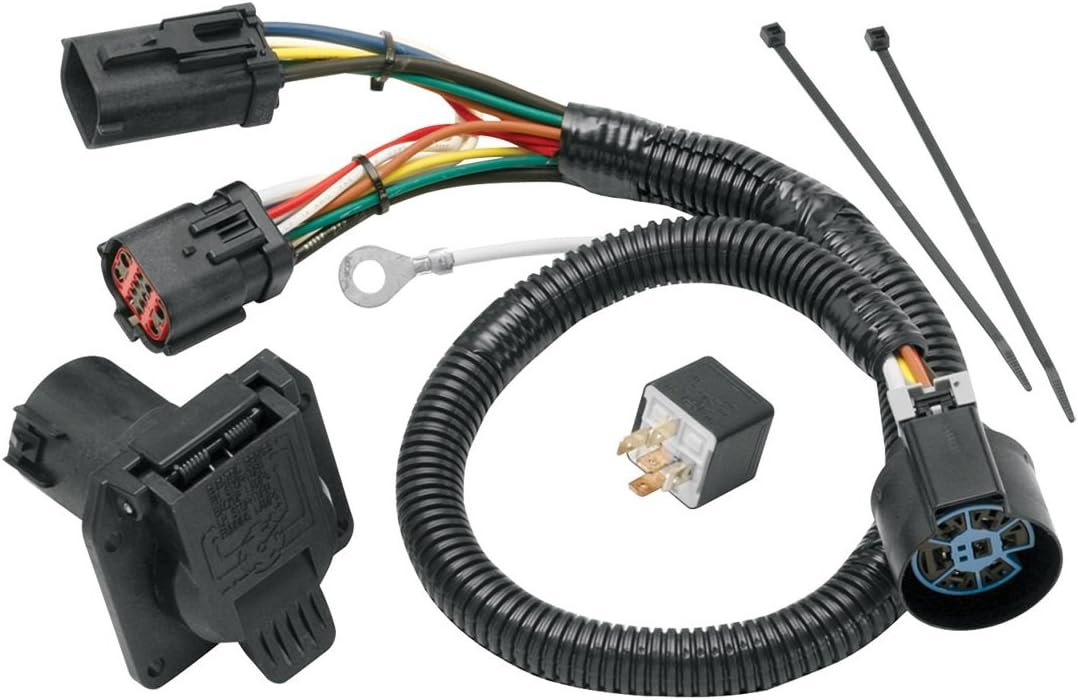

What's Included:

  • T-shaped wiring harness with vehicle connectors
  • 7-way RV-style trailer connector
  • Fuse panel relay for 12-volt power supply
  • Detailed vehicle-specific installation instructions

Installation Notes:

  • Vehicle must be equipped with a factory-installed 4-flat wiring harness to use this product
  • Compatible with 2004 Ford F-150 (new body style only, not Heritage models)
  • Harness connector location: driver's side frame rail
  • Mounting bracket part number PK12711U works with this harness (sold separately)
  • Designed to work with electric brake controllers for trailers equipped with electric brakes

This wiring harness provides a professional, factory-quality solution for upgrading your towing capabilities from basic 4-way lighting to full 7-way functionality, supporting auxiliary power, electric brakes, and reverse lights for comprehensive trailer connectivity.
