Zone Offroad N1 2" Adventure Series Suspension Lift Kit Nissan Titan XD 4WD

The Zone Offroad N1 is a complete 2-inch Adventure Series Suspension Lift Kit engineered specifically for the Nissan Titan XD. This system goes well beyond a simple leveling kit — it delivers a true 2-inch lift front and rear while correcting suspension geometry, ball joint angles, and steering for a confident, capable ride on and off the road.

At the heart of the kit are heavy-duty upper control arms (UCAs) constructed from fully welded, boxed 1/8" steel plate with CNC-machined ball joint and bushing cups. The repositioned ball joint maintains a neutral operating angle with 2–3 inches of lift, eliminating the ball joint binding common on stock control arms. The UCAs use OE-style rubber bushings and greaseable factory-style ball joints for quiet, reliable, low-maintenance operation.

Front lift is achieved with precision-engineered strut spacers that are pitched, offset, and rotated to ensure proper fitment with the factory strut — no strut disassembly required. Front sway bar relocation brackets and bump stop relocation brackets are included to maintain proper sway bar function and bump stop engagement at the new ride height. The rear uses a 2-inch block and U-bolt kit, and extended-length rear sway bar links are included to correct rear sway bar positioning.

This Adventure Series kit also addresses the Titan XD's known steering geometry flaw. Zone Offroad includes a CNC-machined solid steel replacement steering centerlink to drastically reduce excessive toe change through wheel travel — an issue that worsens when the truck is lifted — improving handling and reducing tire wear.

Key Specifications:

• Front Lift Height: 2 inches
• Rear Lift Height: 2 inches
• Front Lift Method: Strut Spacers
• Rear Lift Method: 2-inch Rear Lift Blocks
• Material: Steel Plate
• Finish: Powdercoat
• Max Tire Size: 275/60 (up to 32–34 inches)
• Compatible Wheel Size: 20x9, stock backspacing
• Cutting Required: No
• Accommodates Factory Wheels: Yes

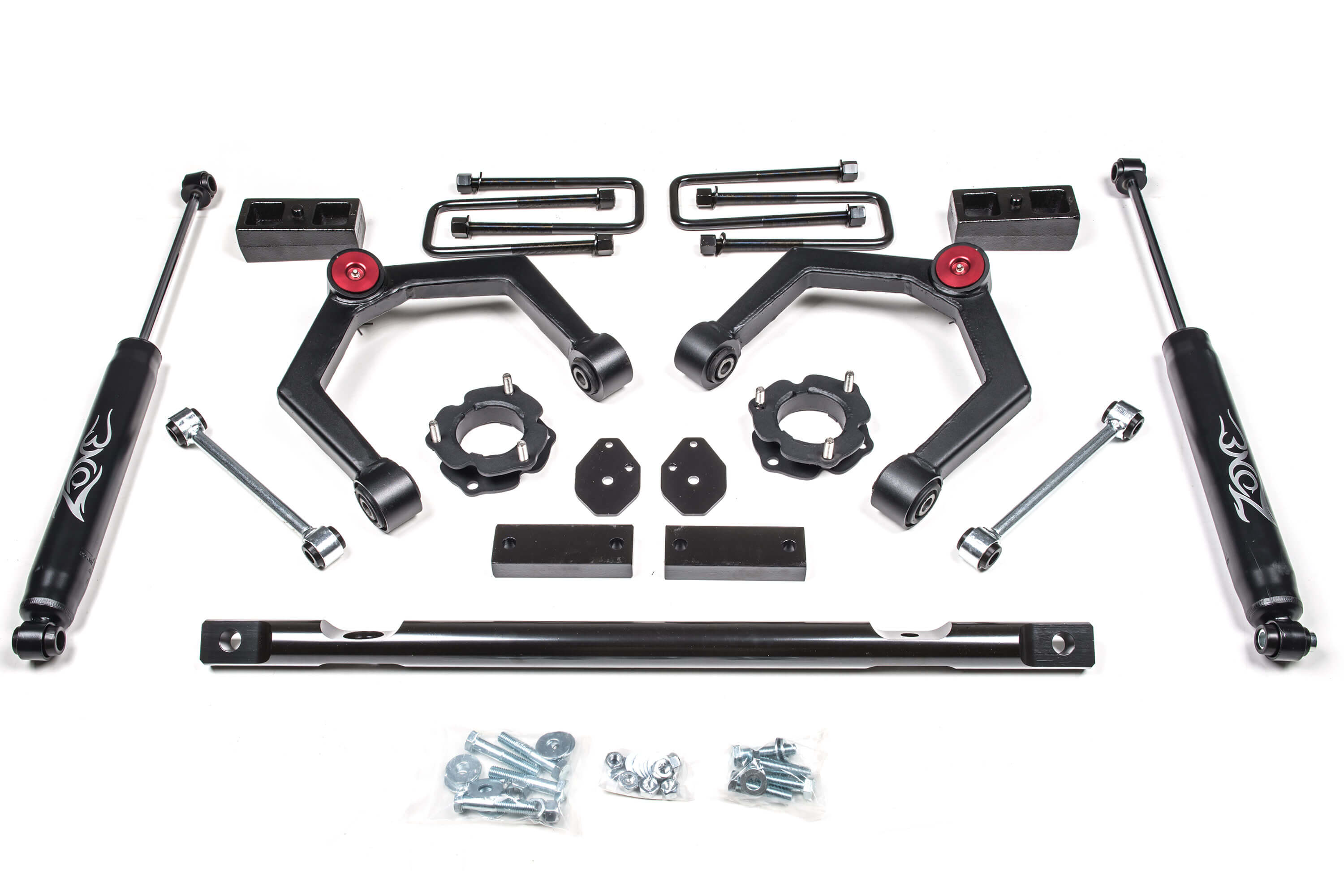

Kit Includes:

• Adventure Series Upper Control Arms (ZONN2200)
• Front Strut Spacer Box Kit (ZONN2201)
• Rear 2-inch Lift Block Kit (ZONN2209)
• Front Sway Bar Relocation Brackets
• Front Bump Stop Relocation Brackets
• Extended Rear Sway Bar Links
• HD Replacement Steering Centerlink

Note: This kit is compatible with XD models only. Due to payload options and initial ride height variances, the listed lift amount is a base figure — final ride height may vary. If installation is performed without a hoist, Zone Offroad recommends completing rear alterations first. A professional alignment is recommended after installation.

All Zone Offroad lift kits are backed by Factory Protection Plus — a 5-year/60,000-mile drivetrain warranty, ESC system compatibility, and a limited lifetime product warranty.
