FAST 146302B-KIT LSXR 102mm LS1/LS2/LS6 Intake Manifold and Throttle Body Kit

Manufacturer

Part Number

146302B-KIT
Sale Price

$1,559.95

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The FAST LSXR 102mm Intake Manifold and Big Mouth Throttle Body Kit delivers maximum airflow and performance gains for GM LS1, LS2, and LS6 cathedral port engines. This complete performance upgrade kit combines FAST's advanced polymer intake manifold technology with their precision-engineered billet aluminum throttle body for significant horsepower and throttle response improvements.

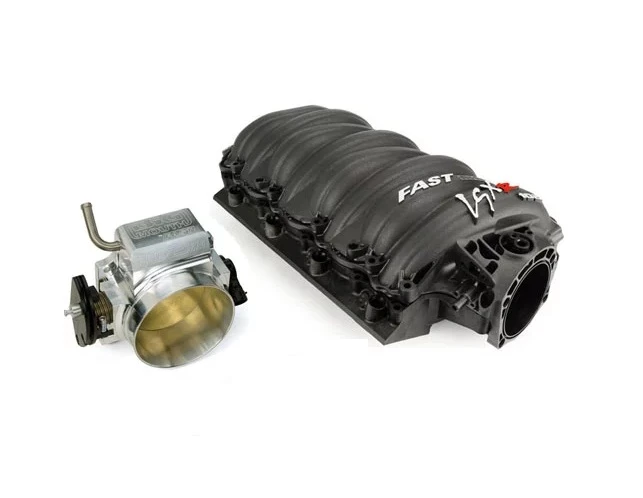

Kit Includes:

  • FAST 146302B LSXR 102mm intake manifold (3-piece modular design)
  • FAST 54103 Big Mouth 102mm billet throttle body with TPS and IAC
  • Throttle body mounting hardware

LSXR Intake Manifold Features:

  • Revolutionary 3-piece modular design allows fast disassembly and individual runner removal for porting
  • Advanced polymer construction offers lighter weight, increased strength, and superior heat dissipation compared to aluminum intakes
  • 102mm air inlet perfectly matched to Big Mouth throttle body (also compatible with 90mm or 92mm throttle bodies)
  • Integrated nitrous bungs for nitrous system installations
  • Perfect bolt-on fitment maintains factory accessory compatibility without modifications
  • Optimal RPM range: 1800-6000

Big Mouth Throttle Body Features:

  • Precision CNC-machined billet aluminum construction
  • 102mm bore diameter maximizes airflow potential
  • Increased throttle blade thickness eliminates deflection in boosted applications
  • Offset blade pivot design improves throttle response
  • Dual throttle spring mechanism ensures total throttle control
  • Cable-driven design for Gen III and Gen IV LS engines
  • Includes Throttle Position Sensor (TPS) and Idle Air Control (IAC)

Application: Designed specifically for GM LS1, LS2, and LS6 engines with cathedral port cylinder heads. Compatible with car and truck applications.

Installation Notes: Manifold-to-cylinder head gaskets and intake port seals sold separately. Requires FAST billet fuel rails or OEM LS2 fuel rails. Not CARB legal for use on emissions-controlled vehicles in California.

Products specifications

Fitment

LS1/LS2/LS6 Cathedral Port Car and Truck Engines

Throttle Body Bore

102

Replacement Upper Shell Part Number

146000B

Replacement Lower Shell Part Number

146301

Throttle Body Style

Cable Driven

Includes Fuel Injectors?

No

Includes Fuel Rails?

No

Includes Manifold to Cylinder Head Gaskets?

No

Manifold Material

Polymer

Includes Throttle Body to Manifold Hardware?

Yes

Includes Throttle Body?

Yes
