FAST 146202B-KIT LSXr 102mm LS7 Intake Manifold & Big Mouth Billet Throttle Body Kit

Manufacturer

Part Number

146202B-KIT
Sale Price

$1,527.95

Estimated ship date Saturday, November 28

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

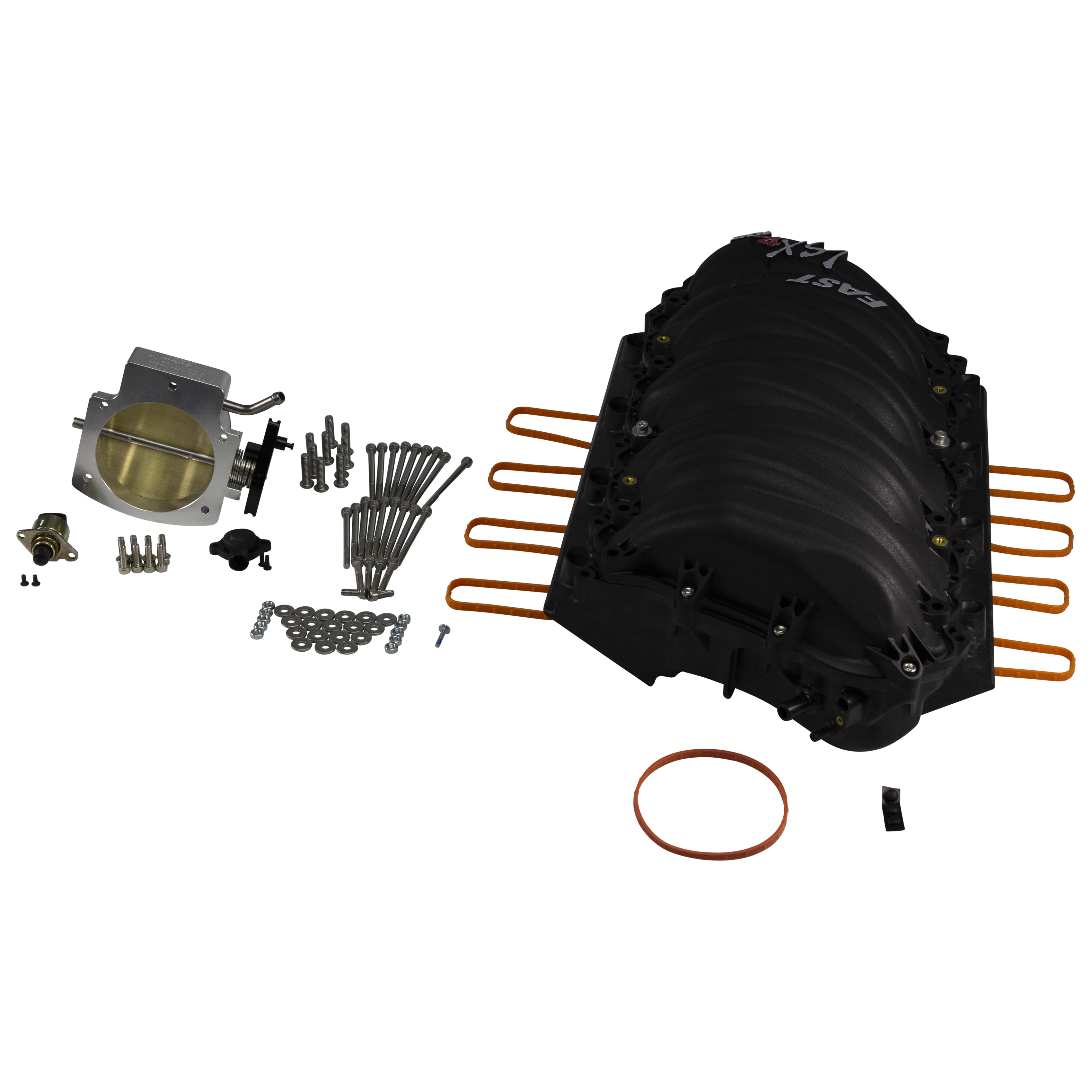

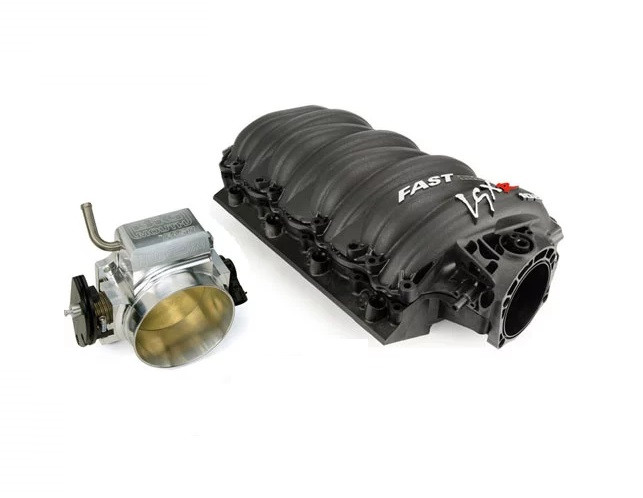

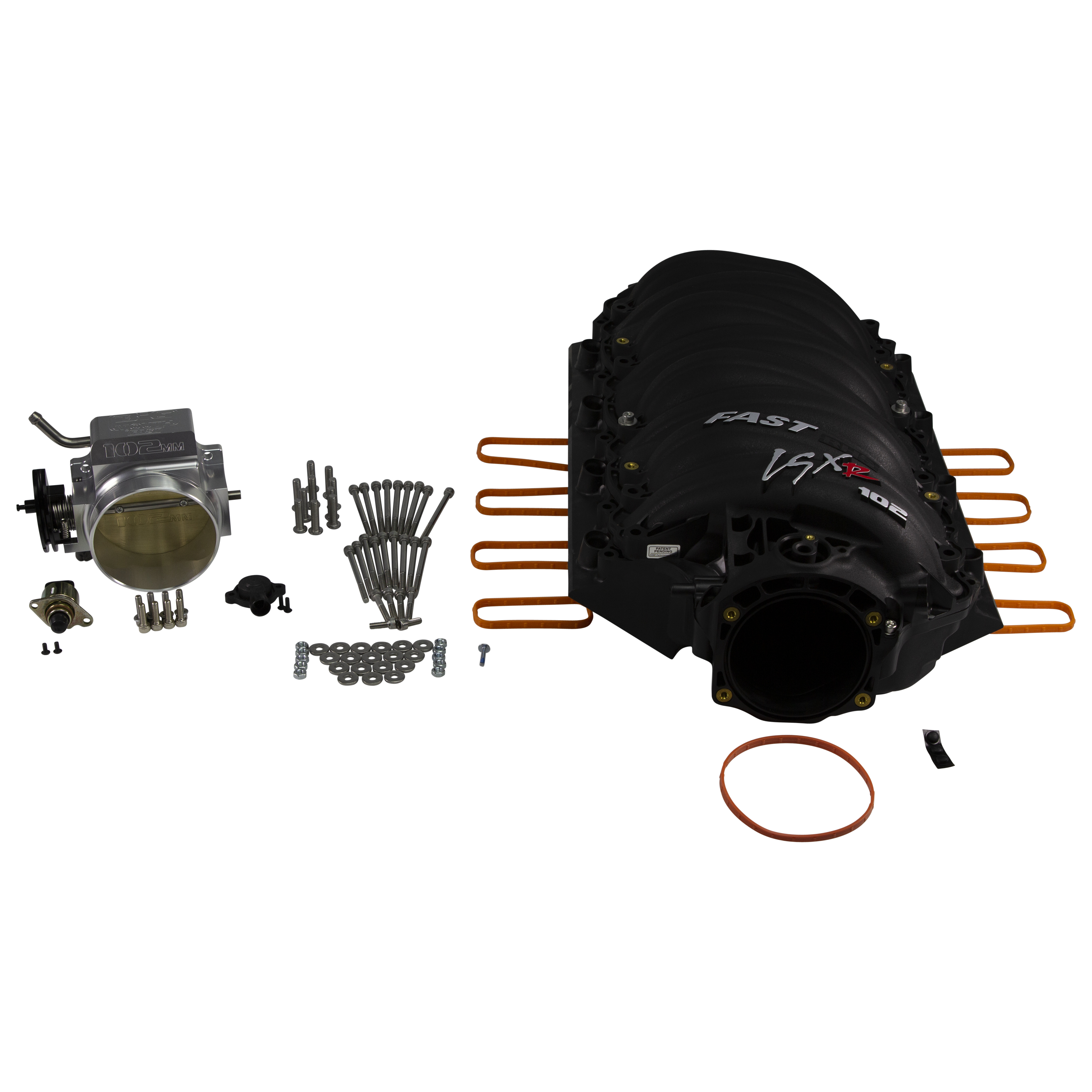

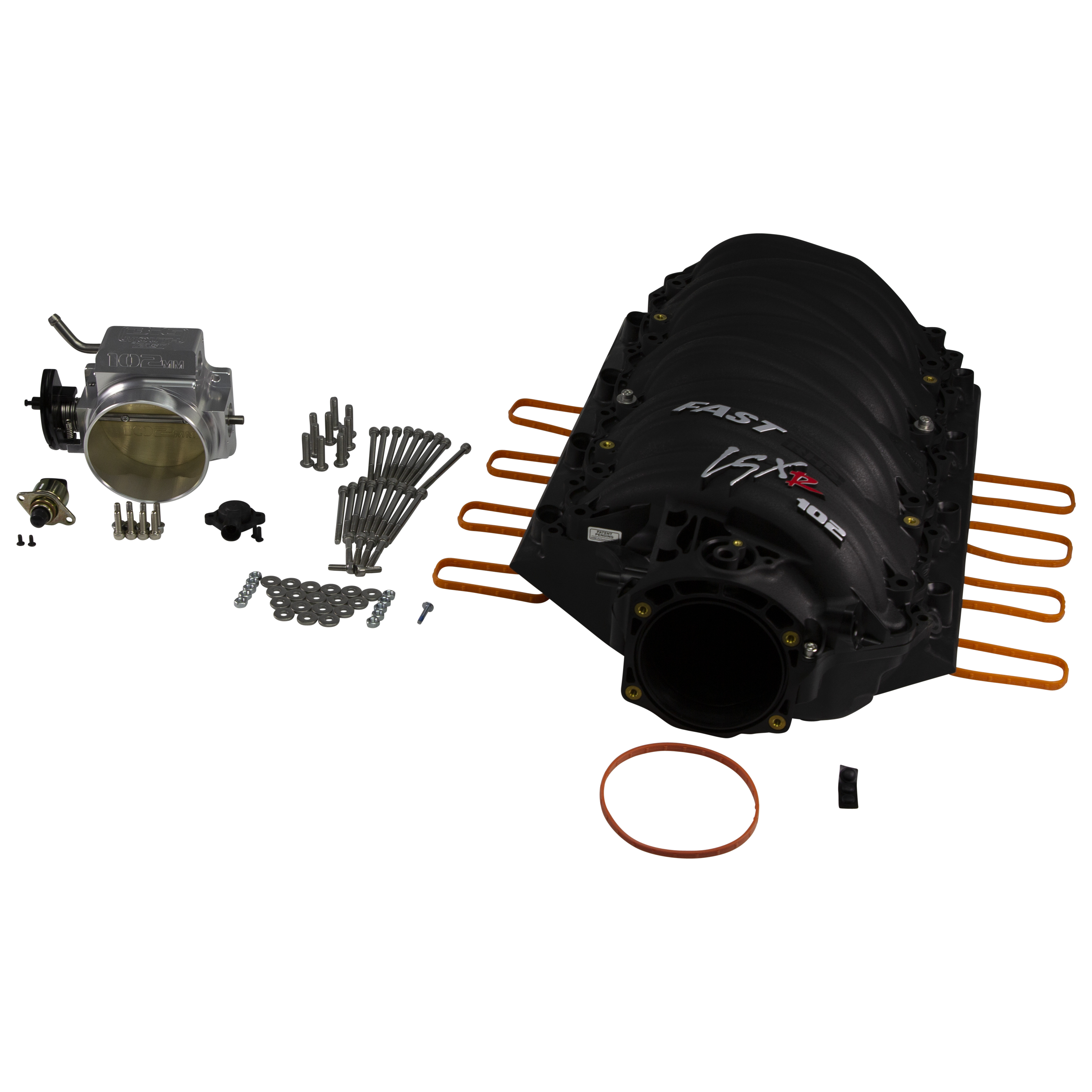

The FAST 146202B-KIT bundles the FAST LSXr 102mm LS7 Intake Manifold (146202B) with the FAST Big Mouth 102mm Billet Throttle Body (54103) into a single performance upgrade kit for GM LS7 rectangular-port engines. Developed in partnership with airflow specialists at Racing Head Service (RHS), this combination delivers a significant increase in horsepower and torque over the factory intake system.

LSXr 102mm LS7 Intake Manifold (FAST 146202B):

  • Engineered specifically for GM LS7 raised rectangular-port cylinder heads
  • Three-piece modular polymer construction allows fast disassembly and individual runner removal for porting
  • Advanced polymer material provides lighter weight, increased strength, and superior heat dissipation compared to aluminum aftermarket intakes — reducing heat soak
  • Longer, less restrictive runner design maximizes power output across the RPM range
  • 102mm throttle body inlet is optimized for the included Big Mouth throttle body, but also compatible with 90mm and 92mm throttle bodies
  • Integrated nitrous oxide bungs included
  • Bolt-on fitment allows use of factory accessories without modification or clearance concerns
  • Includes stainless steel bolts, threaded insert throttle body mounts, and all necessary mounting hardware

Big Mouth 102mm Billet Throttle Body (FAST 54103):

  • Machined from billet aluminum for precision fit and long-term durability
  • Enlarged 102mm throttle opening increases airflow to support higher horsepower builds
  • Thickened throttle blade eliminates blade deflection — critical in boosted applications
  • Smooth offset blade pivot improves throttle response at all operating conditions
  • Heavy-duty linkage with dual throttle return spring mechanism ensures positive throttle control and safety
  • Includes pre-installed TPS (Throttle Position Sensor) and IAC (Idle Air Control) for direct bolt-on installation
  • Compatible with GM Gen III and Gen IV cable-driven throttle body applications

Together, the LSXr manifold and Big Mouth throttle body form a highly complementary performance package. Testing on a modified LS7 engine demonstrated gains of 31.3 horsepower and 26.6 ft-lbs of torque at the flywheel over the stock intake manifold. This kit is an ideal solution for LS7 engine builds looking to maximize the return on cylinder head, cam, and other supporting upgrades.

Note: Not legal for sale or use in emissions-controlled vehicles in the state of California.

Products specifications

Fitment

LS7 Raised Rectangle Port Car Engines

Throttle Body Bore

102

Replacement Upper Shell Part Number

146000B

Replacement Lower Shell Part Number

146201

Throttle Body Style

Cable Driven

Includes Fuel Injectors?

No

Includes Fuel Rails?

No

Manifold Material

Polymer

Includes Manifold to Cylinder Head Gaskets?

Yes

Includes Throttle Body to Manifold Hardware?

Yes

Includes Throttle Body?

Yes

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

Title

LSXr 102mm LS7 Intake Manifold + 102mm Big Mouth Billet Throttle Body Kit
