MSD 85824 Pro-Billet Crab Cap Distributor for Ford 289-302 Small Block

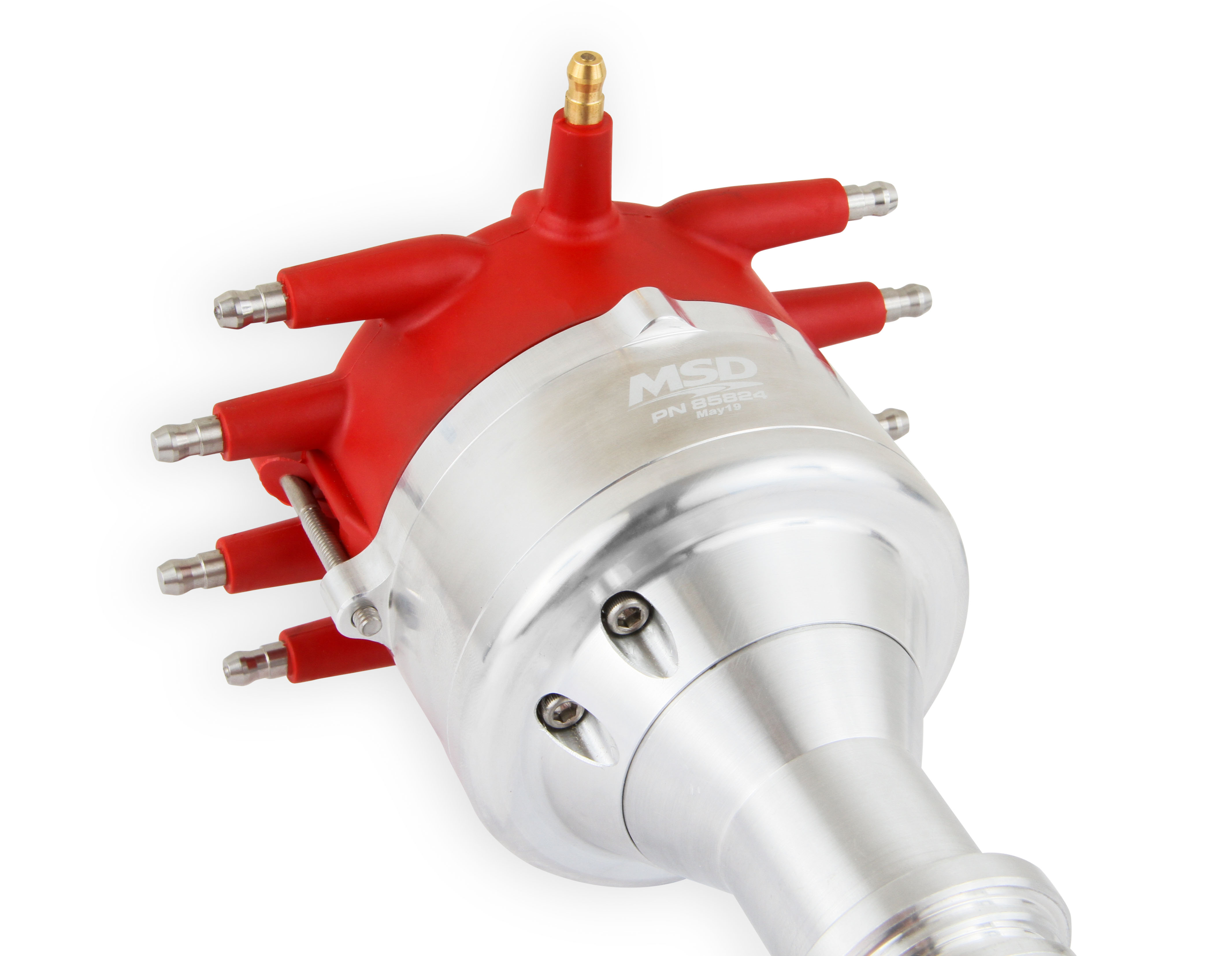

The MSD 85824 Pro-Billet Crab Cap Distributor is purpose-built for Ford 289 and 302 small block engines where underhood clearance is at a premium. The signature low-profile crab cap design routes spark plug wires horizontally out the side of the cap, dramatically reducing overall distributor height — making it the ideal solution for engines equipped with blowers, supercharger snouts, large air cleaners, or any components that interfere with a standard distributor cap.

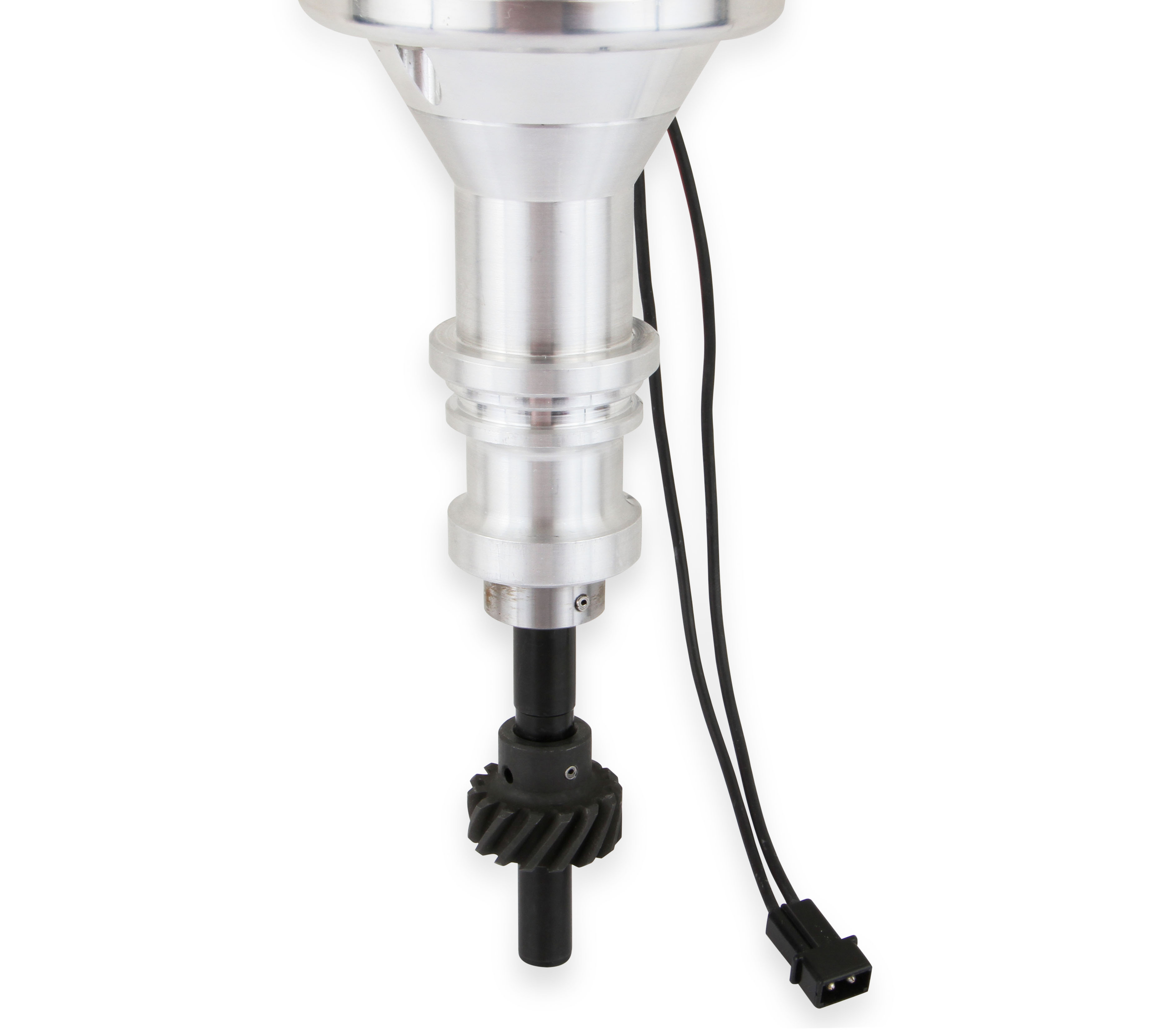

Built on the proven MSD Pro-Billet platform, this distributor features a CNC machined billet aluminum housing and base for precision fitment and long-term durability. The polished steel shaft is QPQ coated and rides in a sealed ball bearing for smooth, high-rpm stability. A maintenance-free magnetic pickup and precision reluctor deliver consistent, accurate trigger signals across the entire rpm range.

Key Features:

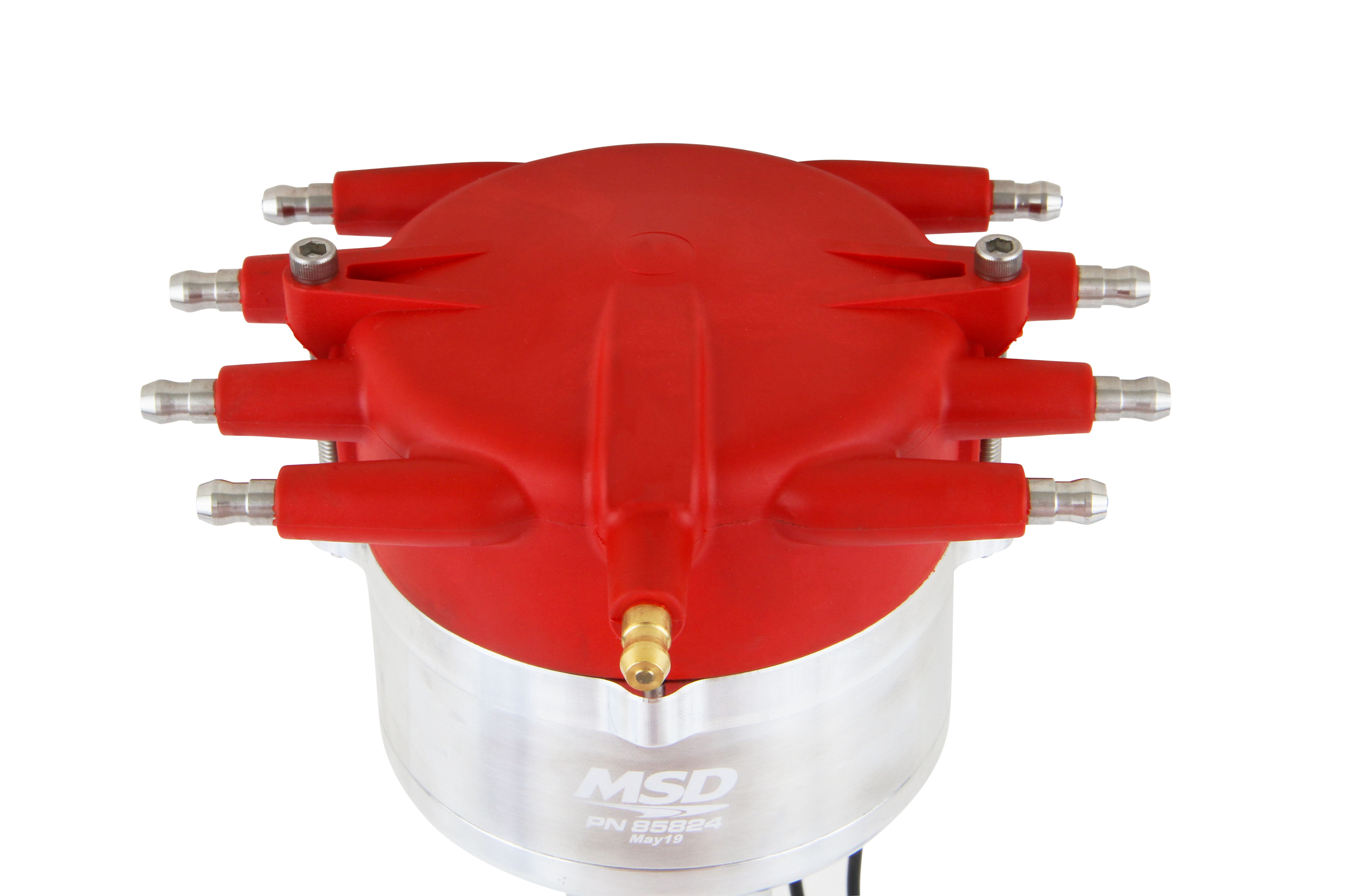

• Low-profile crab cap routes plug wires laterally for optimal underhood clearance
• CNC machined billet aluminum housing and billet aluminum base
• Polished steel shaft is QPQ coated and supported by a sealed ball bearing

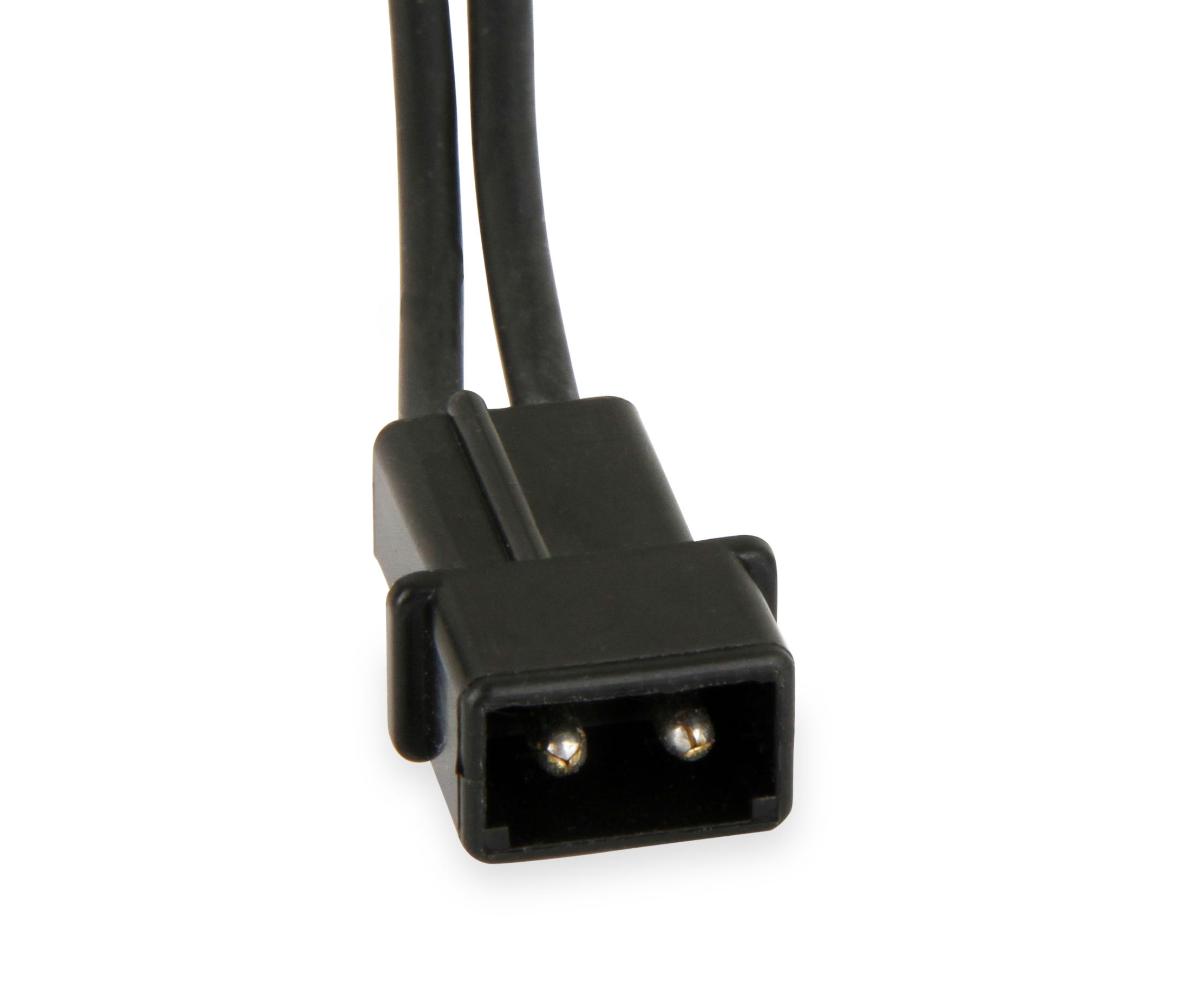

• Maintenance-free magnetic pickup and precision reluctor for stable trigger signals
• Advance plate and weights fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and TIG welded to the plate for added strength and durability
• Nylon pads ensure smooth operation of the advance weights

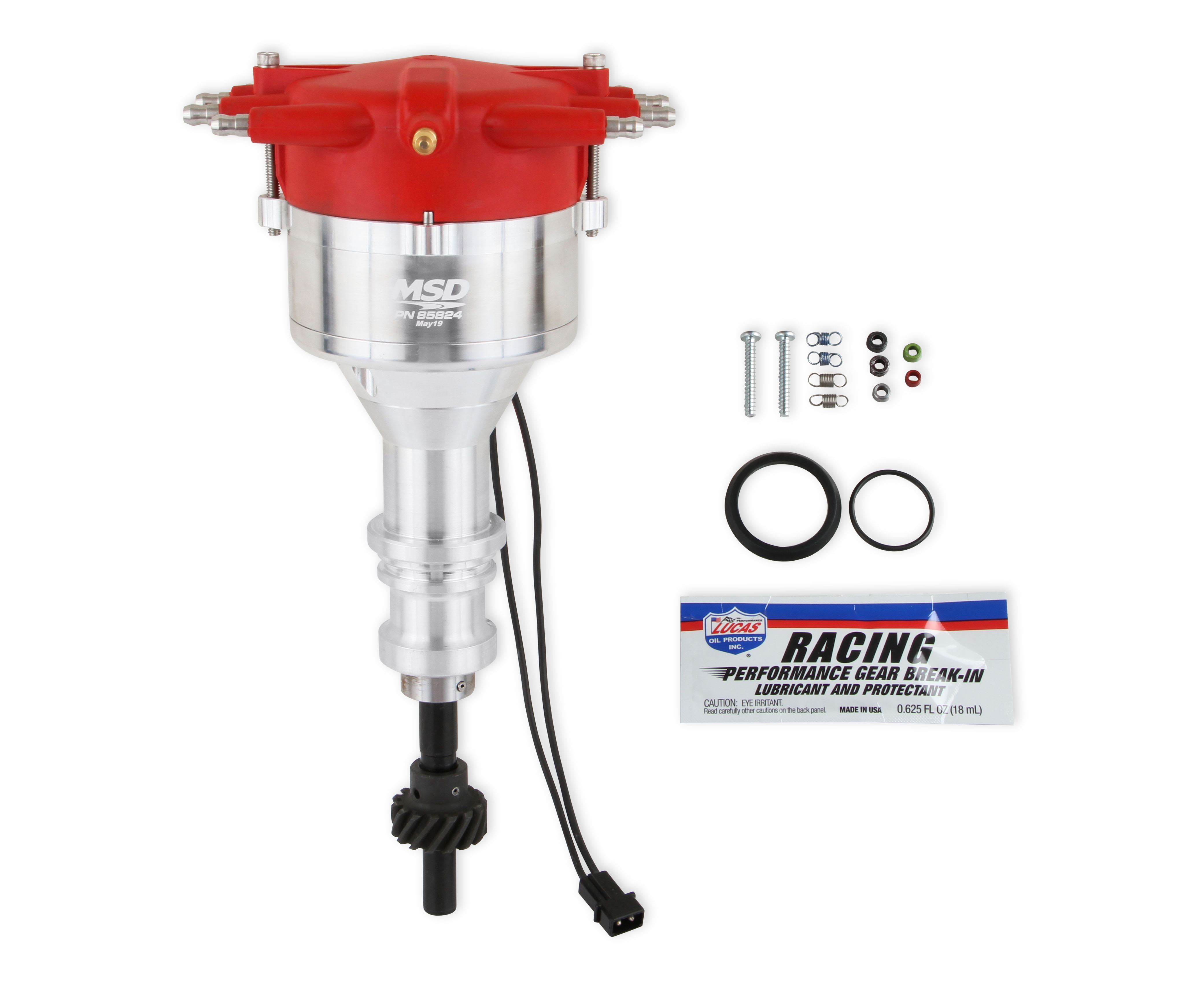

• Fully adjustable mechanical advance with supplied springs and stop bushings
• Mechanical advance assembly can be locked out for crank trigger system use
• Supplied with a steel distributor gear compatible with most hydraulic roller cam applications

Important Notes: This distributor must be used with an MSD ignition control (MSD 6, 7, or 8-series). Always consult your camshaft manufacturer for proper distributor gear recommendations for your specific application. This part is intended for uncontrolled (non-emissions controlled) vehicles and closed-course racing use.
