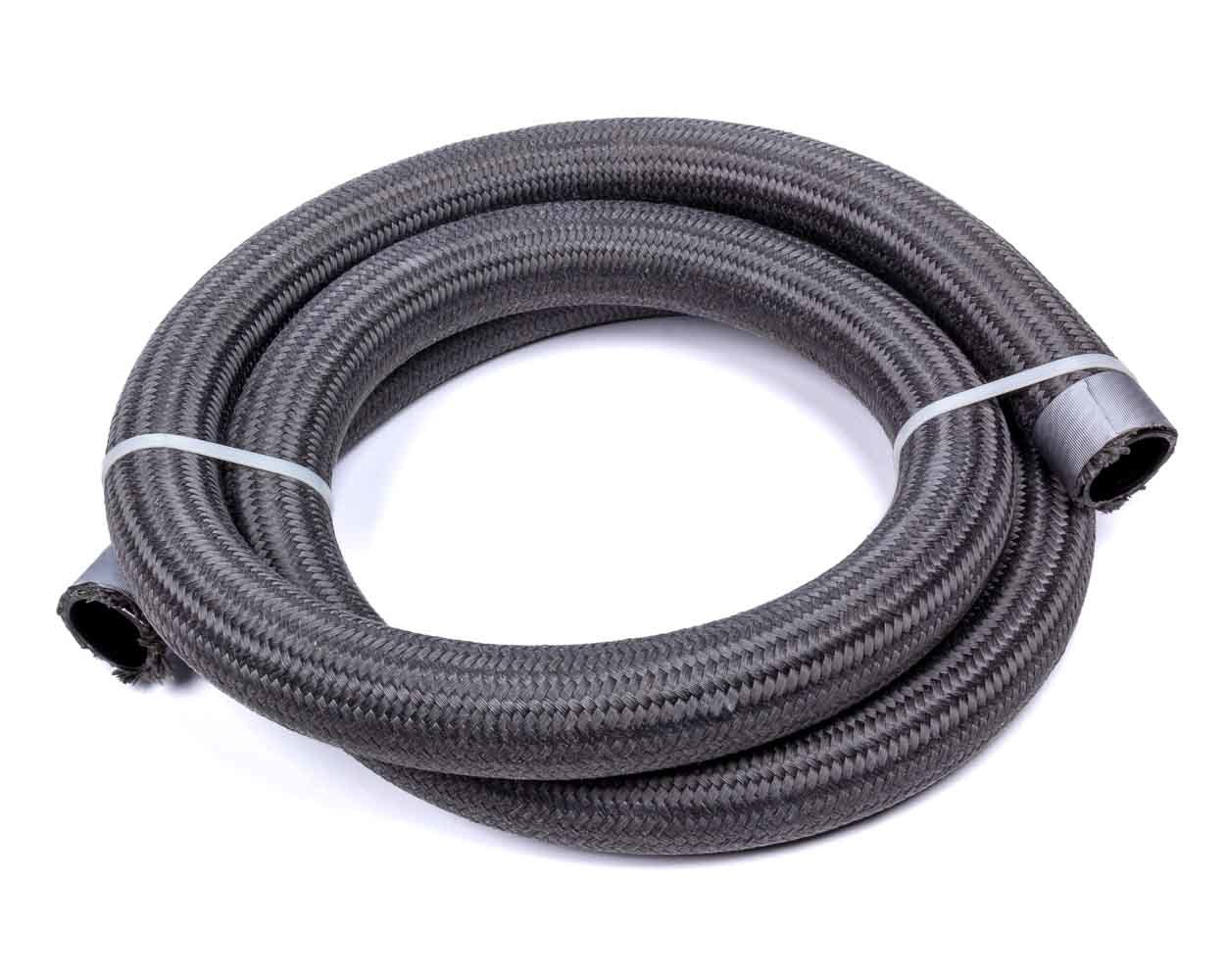

Fragola Performance Systems 2712016 Race-Rite Pro -16 AN PTFE Hose 20 Ft Black

The Fragola Performance Systems Race-Rite Pro Hose is Fragola's premier AN hose line, engineered specifically to dominate oil cooler and dry sump system markets. -16 AN (1" I.D.) in a 20-foot length, this hose delivers superior performance where standard hoses fall short.

At its core is a smoothbore conductive PTFE liner surrounded by a convoluted exterior and black Aramid braid cover. The convoluted exterior includes an externally wound spiral wire that dramatically increases hoop strength, preventing the hose from collapsing or sucking shut under high vacuum conditions. This construction also allows for tighter bend radii without kinking, making routing in tight engine bays or chassis applications far more manageable.

Key Features:

• Hose Size: -16 AN (1.00" I.D. / 1.25" O.D.)
• Length: 20 feet
• Liner: Smoothbore conductive PTFE — resistant to fuel permeation
• Cover: Black fire-retardant Aramid braid with spiral wire reinforcement
• Working Pressure: 725 PSI
• Vacuum Rating: 28 in/Hg
• Minimum Bend Radius: 3 inches
• Weight per foot: 0.33 lbs
• True-to-size I.D. for maximum flow rate
• 50% lighter than Fragola's 8400 Series black nylon race hose
• Compatible with all pumped fluids including ethanol fuels, ATF, coolant, and oils
• Ideal for dry sump and high vacuum applications

The Race-Rite Pro is the definitive choice for serious race and performance builds requiring reliable, lightweight, high-flow plumbing. UPC: 822320039443.
