Pacbrake HP10629 HP625 Series 12V Heavy Duty Air Compressor Kit Vertical Pump Head

The Pacbrake HP10629 is a premium 12V DC HP625 Series heavy-duty onboard air compressor kit featuring a vertical pump head configuration. Designed for demanding on- and off-road air applications, this kit delivers serious inflation capability with a 100% duty cycle rated at 60 minutes continuous operation at 100 PSI and a maximum working pressure of 150 PSI.

Key Features:

• 3/4 Horsepower copper wire wound permanent magnet motor for reliable, high-output performance
• 100% Duty Cycle — 60 minutes continuous operation at 100 PSI
• 150 PSI maximum working pressure
• Oil-less design with sealed bearings for low maintenance and long service life
• PTFE piston ring for durability and reduced wear
• Cast aluminum cylinder head with hard anodized aluminum cylinder sleeve
• Vertical pump head configuration for flexible mounting in tight or restricted spaces
• Gunmetal grey finish
• Mountable in any orientation — suitable for a wide range of installation environments
• Operating temperature range: -40°F to 158°F

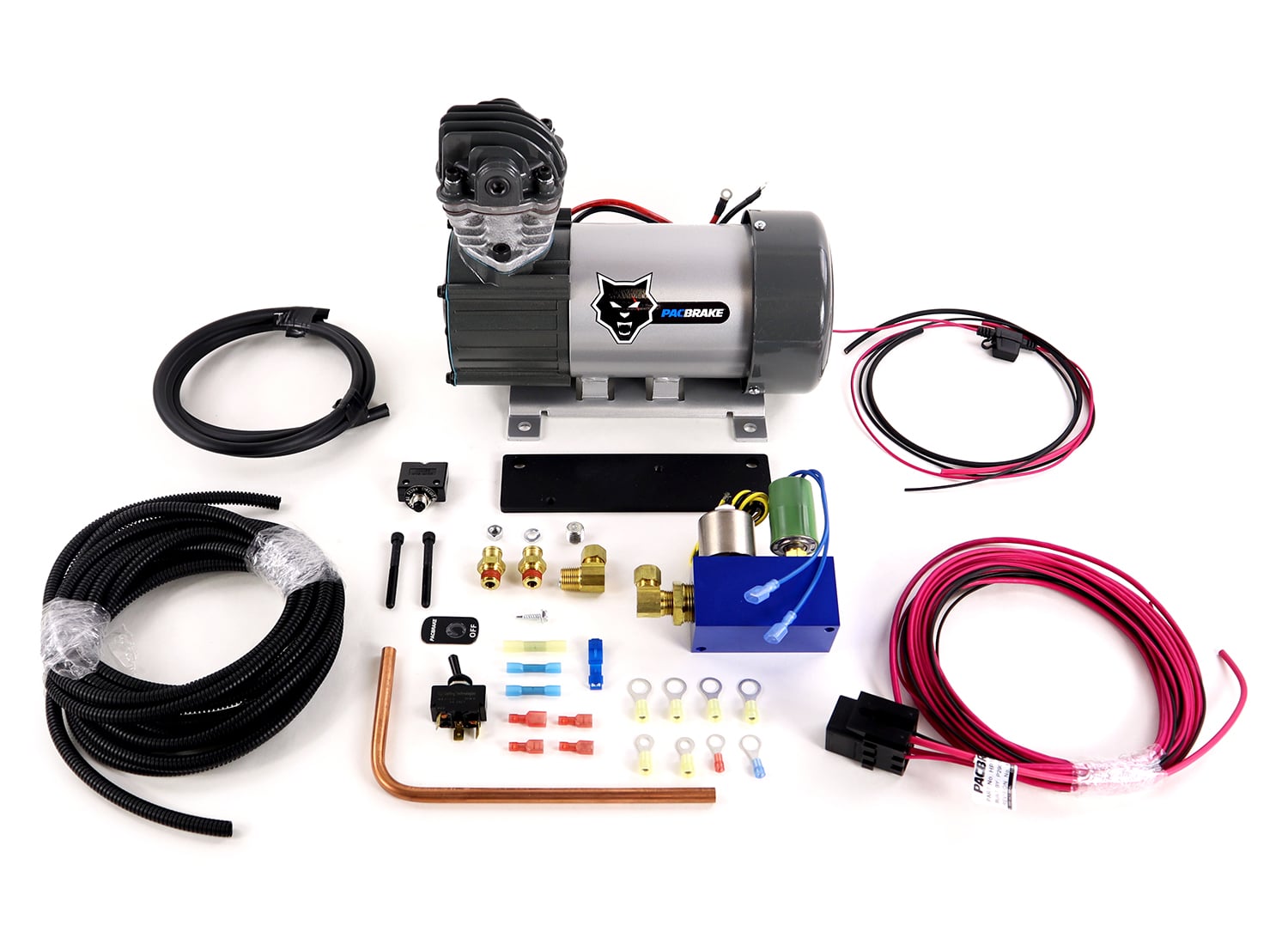

Premium Kit Includes:

• HP10625V 12V DC HP625 Series Air Compressor (vertical head)
• Complete unloader block assembly (Kit #HP10116) — required for use with an air tank
• Pre-built wiring harnesses for simplified, plug-and-play installation
• All compressor installation hardware

Compressor Dimensions: 11.5" x 6" x 9.5" (L x W x H) | Weight: 18.5 lbs

Suitable for air suspension systems, air horns, tire inflation, inflatables, and light air tool applications. An optional Air Intake Kit (HP10115) is available separately for installations with significant exposure to the elements. Basic kit versions without pre-built harnesses are also available (Vertical Head: HP10632 / Horizontal Head: HP10631).
