Lisle 71600 Manifold Drill Template for Ford 4.6L 5.4L 6.8L Engines

Manufacturer

Part Number

71600
Sale Price

$153.38

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Lisle 71600 Manifold Drill Template is a professional-grade tool kit designed to remove broken exhaust manifold bolts on Ford 4.6L, 5.4L, and 6.8L engines without damaging the cylinder head. This comprehensive system eliminates the need for expensive cylinder head removal or replacement when dealing with seized or broken manifold studs.

How It Works:

The kit uses a precision drill plate with tapered alignment bolts that center the base plate over the bolt holes. Slip-fit bushings allow you to move from hole to hole without repositioning the base plate, ensuring accurate drilling every time. The included depth gauge prevents over-drilling, while the cobalt drill bits provide the strength needed to drill through hardened bolt material. Once drilled, the screw extractor removes the broken bolt. If the extractor cannot be used, bushings are included to drill to tap size for re-threading.

Complete Kit Includes:

  • Stud extractor for removing broken bolts
  • Alignment bolt and alignment nut for precise positioning
  • 8mm tap aligner for thread repair
  • Lock screw for securing the template
  • 1/8", 3/16", and 17/64" slip/fix bushings
  • 1/8", 3/16", and 17/64" cobalt drill bits

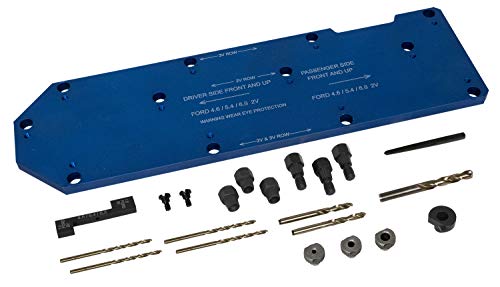

  • Ford gas drill plate (base template)
  • Ford 4.6 drill depth gauge
  • Durable carrying case for storage and organization

Applications:

Designed specifically for Ford 4.6L, 5.4L, and 6.8L Triton V8 and V10 engines commonly found in F-Series trucks, Expeditions, Excursions, Mustangs, and E-Series vans. This tool is essential for technicians and mechanics who regularly work on these engines, which are notorious for broken exhaust manifold bolts.

Benefits:

  • Saves time and money by eliminating cylinder head removal
  • Precision alignment prevents thread damage
  • Professional-quality cobalt bits handle hardened bolts
  • Complete kit includes everything needed for the repair
  • Organized case keeps components protected and accessible
