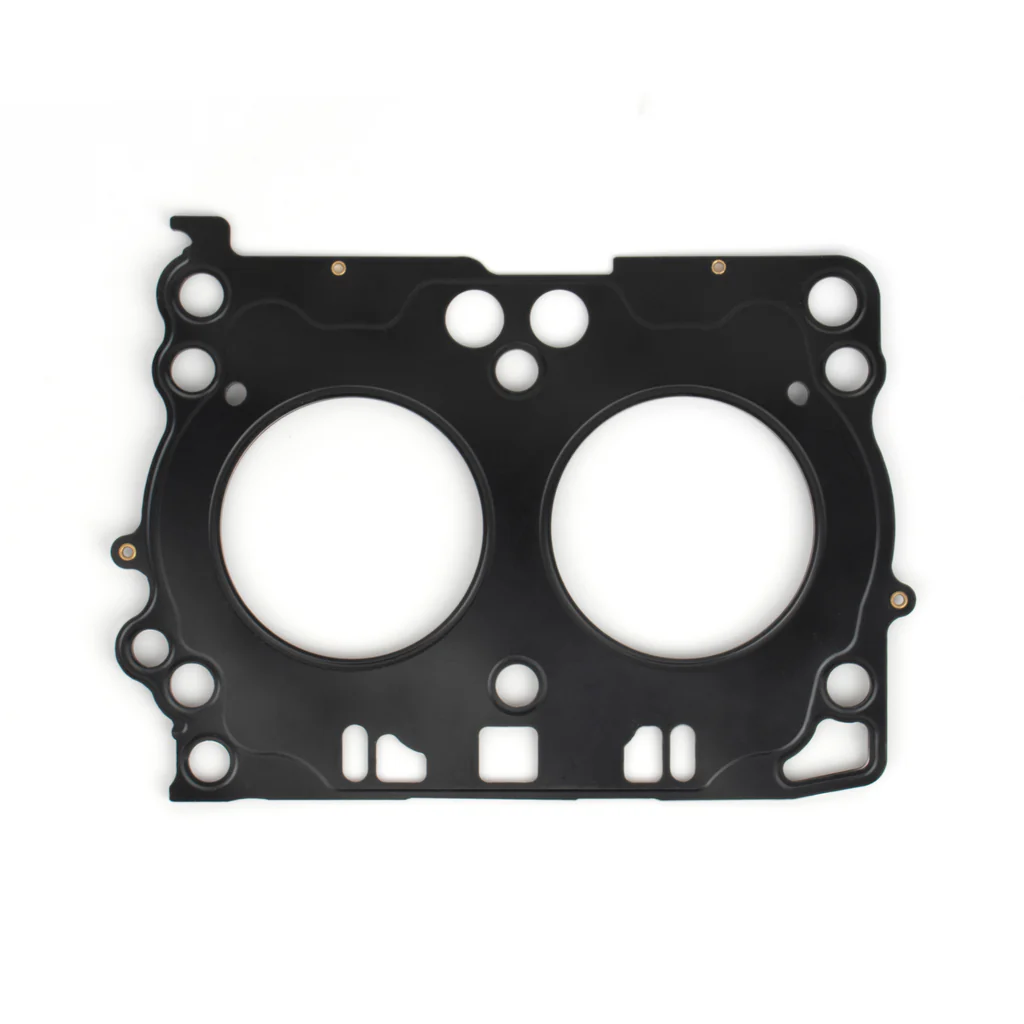

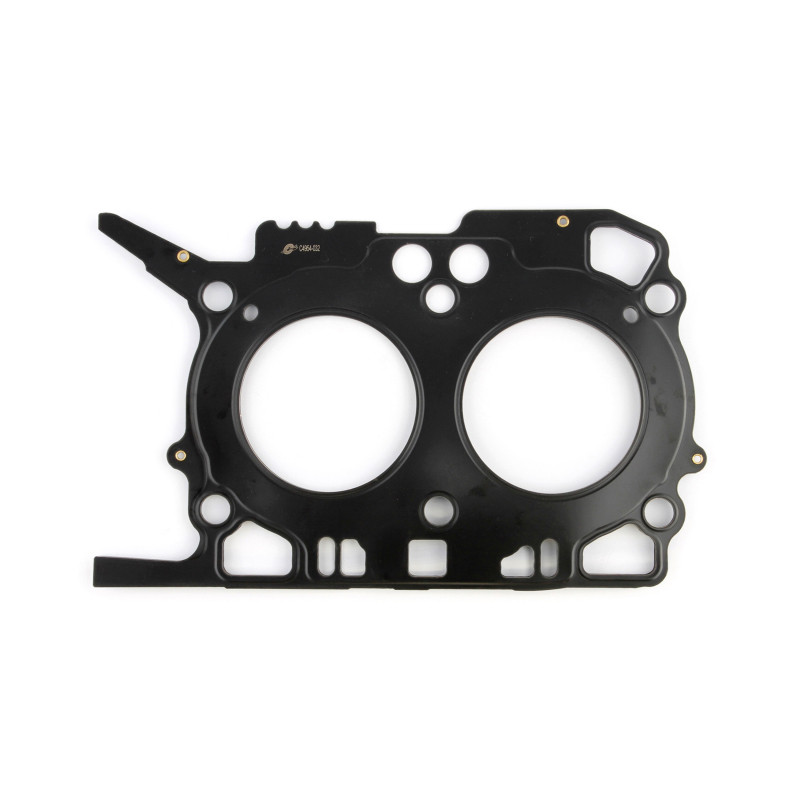

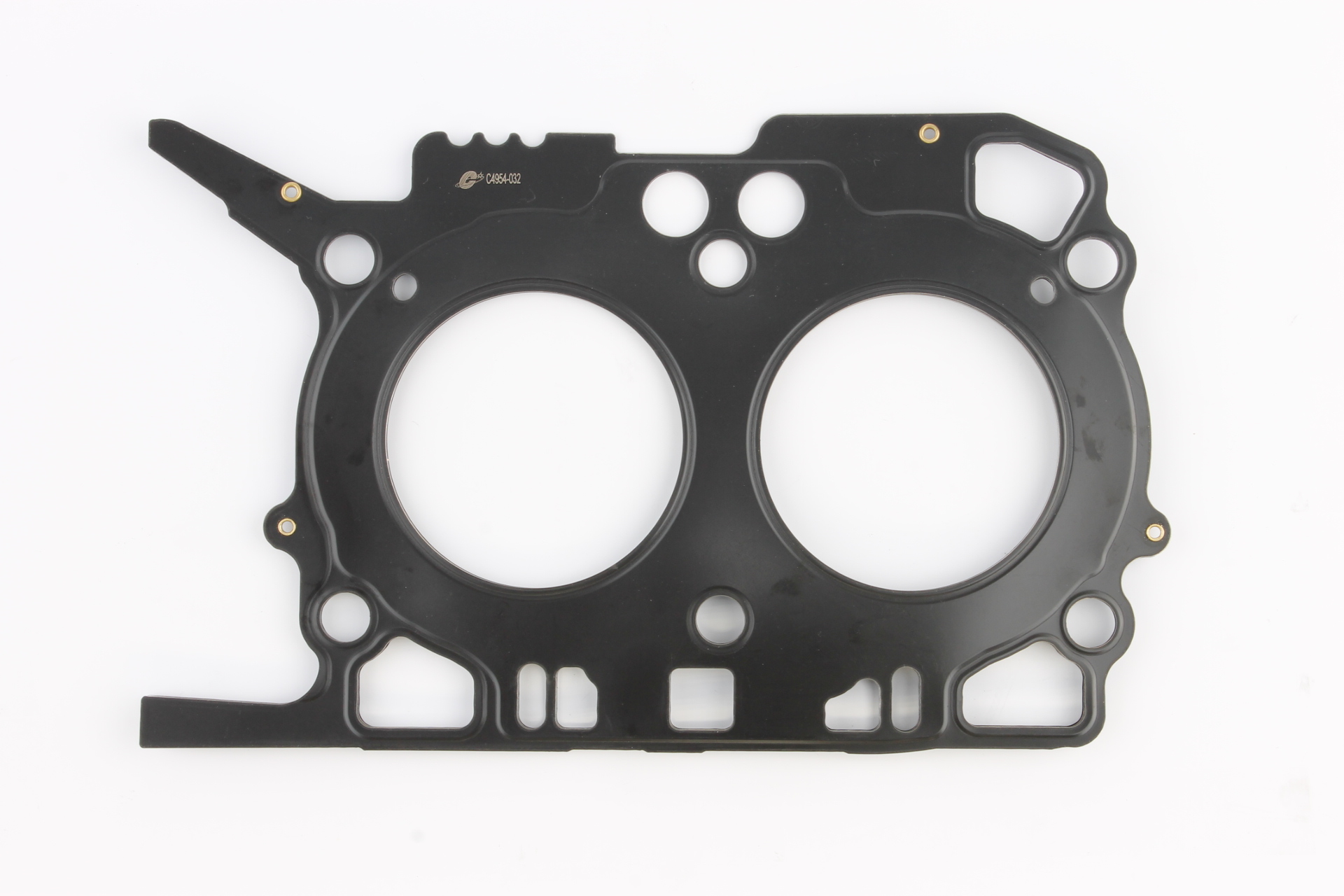

Cometic C4954-032 FA20F MLX Cylinder Head Gasket 89.5mm Bore .032in LHS

The Cometic C4954-032 is a high-performance MLX (Multi-Layer Xtreme) cylinder head gasket designed for the Subaru FA20F turbocharged boxer engine. Built for demanding performance and high-output applications, this left-hand side (LHS) head gasket features a 89.5mm bore and a 0.032-inch compressed operating thickness.

The MLX design sets this gasket apart from standard MLS units. It incorporates an additional integrated stopper fold-over layer that provides a torque-limiting surface, preventing yielding of the combustion seal under high cylinder pressures. This design improves clamp load distribution around the cylinder bore without increasing bore distortion.

Key Features:

• MLX Multi-Layer Xtreme construction — features an integrated stopper layer for superior combustion chamber sealing
• Multiple embossed stainless steel layers — provides increased strength, rebound capability, and corrosion resistance
• Viton rubber outer coating — heat-resistant elastomer coating on both outer layers, rated to 250°C / 482°F
• Proprietary high-temperature coatings and embossments — create a micro-seal for fluids against the head and block mating surfaces
• 89.5mm bore diameter with 0.032-inch compressed thickness
• Left-hand side (LHS) gasket — order accordingly for the correct cylinder bank
• No sealant required — direct bolt-on installation
• Suitable for aluminum-to-aluminum head and block applications

Cometic gaskets are manufactured in the United States and are trusted by championship-winning motorsport teams across multiple racing disciplines. The C4954-032 is sold individually (1 gasket per package).
