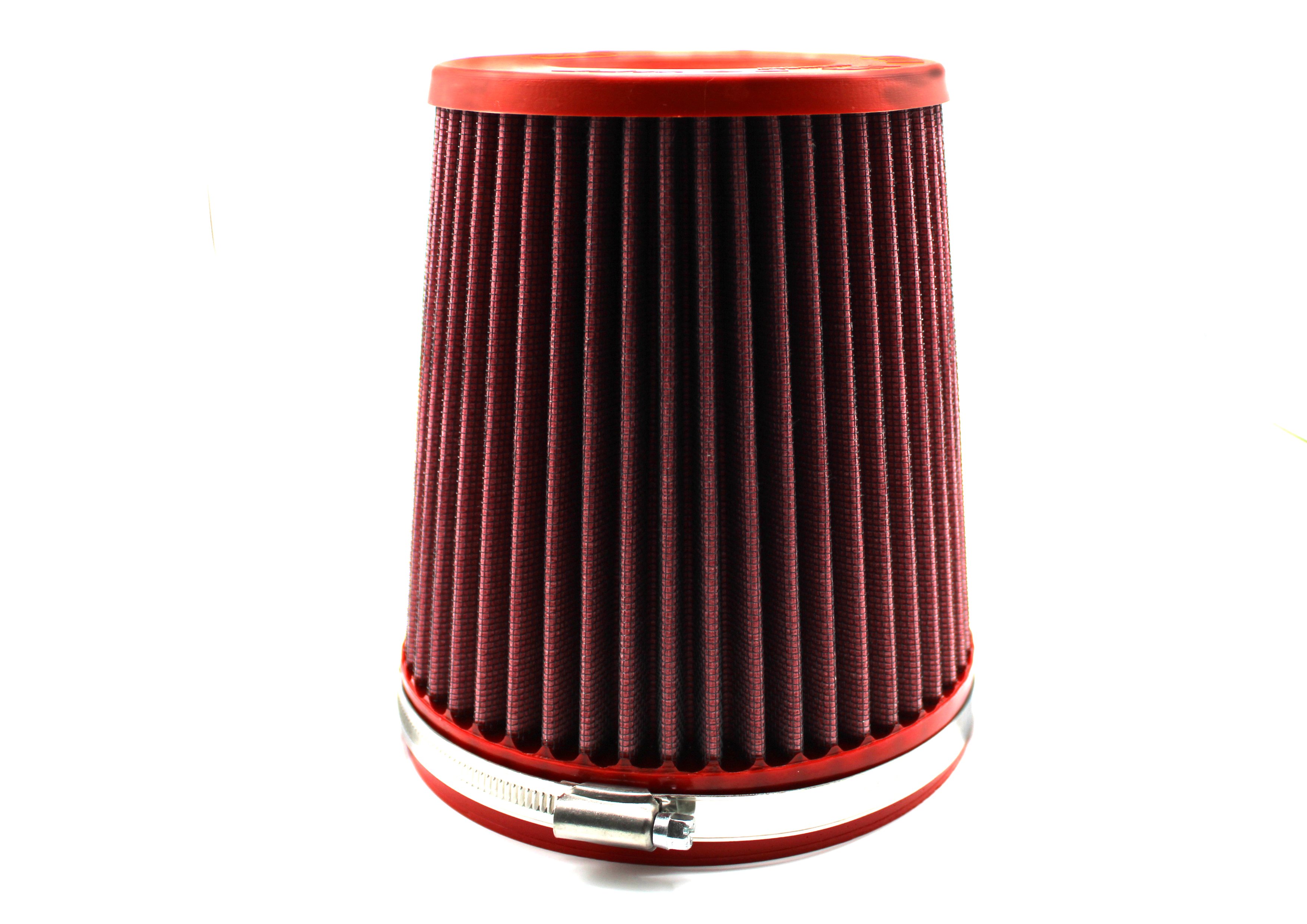

BMC FBTW150-160 Twin Air Universal Conical Performance Air Filter

BMC FBTW150-160 Twin Air Universal Conical Performance Air Filter

The BMC FBTW150-160 is a high-performance Twin Air conical air filter designed for universal fitment in custom intake systems. This premium filter features dual airflow design with both central and lateral air intake for maximum breathing capacity.

Key Specifications

• Inlet Diameter: 150mm (5.9 inches)
• Filter Length: 160mm (6.3 inches)
• Overall Height: 180mm (7.1 inches)
• Design: Twin Air (TW) - Central and lateral airflow
• Top Style: Metal top construction

Premium Construction

BMC air filters are manufactured using the proprietary Full Moulding process developed by BMC's Formula 1 research and development team. The filter element consists of a specialized cotton gauze material soaked in low-viscosity oil, providing exceptional air permeability while capturing contaminants as small as 7 microns. The characteristic red rubber connection collar is engineered to resist heat and engine stress without deforming, even in high-temperature environments.

Performance Features

• Higher Airflow: Significantly greater air flow compared to OEM paper filters with less than half the pressure drop
• High Power Capability: Special filtration mesh supports applications up to 700 HP without filter deformation
• Washable & Reusable: Lifetime filter that can be cleaned and re-oiled repeatedly, eliminating replacement costs
• Pre-Oiled: Ships ready to install right out of the box
• Superior Filtration: Filters particles down to 7 microns while maintaining optimal airflow

Universal Application

Designed as a direct induction conical filter, the FBTW150-160 can be installed on most engine types by removing the original airbox. The heat-resistant red rubber connection is designed to fit pipes or flanges with a 150mm outer diameter. The Twin Air design allows for both central and lateral airflow, maximizing air intake volume for improved combustion efficiency.

What's Included

• BMC FBTW150-160 Twin Air conical filter (pre-oiled and ready to install)

Note: This is a universal performance filter suitable for custom intake applications. Ensure proper fitment by measuring your intake pipe diameter before ordering.
