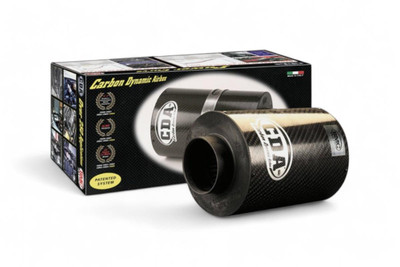

BMC ACCDA100-220-01 Universal Carbon Dynamic Airbox Kit Inlet/Outlet - 100mm

The BMC ACCDA100-220-01 Universal Carbon Dynamic Airbox (CDA) represents a significant upgrade in air intake technology, combining lightweight carbon fiber construction with advanced airflow engineering. This complete kit features a cylindrical carbon fiber airbox housing with a 100mm diameter inlet and outlet, designed to maximize airflow while maintaining thermal efficiency.

Advanced Carbon Fiber Design:

The airbox is constructed from premium carbon fiber, chosen specifically for its low thermal conductivity properties. This composite material provides superior insulation from engine heat, ensuring that cooler, denser air reaches your engine for improved performance. The carbon fiber construction also reduces weight compared to traditional airbox materials while adding a high-performance aesthetic under the hood.

Dynamic Air Intake System:

The CDA system includes a flexible aluminum intake tube that connects to a frontal air intake, creating a dynamic supercharging effect. As air enters the system, it is accelerated through the intake tube and further enhanced by an internal air flow deflector within the carbon fiber airbox. This dynamic over-boosting delivers greater airflow volume, higher pressure, and colder air to the engine, resulting in measurable increases in both horsepower and torque.

Key Features:

• Cylindrical carbon fiber airbox with washable filter element included
• 100mm (approximately 3.9 inches) diameter inlet and outlet connections
• Overall length: 224mm (8.8 inches)
• Total system length with tube: 274mm (10.8 inches)
• Airbox diameter: 183mm (7.2 inches)
• Low thermal conductivity carbon fiber insulates intake air from engine heat
• Internal air flow deflector minimizes pressure loss
• Flexible aluminum connection tube for frontal air intake
• Reusable, washable cotton filter element
• Universal fitment for custom intake applications
• UPC: 8055732592370

What's Included:

This complete kit contains the carbon fiber airbox assembly, washable filter element, flexible aluminum intake tube, mounting hardware, and all necessary components for installation.

Important Note:

This product is not CARB legal and is not for sale or use in California. Designed for racing and off-road applications only in emissions-regulated areas.
