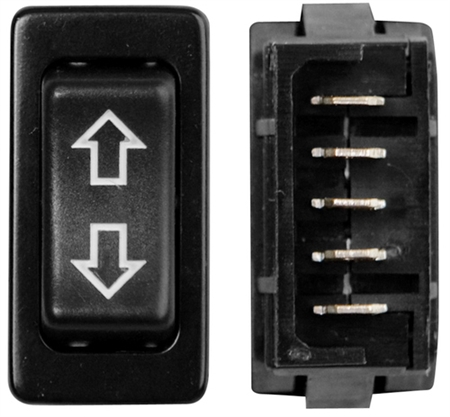

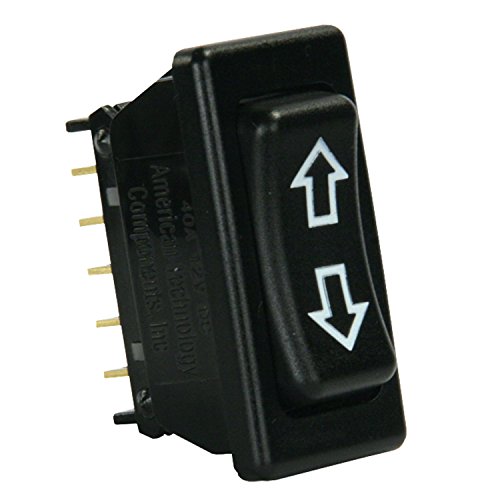

Valterra DG1715BVP 5-Pin In-Line Terminal Switch DPDT 40 Amp Black

The Valterra DG1715BVP is a heavy-duty in-line terminal switch designed for RV slide-out rooms and marine applications. This square-style switch features a double pole double throw (DPDT) configuration with 5-pin terminals, providing reliable motor switching and reversing capabilities.

Key Features:

• High output 40 amp capacity for demanding electrical loads
• DPDT (double pole double throw) configuration with 5-pin slide-out terminals
• Square black housing with white directional arrows for easy operation
• Compact dimensions: 1.63" x 0.82" face with 1.50" x 0.70" panel cutout required
• UL, CSA, and VDE certified for safety and performance
• Durable construction built for long-lasting RV and marine use

This switch is commonly used for RV slide-out room controls, marine applications, and other 12V DC motor switching applications. The in-line terminal design allows for straightforward wiring connections, while the momentary rocker action provides precise directional control. Also known by Diamond Group part number 1715B.
