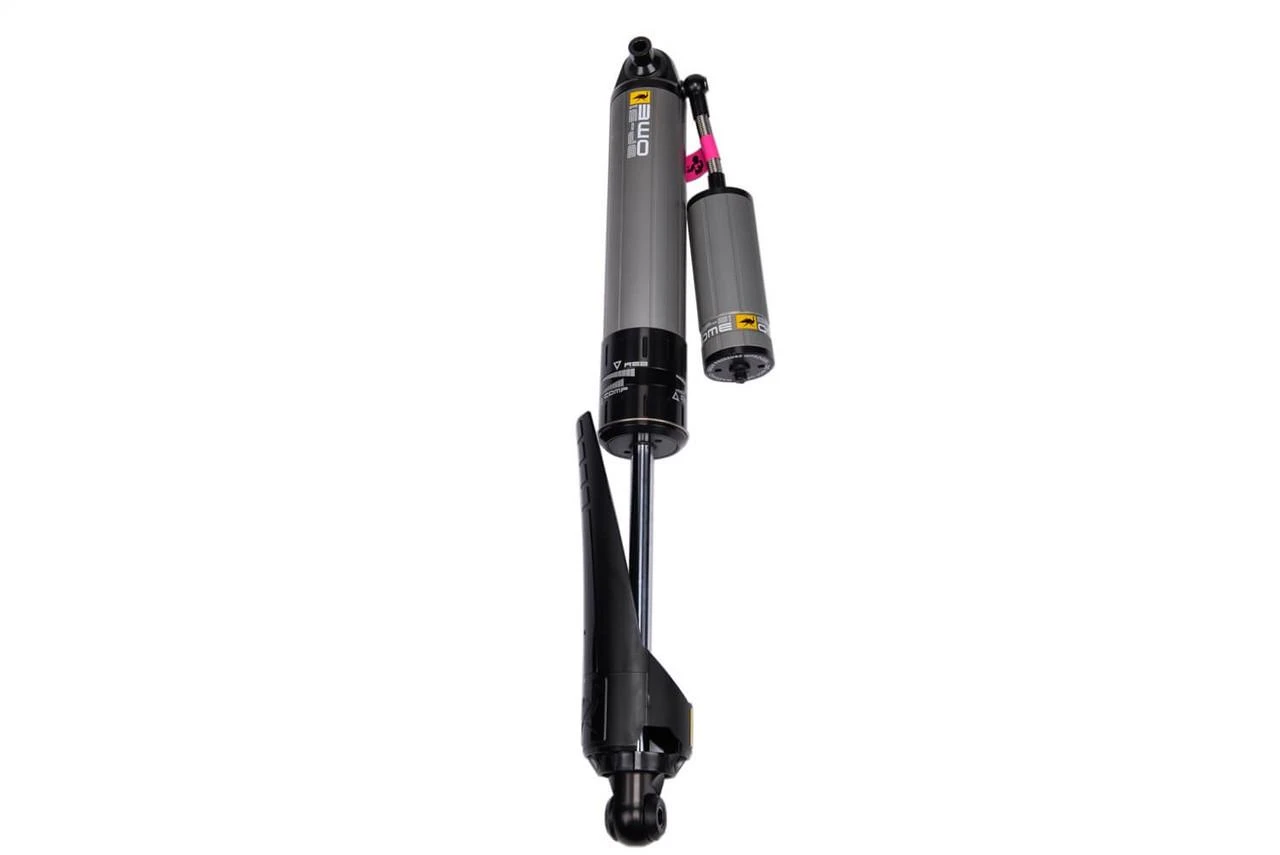

ARB BP5160034R Old Man Emu BP-51 Bypass Shock Absorber Jeep Wrangler JL Rear Right

The ARB Old Man Emu BP-51 is a high-performance internal bypass shock absorber that brings race-proven technology to everyday off-road enthusiasts. Engineered specifically for the Jeep Wrangler JL, this rear right side shock absorber features a position-sensitive design with remote reservoir for exceptional performance both on and off the road.

Advanced Bypass Technology:

The BP-51 utilizes a 51mm bore diameter with internal bypass passages integrated into the shock body, eliminating the need for external bypass tubes while maintaining compact dimensions. This innovative design provides position-sensitive damping that delivers plush comfort during normal driving while automatically increasing damping forces as the shock approaches the end of its travel, preventing harsh bottoming and topping out.

Key Features:

• Internal bypass design with 51mm bore for optimal fluid volume and heat dissipation
• Independent adjustability of both compression and rebound damping
• Remote reservoir with floating piston separates hydraulic fluid from gas
• Aircraft grade 6061-T6 aluminum body with Type 3 40-micron hard anodized finish
• Bolt-on installation using factory mounting points - no modifications required
• Compressed length: 16.85 inches, extended length: 27.01 inches
• Polyethylene shaft guard and rubber bushings included

Superior Construction:

Every BP-51 shock absorber is designed, developed, tested, and manufactured entirely in-house by ARB's team of Old Man Emu engineers. The 6061-T6 aluminum construction provides exceptional heat dissipation, superior corrosion resistance, and outstanding durability against stone damage. The remote reservoir helps cool hydraulic fluid while maximizing shock travel without restrictions.

The BP-51's adjustable damping allows you to customize your ride for different terrain, loads, and driving conditions - from comfortable highway cruising to aggressive off-road performance. This vehicle-specific shock is designed to work seamlessly with Old Man Emu springs and suspension components.
