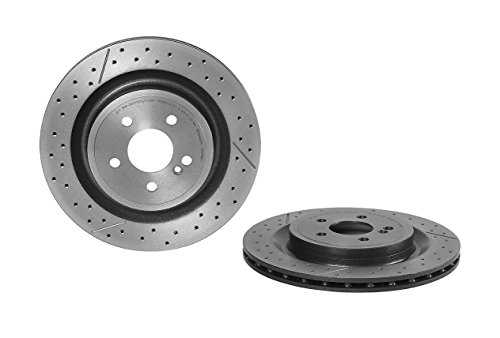

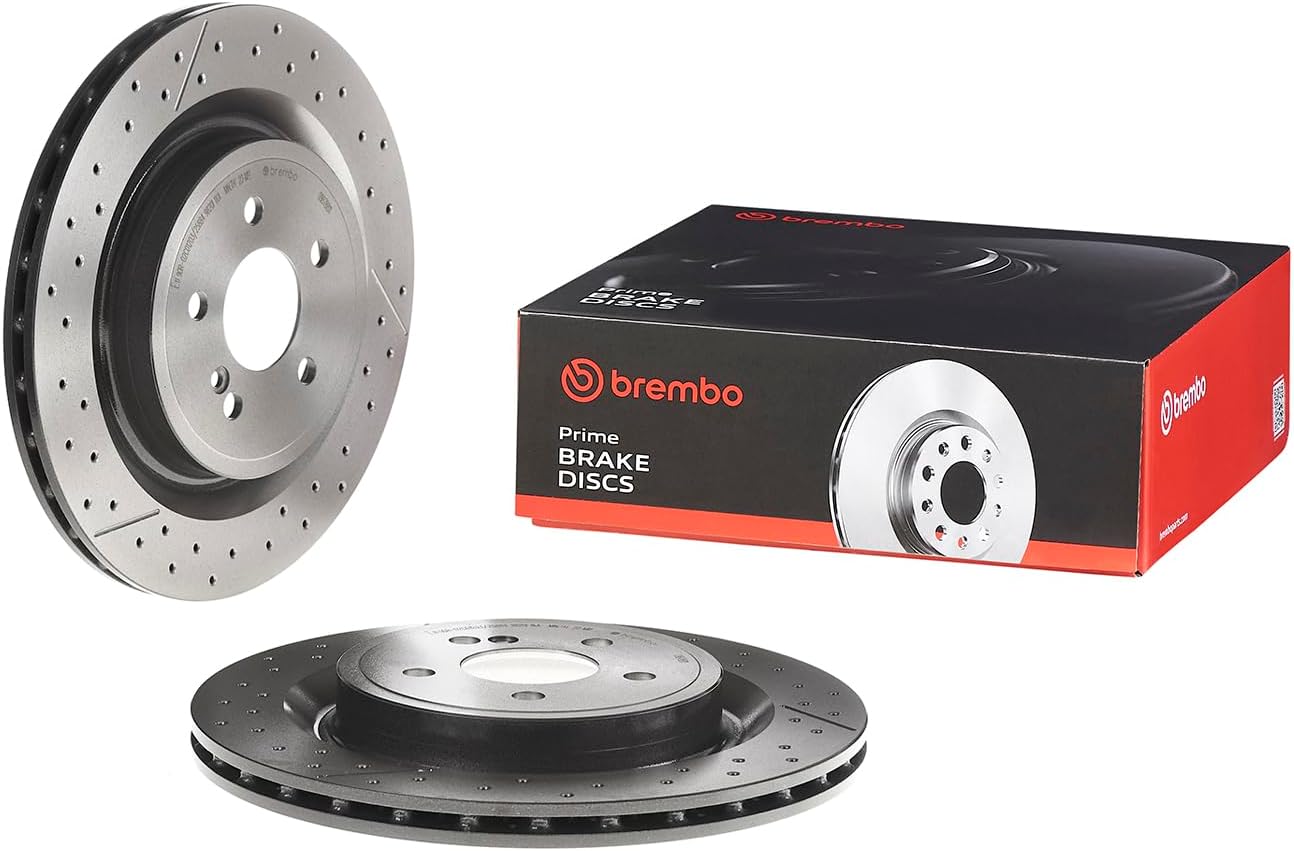

Brembo 09.B788.11 Premium UV Coated Rear Disc Brake Rotor Cross-Drilled Slotted

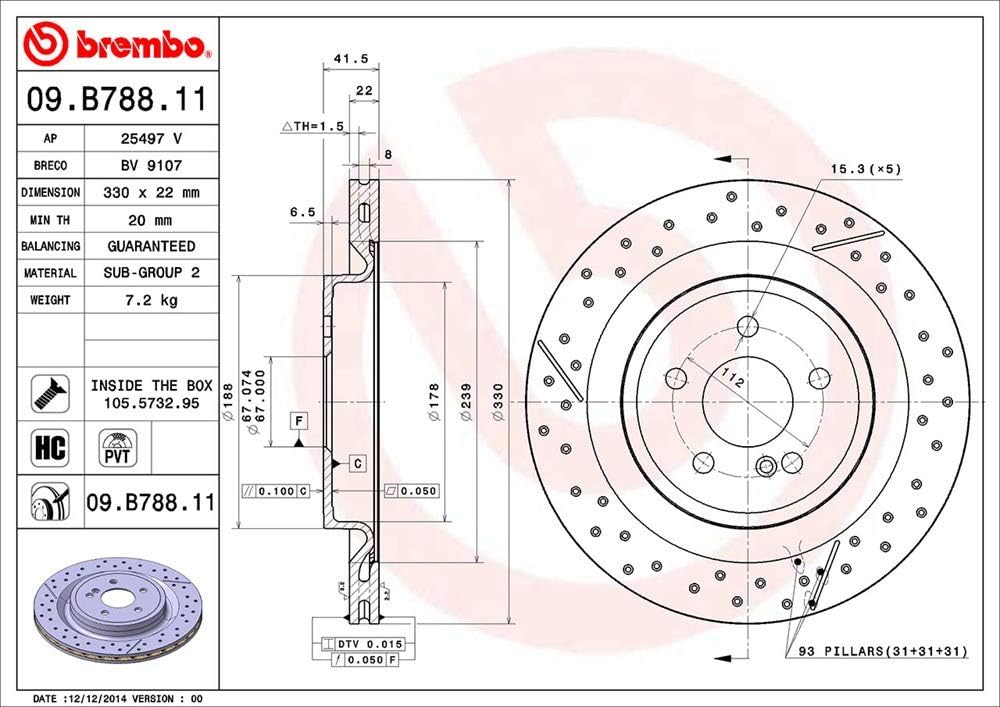

The Brembo 09.B788.11 is a premium UV coated rear brake rotor featuring cross-drilled and slotted surface design with vented construction. This 12.99-inch (330mm) diameter rotor is constructed from high-carbon cast iron with a nominal thickness of 22mm and features 5 bolt holes with a 67mm centering hole diameter.

Premium UV Coating Technology:

The environmentally friendly, solvent-free UV coating offers superior protection for the disc, including braking plate surfaces. This UV coating on the braking surface and outer diameter of the hub gives the rotor a clean, brilliant appearance while ensuring greater resistance to corrosion.

Pillar Venting Technology:

Brembo's exclusive, patented Pillar Venting Technology (PVT) enhances cooling potential and increases rotor resistance to cracking by more than 40%. This advanced venting design promotes optimal heat dissipation and extended rotor life under demanding conditions.

Key Features:

• Developed as direct replacement that meets or exceeds OEM specifications
• High-carbon cast iron construction minimizes noise and vibration while providing maximum performance and enhanced driving comfort
• Cross-drilled and slotted surface design with vented construction
• Includes fixing screw kit with all necessary hardware for simple, worry-free installation
• Intelligent marking location displays part number and minimum thickness
• Minimum thickness specification: 20mm

Cross-references: 09B78811, 09 B788 11, OEM# A1724230112, Mercedes-Benz# 40533172253. For optimal braking performance, Brembo recommends replacing rotors and brake pads together and pairing this rotor with Brembo NAO/Ceramic or Low-Met brake pad formulations.
