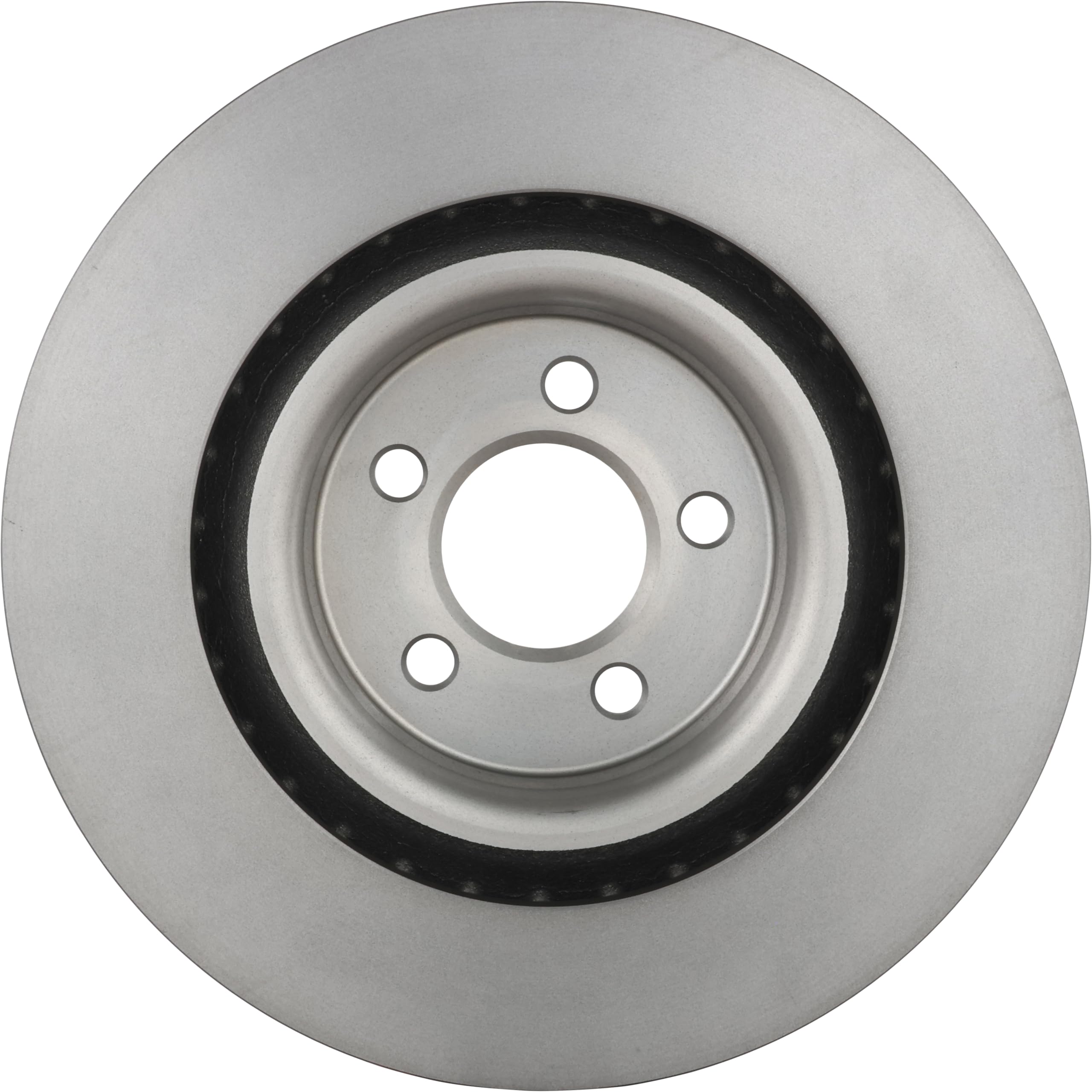

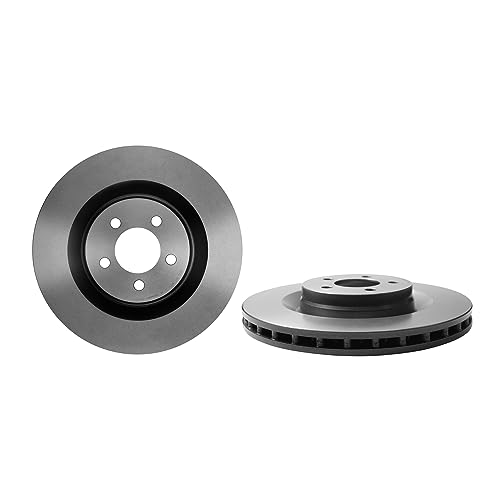

Brembo 09.A183.11 UV Coated Front Disc Brake Rotor

The Brembo 09.A183.11 is a premium UV coated front disc brake rotor designed as a direct OE replacement for select Chrysler and Dodge vehicles. This high-performance rotor features Brembo's advanced Pillar Vented Technology (PVT) and environmentally friendly UV coating for superior protection and performance.

Key Specifications:

• Diameter: 14.17 inches (360mm)
• Thickness: 1.260 inches (32mm nominal, 30mm discard thickness)
• Bolt Pattern: 5 x 4.52 inches (5 x 115mm)
• Center Hole Diameter: 2.87 inches
• Overall Height: 2.28 inches
• Material: High-carbon gray cast iron
• Construction: Pillar vented for enhanced cooling

Premium Features:

• Environmentally friendly solvent-free UV coating protects the entire disc including braking surfaces and hub
• Patented Pillar Vented Technology increases crack resistance by more than 40% while enhancing cooling
• High-carbon cast iron construction minimizes noise and vibration for enhanced driving comfort
• UV coating provides superior corrosion resistance and maintains a clean, shiny metallic appearance
• Intelligent marking displays part number and minimum thickness specifications
• Meets or exceeds OEM specifications for direct replacement

What's Included:

• One (1) front brake rotor - sold individually
• Complete fixing screw kit with all necessary hardware for installation

Brembo recommends replacing rotors and brake pads together to optimize braking performance. For best results, pair this UV coated rotor with Brembo NAO/Ceramic or Low-Met brake pad formulations. Replaces OEM part number 5290537AD.
