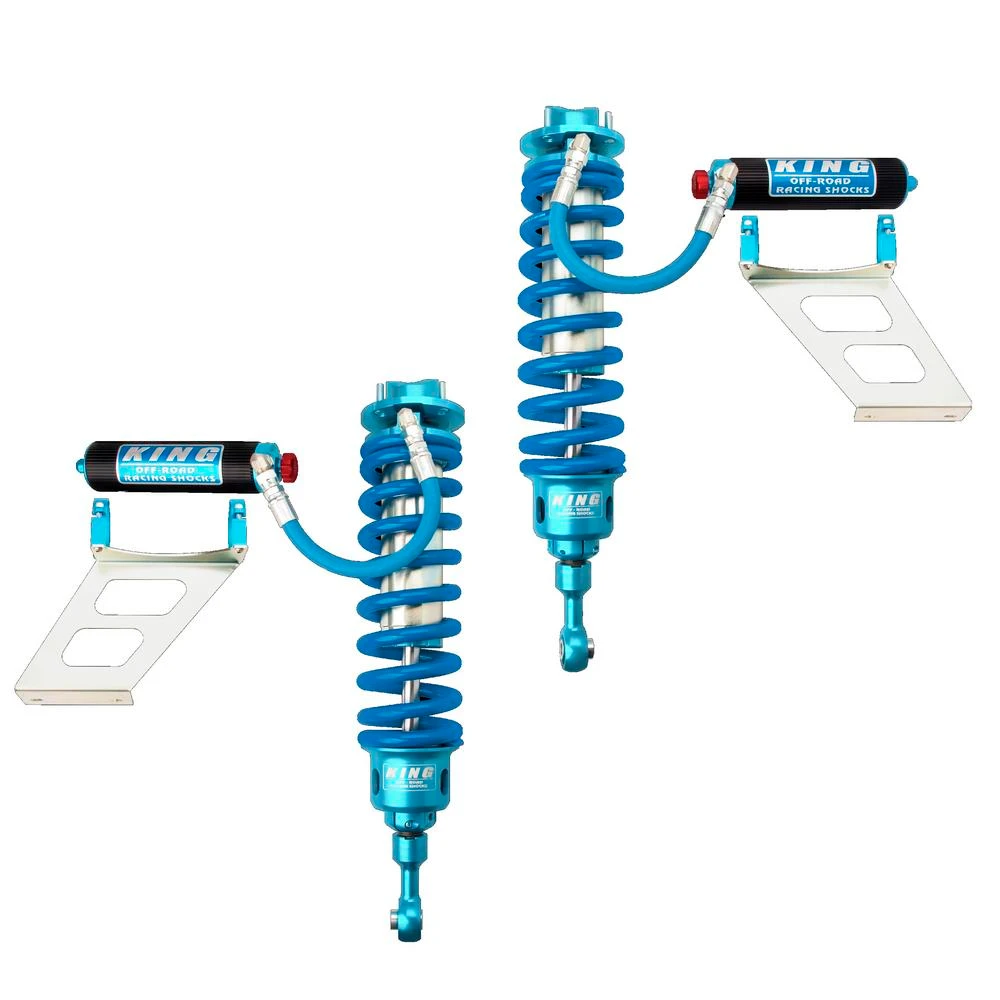

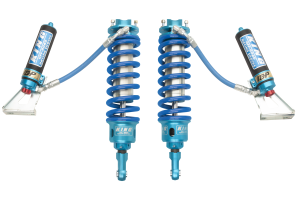

King 33001-209A 3.0 Front Coilover Kit with Internal Bypass and Adjustable Compression

(2005-2015, 2018-2023 Toyota Tacoma)

Manufacturer

Part Number

33001-209A
Sale Price

$3,341.67

Estimated ship date Thursday, November 19

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King 33001-209A is a front coilover kit featuring 3.0-inch diameter shock bodies with adjustable compression designed to deliver race-proven performance in a complete bolt-on package. This kit features King's 3.0 IBP Internal Bypass coilover shock that delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock.

Advanced Internal Bypass Technology:

The King IBP internal bypass shock delivers precisely tunable velocity sensitive and position sensitive damping as well as a hydraulic bump stop in a bolt-on monotube shock. King's monotube design uses a full diameter piston and standard, full size valving, providing superior damping control compared to conventional twin-tube designs. The King 3.0 IBP design utilizes a full diameter piston and adds a metering needle which reduces flow near the end of the travel. The big piston design maintains the benefits of 3.0" bore shocks while adding bottoming control like a bypass shock.

Key Features:

  • Large 3.0-inch diameter shock bodies and external reservoirs dramatically improve fluid capacity and heat dissipation
  • Comes standard with King's Wide Range Compression Adjuster that gives 20 precise clicks of compression damping adjustment
  • Adjustable ride height and up to a 25% increase in wheel travel
  • 100% bolt-on installation with no cutting or welding required
  • Lightweight hard anodized 6063 aluminum alloy reservoirs dissipate heat quickly and will not rust
  • High quality fittings mated to Aeroquip high pressure hoses which resist abrasion and kinking
  • Shock cylinders precision bored to within +/- .001, then honed after cadmium plating for tight piston seal
  • Truncated thread design for ultimate strength with pinch bolt coil adjuster nut for superior clamping force

Performance Engineering:

Each kit has been subjected to punishing real world testing to develop the optimal damping curves and spring rates. Built with the same quality of materials and precise tolerances found on King's high end race shocks, these coilovers enable you to experience race-winning performance on both street and trail. King's OEM upgrade shocks feature the same serviceable design that allows for valve adjustments with simple hand tools.

This Stage 3 front coilover kit includes all necessary mounting hardware for complete installation. The kit is custom-tuned to provide optimal performance for both daily driving and serious off-road use.

Products specifications

Fits

2005-2015, 2018-2023 Toyota Tacoma

Extended Length

22.501 in.

Collapsed Length

17.301 in.

Shock Stroke

5.200 in.
