Zone Offroad D45N 5-Inch Suspension Lift Kit with Nitro Shocks for Dodge Ram 1500 4WD

The Zone Offroad D45N is a complete 5-inch suspension lift kit engineered specifically for the 2000–2001 Dodge Ram 1500 4WD. Designed and manufactured in the USA, this bolt-on system delivers a significant lift and the ground clearance needed to run larger tires, while maintaining proper steering geometry and ride quality both on and off the road.

The front of the system uses full-height 5-inch coil springs paired with upper and lower extended heavy-duty control arms featuring greasable polyurethane bushings to properly center the axle and correct caster. A dropped pitman arm works in conjunction with a heavy-duty track bar relocation bracket to correct steering geometry and keep the axle centered under the truck. Custom-valved Zone Nitro shocks, tuned specifically for the full 5-inch coil height, are included for all four corners. Extended polyurethane bump stops are also included to protect the suspension at full compression.

In the rear, the factory block is replaced with a 5-inch block and add-a-leaf combination — no stacking — to achieve a level stance and deliver approximately 3 inches of rear lift. Replacement sway bar links are included to eliminate binding and correct sway bar geometry at the new ride height.

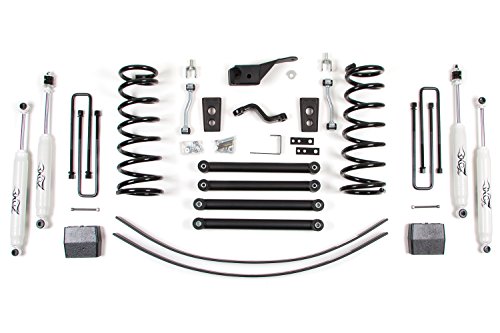

Kit Contents & Key Features:

• 5-inch front lift coil springs
• Upper and lower extended heavy-duty control arms with greasable polyurethane bushings
• Custom-valved Zone Nitro shock absorbers (qty. 4)
• Dropped pitman arm for corrected steering geometry
• Heavy-duty track bar relocation bracket
• Extended polyurethane bump stops
• 5-inch rear lift block and add-a-leaf combo (replaces factory block — no stacking)
• Replacement sway bar links
• Completely bolt-on installation — no cutting or welding required
• Estimated installation time: 5–6 hours (difficulty level 2/5)

Quick Specs:

• Front Lift Height: 5 inches (coil springs)
• Rear Lift Height: 3 inches (block and add-a-leaf)
• Maximum Tire Size: 35x12.50
• Wheel Size: 16x8 | Backspacing: 4 inches

Important Notes:

• An aftermarket steering stabilizer is required and must be ordered separately
• Shock boots are sold separately
• 2001 models equipped with the factory "Off-Road Package" may not yield the full 5 inches of lift
• Will not fit models built before February 9, 1994 due to track bar stud size differences

The Zone Offroad D45N is backed by Zone's limited lifetime warranty on structural components, making it a confident long-term investment for serious truck owners looking to maximize off-road performance and tire clearance.
