Hedman Hedders 69040 LS Engine Swap Headers Mid-Length Tube 1-1/2 Inch Primary

(1994-1998 Chevrolet S10 SS; 1999-2003 Chevrolet S10 Xtreme; 2001-2004 Chevrolet Blazer Xtreme; 1992 GMC Sonoma GT; 1982 GMC Jimmy Street Coupe)

Manufacturer

Part Number

69040
Black Friday Price

$377.40

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Hedman Hedders 69040 is a LS engine swap header set specifically engineered for installing GM LS-series engines into 1982-2004 Chevrolet and GMC S10/S15 2WD trucks. These mid-length tube headers solve the common fitment challenges that arise when swapping modern LS engines into classic compact trucks.

Key Features:

  • 1-1/2 inch diameter primary tubes with 16-gauge mild steel construction
  • 2-1/2 inch ball and socket collector design eliminates gaskets and allows for exhaust system misalignment
  • Mid-length tube design provides better low and mid-range power than stock manifolds while offering superior ground clearance compared to long tube headers
  • Handcrafted under-chassis exit construction for optimal fitment
  • 3/8 inch thick mounting flanges with round port configuration
  • Uncoated finish with temporary non-high temperature paint
  • Compatible with air conditioning and floor-shifted transmissions (automatic or manual)

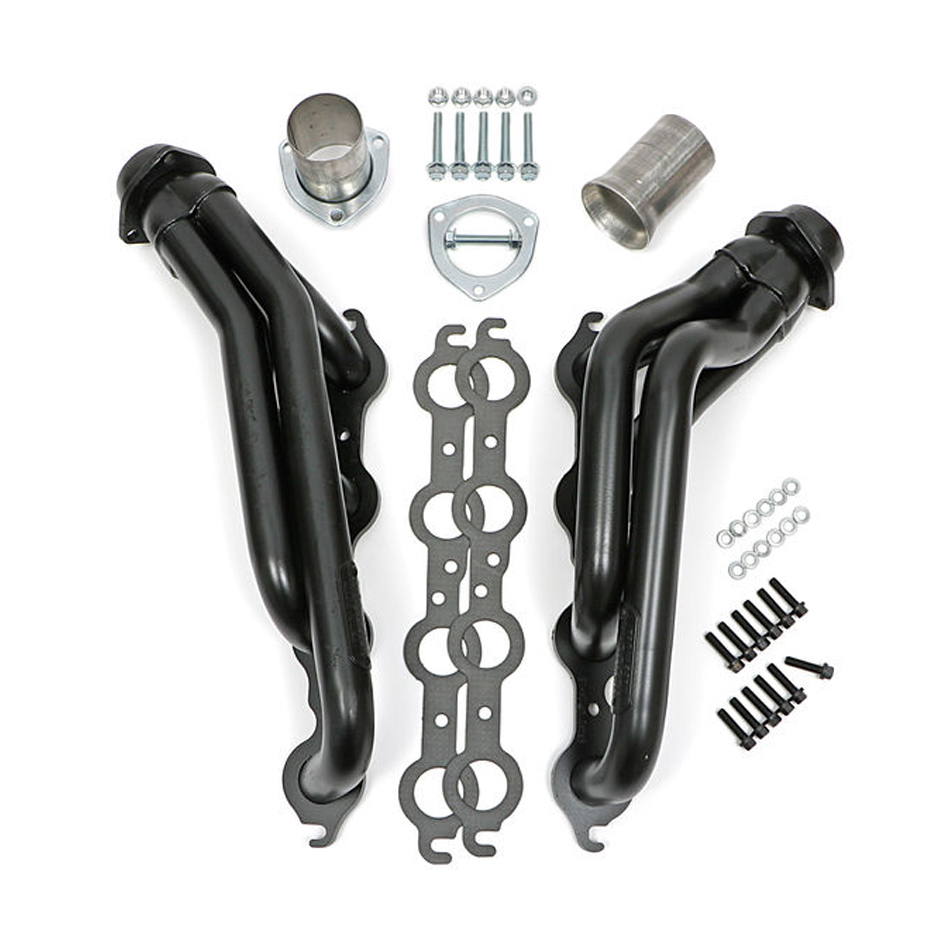

What's Included: Complete pair of headers, header gaskets, 3-bolt exhaust adapters (reducers), and all necessary mounting hardware. Requires Trans-Dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (steel) for proper installation. Designed for 2WD applications only and is not legal for street use on 1975-later model year vehicles per emissions regulations.

Backed by Hedman's limited lifetime warranty on materials and construction, these headers deliver improved exhaust flow and enhanced performance for your LS-swapped compact truck project.

Products specifications

Fits

1994-1998 Chevrolet S10 SS; 1999-2003 Chevrolet S10 Xtreme; 2001-2004 Chevrolet Blazer Xtreme; 1992 GMC Sonoma GT; 1982 GMC Jimmy Street Coupe

Bolts/Studs Included

Yes

Cylinder Head Port Shape

Round

Drivetrain

2WD Only!

Finish

Uncoated

Flange Style

Standard

Header Fasteners Included

Yes

Motor Mounts Included

No

Quantity

Sold as a pair.

Reducers Included

Yes

Tuned

No

Weld-Up

No

Y-Pipe Included

No

Collector Style

Ball and Socket Style (Gasketless)

Emissions Notes

NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.

Engine

Chevy LS Series

Header Material

Mild Steel

Header Style

Mid-Length Tube

With EGR

No

Power Steering

Yes

FLANGE Thickness

0.375 In.

Primary Tube Gauge

16g

Tube Material Thickness

16g

Head Type

Factory Heads

Product Type

Headers

Tube Style

MID-LENGTH

Tube Length

Mid-Length Tubes

Automatic Transmission - Column

No

E.O. #

No

with A.I.R. System

No

Crossover Pipe Included

NO

Catalytic Converter(s) Included

No

Manual Transmission - Column

No

Header Finish

Uncoated

Prop 65

WARNING: Cancer. For more info visit www.P65Warnings.ca.gov

Automatic Transmission - Floor

Yes

Manual Transmission - Floor

Yes

Air Conditioning

Yes

Material

Mild Steel

Gasket Or Seal Included

Yes

Installation Hardware Included

Yes

Port Shape

Round

Collector Size

2-1/2 in.

Tube Diameter

1-1/2 in.

Tube Size

1-1/2 in.

Reducer Outlet Size

2-1/2 in.

Collector Bolts Included

Yes

Collector Attachment

2-1/2 in.

Collector Diameter

2-1/2 in.

Cylinder Head

Stock Profile Heads

Exhaust System Dia

2-1/2 in.

Finish Type

UNCOATED Mild Steel! Shipped with Temporary Paint.

Header Port Shape

Round Port

Package Contents

Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Tube Design

Standard

Replacement Gasket

27470

Replacement Head Flange Gasket

27470

Header Construction

MILD STEEL- Standard-Duty

Vehicle Family

Chevy/GMC S10/S15 Family; 1982-04

Primary Tube Diameter (in)

1.50 in.

Contents

Headers, gaskets, 3-bolt exhaust adapters, mounting hardware

Installation Notes

Uses Trans-Dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel).

Title

HEDMAN HEDDERS HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. MID-LENGTH TUBE; 2-1/2 IN. BALL COLLECTOR- UNCOATED

Variations

69040, 69043, 69046
