Artec Industries TR1408 14 Bolt Front Truss Heavy Duty Axle Reinforcement

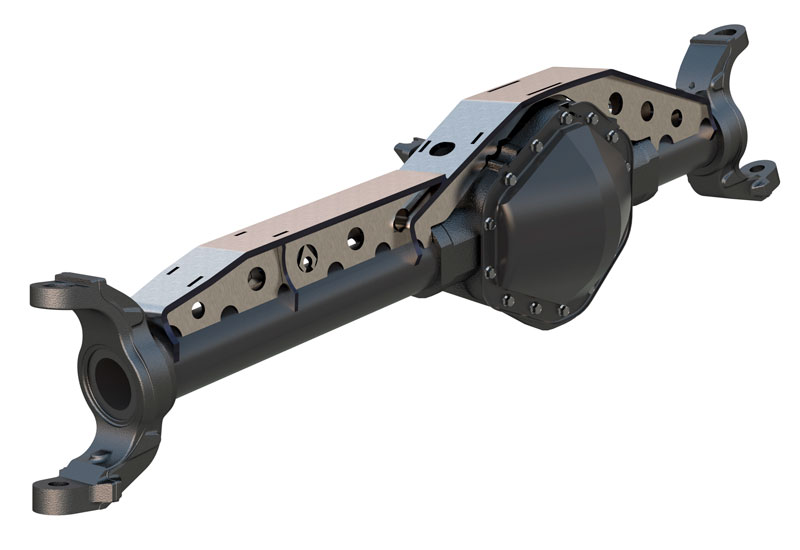

The Artec Industries TR1408 14 Bolt Front Truss is a heavy-duty reinforcement system engineered to strengthen custom 14 bolt front axles while providing an integrated upper link mounting surface. This precision-fabricated truss combines the durability of Artec's 14 Bolt Short Rear Truss with their Modular Truss End design, allowing builders to configure either a passenger side or driver side differential drop for custom front axle applications.

Construction and Design:

• 3/8 inch thick mild steel truss top provides maximum rigidity and load distribution
• 1/4 inch thick interlocking gussets and ram mount for exceptional strength
• Modular truss ends allow trimming to accommodate custom axle widths
• Low-profile design positions link joints 7 to 10 inches from axle centerline for optimal geometry
• Form-fitting contoured design matches 14 bolt axle housing casting
• Precision CNC cut and bent components ensure accurate fitment

Key Features:

• Compatible with most Chevrolet/GMC 14 bolt axles (trim-to-fit design)
• Accommodates pinion angles from 7 to 20 degrees (trimming may be required outside this range)
• Modular end caps support both driver and passenger side differential configurations
• Reinforced structure distributes stress across entire axle housing
• Flat upper surface provides solid mounting base for link brackets
• Optional pinion guard bridge can be added (sold separately, trim-to-fit)
• Compact profile minimizes interference with vehicle components

Installation Notes:

• Designed for custom 14 bolt front axle conversions (not OEM applications)
• Modular truss ends require trimming to fit axle housing contours
• Best results achieved when truss is test-fitted before final axle assembly
• Some trimming of truss or non-structural casting areas may be necessary due to manufacturing variances
• Professional welding and fabrication skills required for proper installation

This truss system is ideal for off-road enthusiasts building high-performance front axles for rock crawling, trail running, and extreme terrain applications. The combination of heavy-gauge steel construction and modular design provides both the strength needed for demanding use and the flexibility to accommodate custom axle builds.
