Oracle Lighting 1624-504 RGB Signal Amplifier In-Line Link

Manufacturer

Part Number

1624-504
Sale Price

$4.45

In Stock (6)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Oracle Lighting RGB In-Line Link is a three-channel signal amplifier designed to extend the load capability and transmission distance of universal RGB controllers for LED lighting systems. This compact amplifier is essential when your LED installation exceeds the maximum output capacity of your RGB controller.

Key Features:

  • Amplifies RGB signal to support additional LED strips beyond controller capacity
  • Handles up to 12 amps maximum load current with 144 watts total output power
  • Three independent channels for red, green, and blue LED control

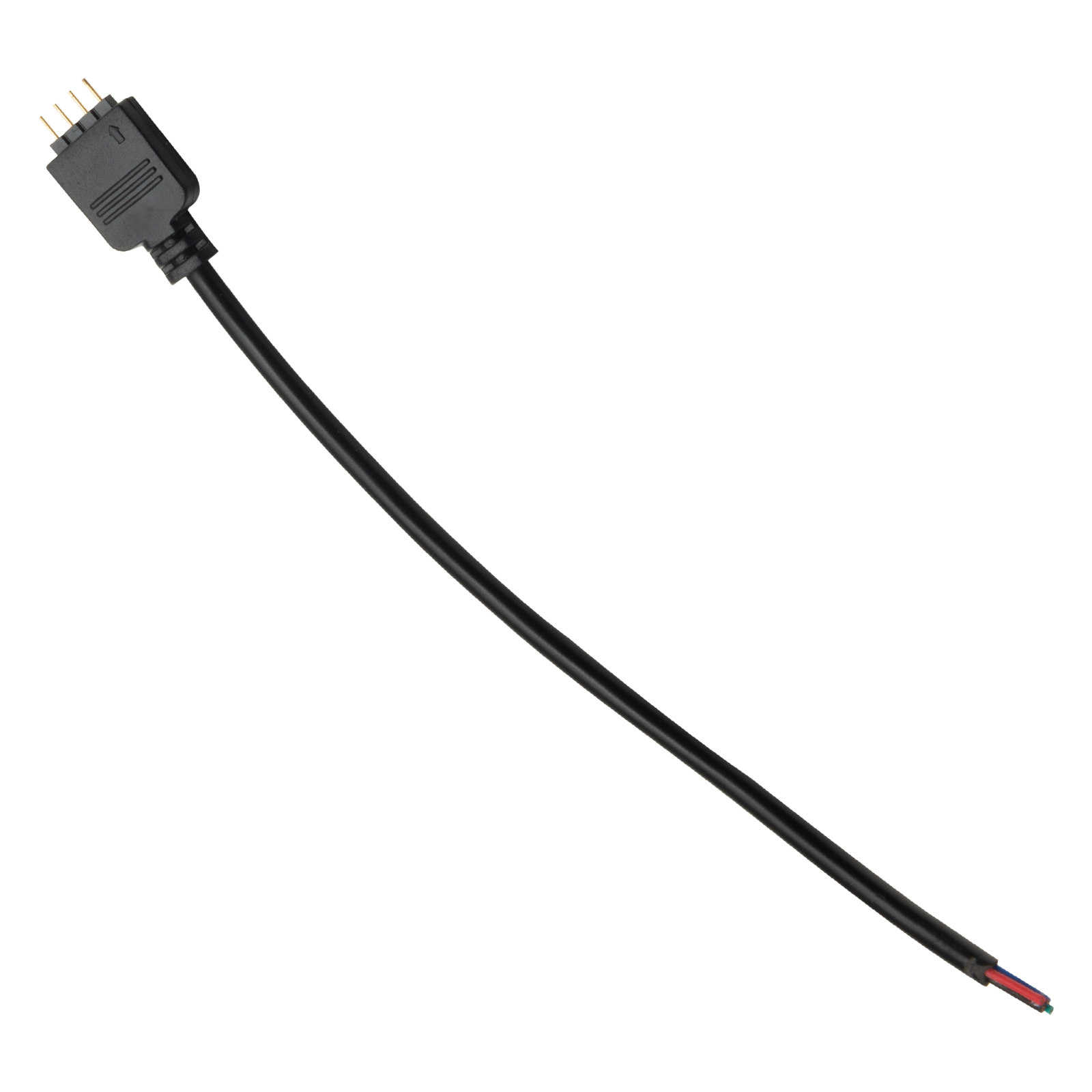

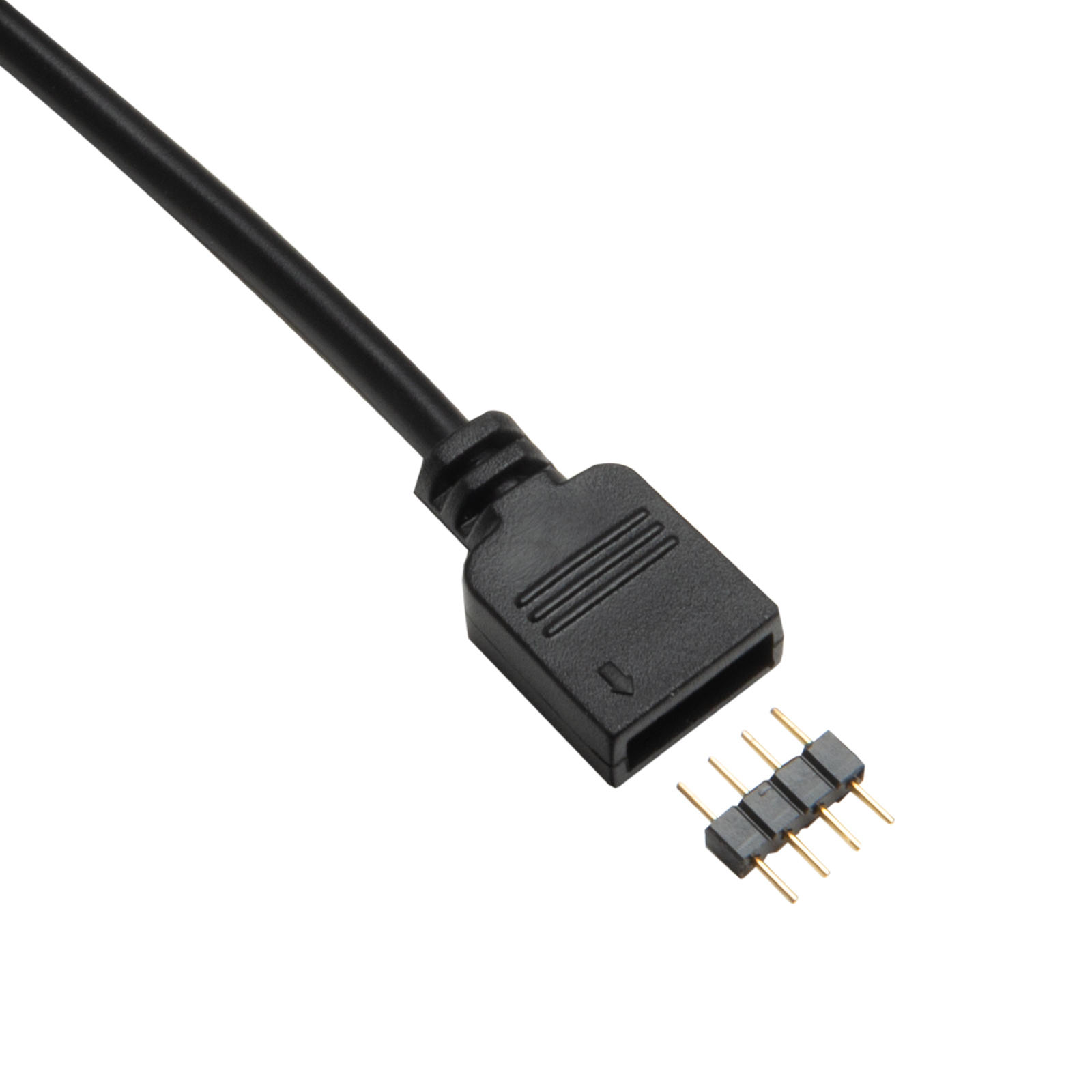

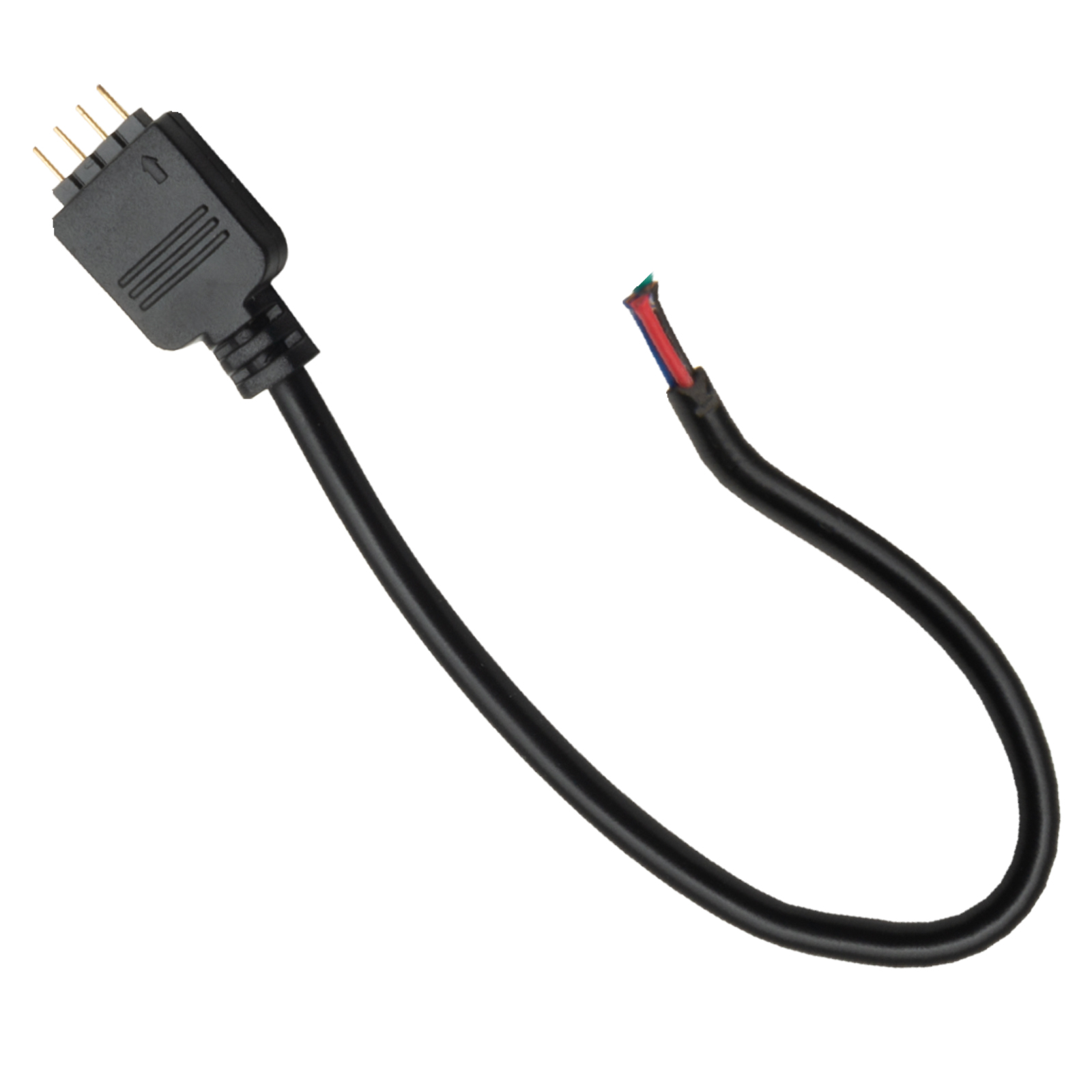

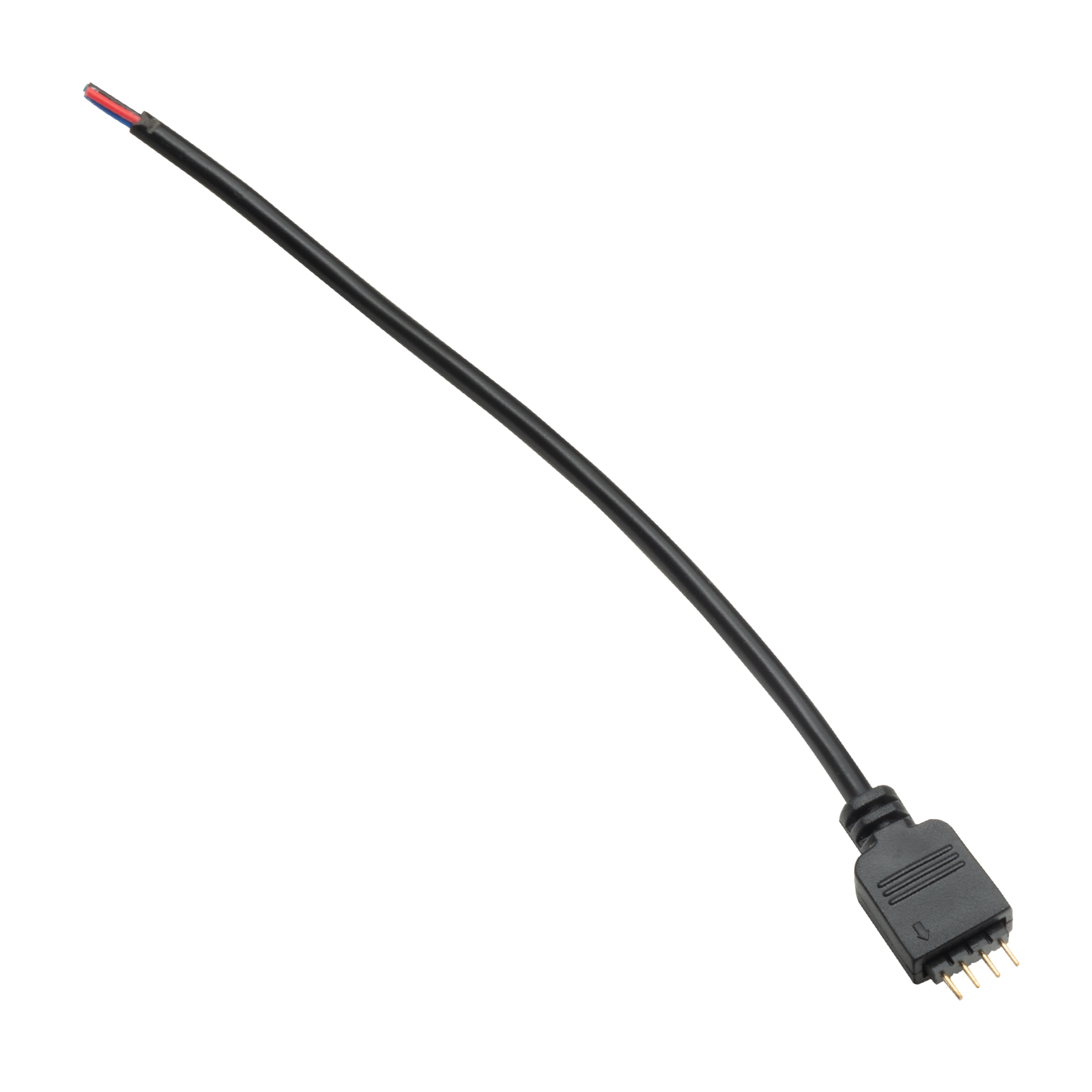

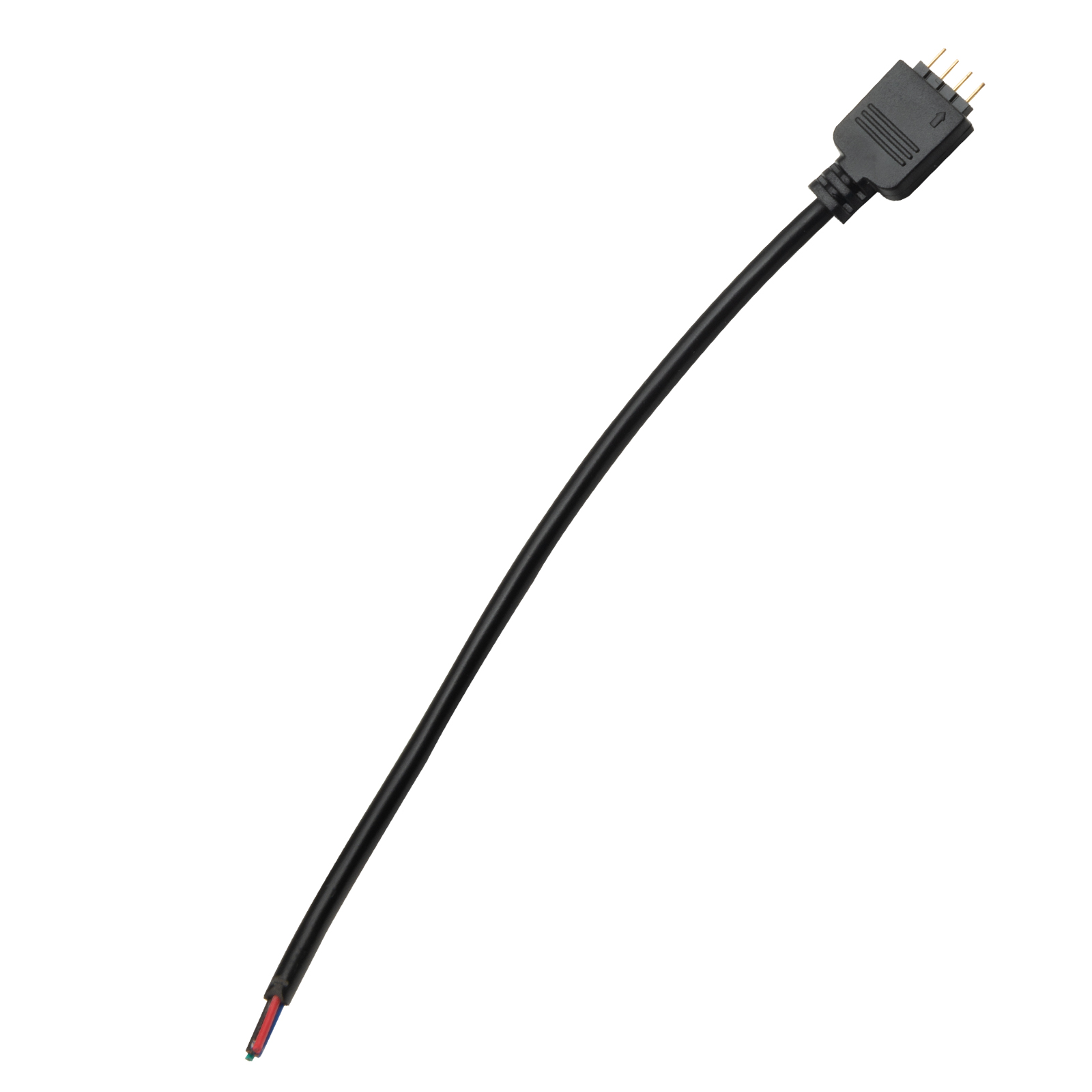

  • Includes two 4-pin RGB pigtail connectors for easy installation between LED segments
  • Compact design measures just 1.6" x 0.4" x 0.1" for discreet mounting
  • Wide voltage compatibility from 8-16V DC operation
  • Operates in extreme temperatures from -4°F to 140°F
  • Ultra-low static power consumption under 1 watt

Installation: Connect the amplifier between two RGB LED strip segments using the supplied pigtail connectors. Wire the red and black leads to a 12-volt DC power source to boost the signal and power additional lighting.

RoHS compliant and certified by FCC, CE, and cULus. Backed by Oracle Lighting's 2-year warranty for reliable performance in automotive, marine, and custom lighting applications.

Products specifications

Voltage

8 16V

Wattage

144W

Outputs

3 channels

Dimensions

Length: 1.6 in., Width: 0.4 in., Height: 0.1 in.

Power Output

12A

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Title

1624-504 - ORACLE In-Line RGB Link

Warranty

2 Year
