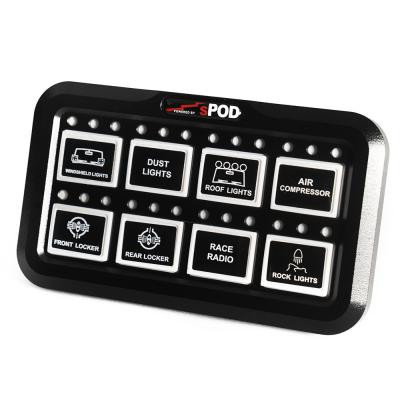

sPOD 8-800-HDADD Add-On HD Switch Panel for 8 Circuit Systems

The sPOD 8-800-HDADD Add-On HD Switch Panel expands your existing 8-circuit sPOD system with a secondary control panel that can be mounted in a different location for convenient access. This precision-machined aluminum switch panel features Bluetooth connectivity, RGB backlighting, and advanced programmability to control your vehicle's auxiliary circuits.

What's Included:

• HD Switch Panel with mounting bracket and hardware
• 10-foot Ethernet control cable
• Legend sheet with 72 reusable switch labels
• Installation instructions

Key Features:

• Precision-machined billet aluminum housing with black powder coat finish
• Tactile switches with silicone encapsulation for all-weather durability
• Compact size: 2-7/8"W x 4-7/8"L x 1/2" thick (smaller than an iPhone)
• Built-in Bluetooth LE for programming and control via free sPOD HD app
• All 8 switches feature RGB backlighting with adjustable color and intensity
• Programmable switches support dimming, flash, momentary, strobe, and switch linking modes
• Three-color status lights per switch: Red (on), White (flash/strobe), Blue (touch feedback)
• Connects to Source unit via standard RJ45 jack using CAT-6 Ethernet cable
• Can be located up to 25 feet from the Source unit
• Universal mounting options with two 1/4-20 studs and articulating mount included

Smart Features:

• Adjustable backlight timer with touch-to-reactivate functionality
• Quick backlight shutoff by holding two designated buttons
• Customizable backlight color to match vehicle interior lighting
• Adjustable status light dimming
• Compatible with sPOD SE Touchscreen, Bluetooth, and SE 8 Switch panels
• Multiple HD panels can be added for different mounting locations

App Requirements:

• Bluetooth 4.0 compatible device
• iPhone 4s or newer, iPad 2 or newer, iPad mini with iOS 7 or newer
• Android devices with Bluetooth 4.0
• Free sPOD Bantam app from iTunes or Google Play Store
• Existing sPOD 8-circuit system required

Important Notes:

• HD panel enters Deep Sleep mode after 6 hours of inactivity and will turn off any accessories left on
• Bluetooth range is 5-15 feet depending on installation location, phone type, and environmental factors
• Bluetooth is primarily designed for programming purposes rather than long-range remote control

This add-on panel provides a convenient secondary control point for your sPOD system, ideal for rear-seat passenger control, co-driver access, or mounting in different areas of your vehicle for easier reach.
