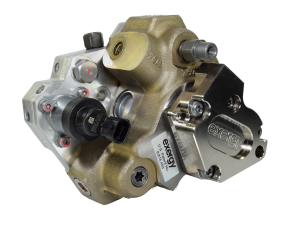

Exergy E04 20009 14mm Stroker CP3 Injection Pump Race Series

The Exergy E04 20009 is a 14mm Race Series Stroker CP3 high-pressure fuel injection pump designed for 2003-2007 Dodge 5.9L Cummins diesel engines. Built on a 6.7L Cummins-based platform, this pump delivers maximum fueling capabilities for extreme horsepower applications pushing the limits of diesel performance.

Key Features:

• 14mm stroker design with billet gear pump housing for maximum flow capacity
• Proprietary MPROP/fuel pressure regulator design for optimum rail pressure control
• Supports high-RPM operation up to 4500 RPM and pressures up to 29,000 PSI
• Each pump is tested throughout its entire operating range before shipment
• Fuel supply fed directly into billet housing at inlet port (original supply port plugged)
• No core charge or core return required

Performance Requirements:

• Primary fuel supply requirement: 200 GPH @ 15 PSI for maximum pump performance
• Custom tuning and supporting modifications required for proper function
• Different supply line required due to modified inlet configuration

Exergy's Race Series pumps undergo rigorous durability testing including 40-hour endurance tests at extreme RPMs and pressures far exceeding field conditions. This ensures reliable performance for competition and high-horsepower street applications where maximum fueling is critical.
