Viair 20185 Dual Stealth Black 485C Onboard Air System 200 PSI 12V 2.5 Gallon

The Viair 20185 Dual Stealth Black Gen 2 485C Onboard Air System is a professional-grade compressed air solution designed for trucks, off-road vehicles, and RVs. This complete kit features dual 485C Gen 2 compressors that deliver an industry-leading 100% duty cycle at 200 PSI, providing reliable continuous operation for the most demanding applications.

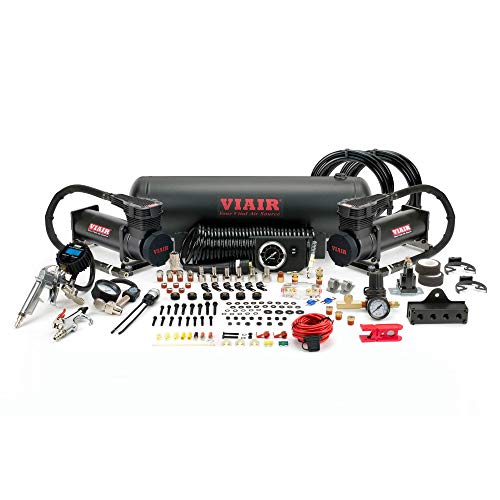

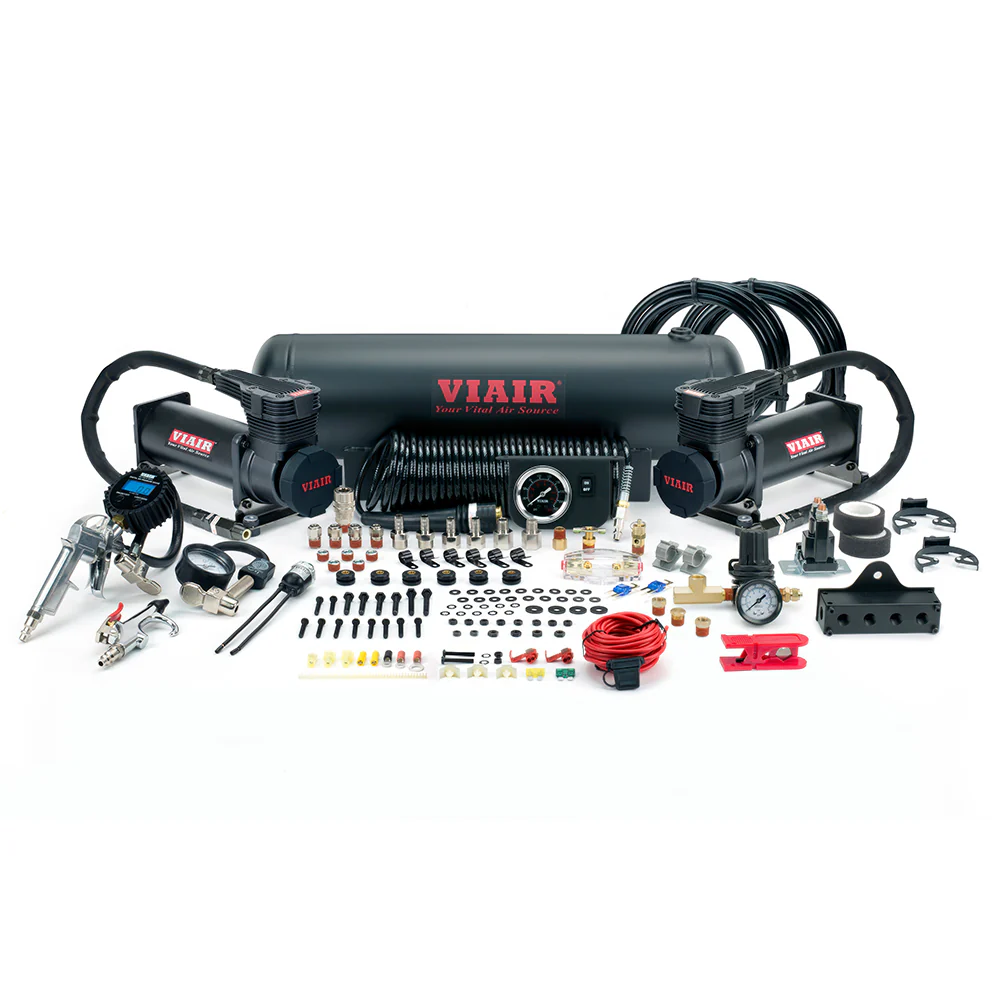

Complete System Includes:

• Two Stealth Black 485C Gen 2 air compressors with upgraded internal components
• 2.5 gallon air tank with matte black finish
• Inline pressure regulator (0-220 PSI)
• Sealed pressure switch (165 PSI on / 200 PSI off)
• Illuminated dash panel gauge with ON/OFF switch
• Digital tire inflation gun with 180 PSI gauge
• Two 20-foot quick-connect coil hoses
• Heavy duty 80 amp relay and 60 amp fuse with holder
• 250 PSI safety valve and 1/4" drain cock
• 6-port billet manifold with mounting bracket
• Complete fittings, hardware, and installation instructions

Technical Specifications:

• Maximum working pressure: 200 PSI
• Air flow: 3.82 CFM at 0 PSI
• Maximum amp draw: 44 amps (combined)
• Duty cycle: 100% at 200 PSI
• Voltage: 12V DC
• Ingress protection: IP67 rated
• Fill time: 0-200 PSI in approximately 2 minutes 20 seconds

Advanced Features: The 485C Gen 2 compressors feature newly designed thicker vibration isolators that effectively absorb vibration and reduce noise. The upgraded internal components make this a true 200 PSI-rated working pressure pump. Air filter relocation kits are included, allowing filters to be mounted in clean, dry areas to prolong compressor life.

Versatile Applications: Perfect for rapid tire inflation (up to 40" tires), air suspension systems, air bags, air springs, air lockers, air horns, and pneumatic tools. The compact 2.5 gallon tank can be mounted in a vehicle trunk, truck bed, RV storage compartment, or under the vehicle as an underbody kit in any position.

The modern stealth black finish delivers a sleek, professional appearance while the permanent magnet motors provide reliable performance with thermal overload protection. Backed by Viair's 1-year warranty and U.S.-based technical support.
