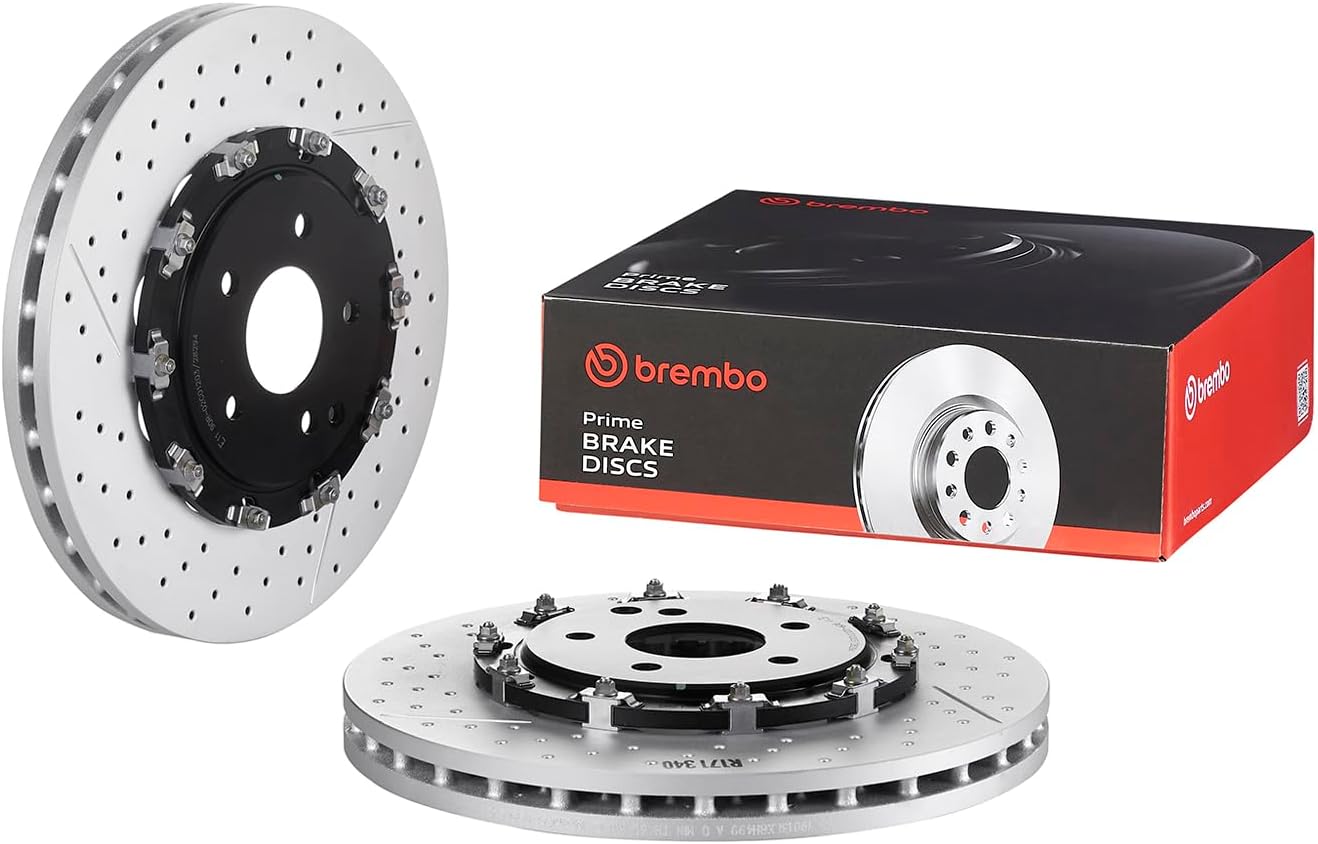

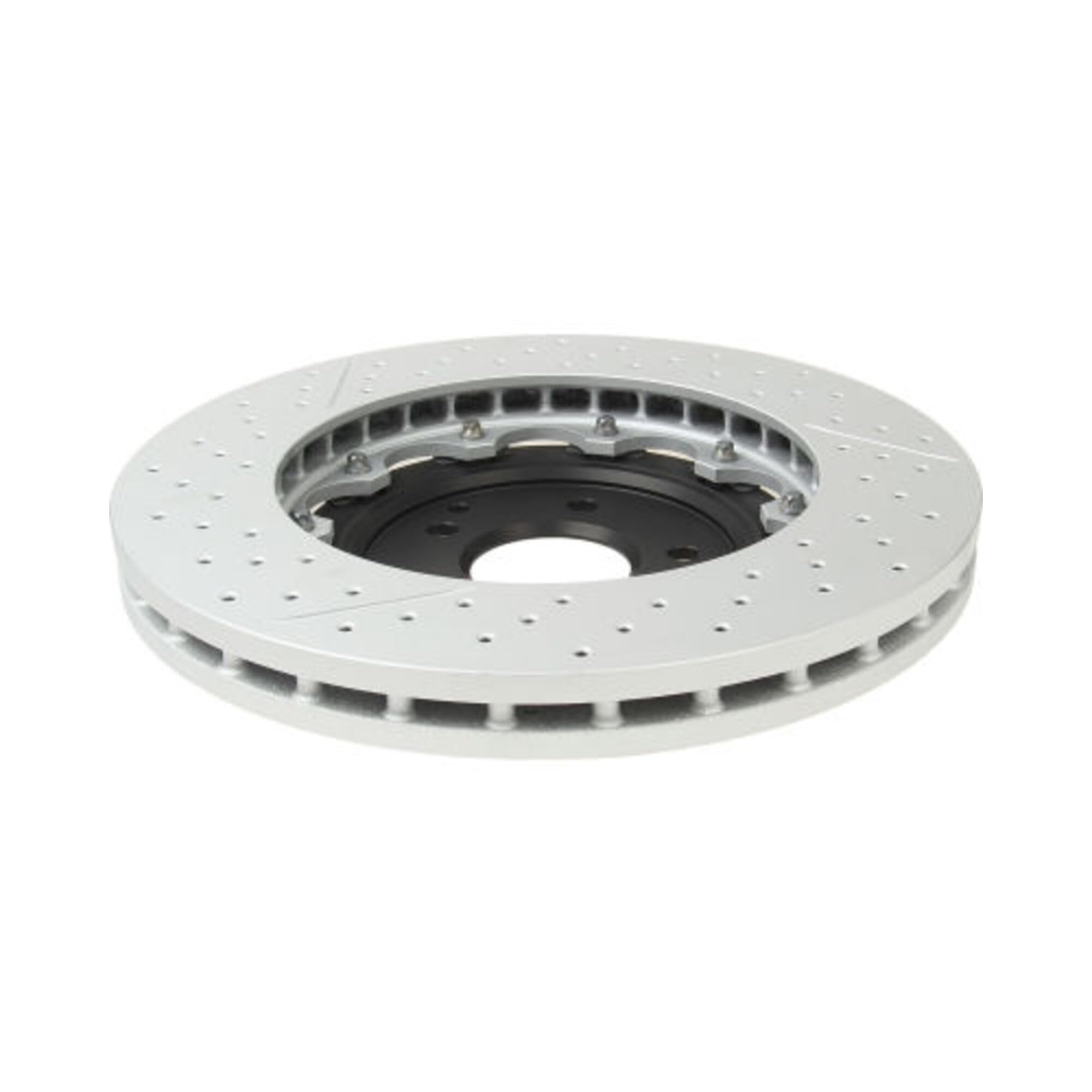

Brembo 09.9254.33 UV Coated Front Brake Rotor 340mm Drilled and Slotted

The Brembo 09.9254.33 is a premium floating two-piece front brake rotor designed as a direct OE replacement that meets or exceeds original equipment specifications. This high-performance rotor features a 340mm diameter with cross-drilled and slotted surfaces, combined with Brembo's patented Pillar Vented Technology (PVT) for superior heat dissipation and enhanced braking performance.

Key Features:

• Floating two-piece design with cast iron braking surface and lightweight aluminum hat for reduced unsprung weight
• Pillar Vented Technology (PVT) increases cooling efficiency and resistance to thermal cracking by more than 40%
• UV coating provides superior corrosion protection and eliminates the need for pre-installation cleaning
• High-carbon cast iron construction minimizes vibration and noise for enhanced driving comfort
• Cross-drilled and slotted surface improves wet weather performance and reduces brake fade
• Includes fixing screw kit with all necessary hardware for installation

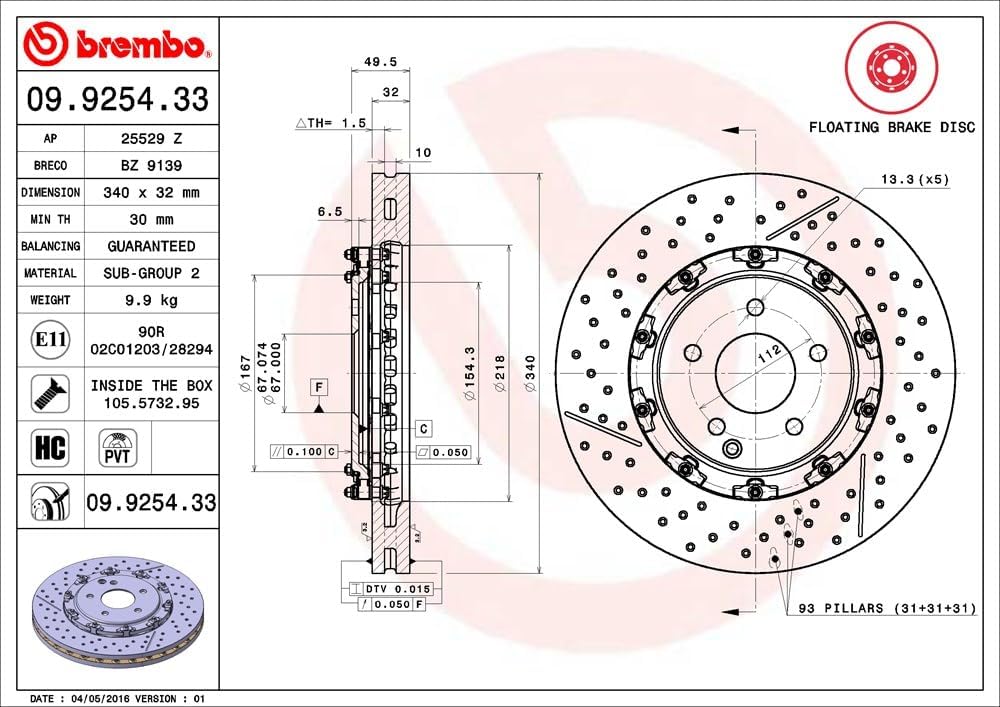

Technical Specifications:

• Diameter: 340mm (13.39 inches)
• Thickness: 32mm nominal
• Minimum thickness: 30mm
• Height: 50mm
• Number of holes: 5-bolt pattern
• Center bore: 67mm
• Axle position: Front
• OE Reference: Mercedes-Benz A1714210112, A1714210012

Brembo's environmentally friendly UV coating is solvent-free and ready to install directly from the box. The floating rotor design allows thermal expansion without deformation, while the high-carbon alloy composition ensures optimal performance across all driving conditions. ECE-R90 certified for quality assurance.
