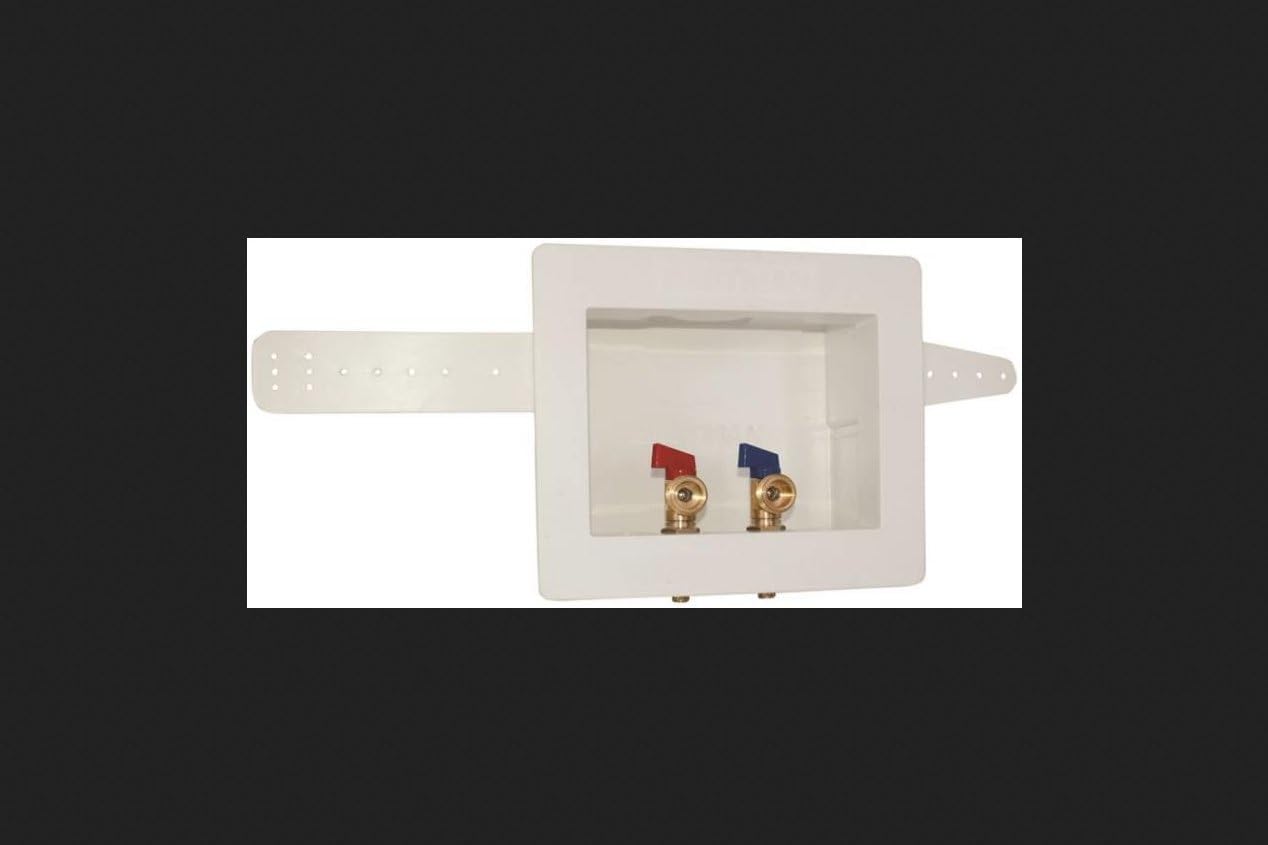

FAE 60245 1/2 Inch PEX Washing Machine Outlet Box with Dual Drain and 3/4 Inch MHT

The FAE 60245 is a dual-drain washing machine outlet box designed for recessed residential installations. This complete plumbing solution features 1/2-inch crimp PEX inlet connections and 3/4-inch male hose thread (MHT) outlets, providing a safe and convenient water supply for washing machines.

Key Features:

• Quarter-turn ball valves with brass construction for durability and reliable shut-off
• Raised drip guard and one-piece construction to prevent potential leaks
• Dual drain design accommodates right or left side installation
• 125 PSI pressure rating for residential applications
• Snap-on frame accommodates up to 1-inch drywall
• Can be installed inverted for top-mount valve configuration

Specifications:

• Rough opening: 8-1/4 inches (W) x 6-1/8 inches (H) x 3-3/4 inches (D)
• Faceplate dimensions: 10-3/16 inches (W) x 8-13/16 inches (H)
• Inlet connection: 1/2-inch crimp PEX (F10807 standard)
• Outlet connection: 3/4-inch male hose thread
• Valve material: Brass with quarter-turn operation

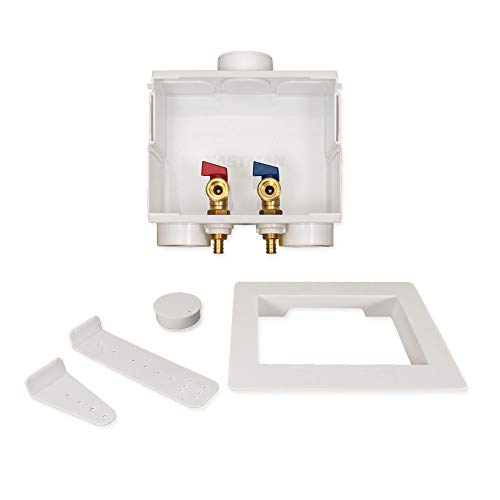

The outlet box comes complete with hot and cold valves pre-installed, mounting bracket, and faceplate cover for a professional finished appearance. Ideal for new construction or remodeling projects where behind-the-wall plumbing access is available.
