Ferrea KT4002 High Pressure Dual Valve Spring Kit Honda - B16 B18

Manufacturer

Part Number

KT4002
Black Friday Price

$937.47

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

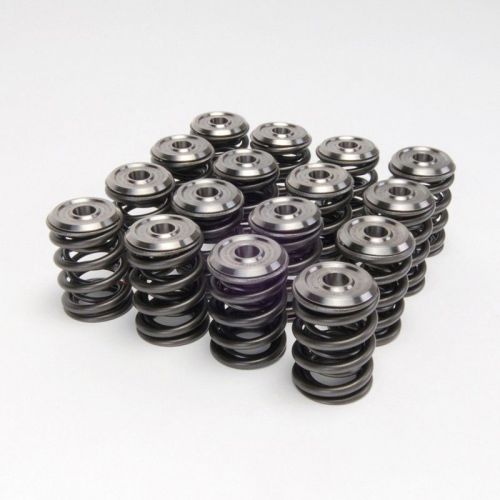

The Ferrea KT4002 is a complete high-pressure dual valve spring and titanium retainer kit designed for Honda B16 and B18 VTEC engines. This premium valvetrain upgrade kit is engineered to eliminate valve float, coil bind, and spring failure in high-RPM racing applications.

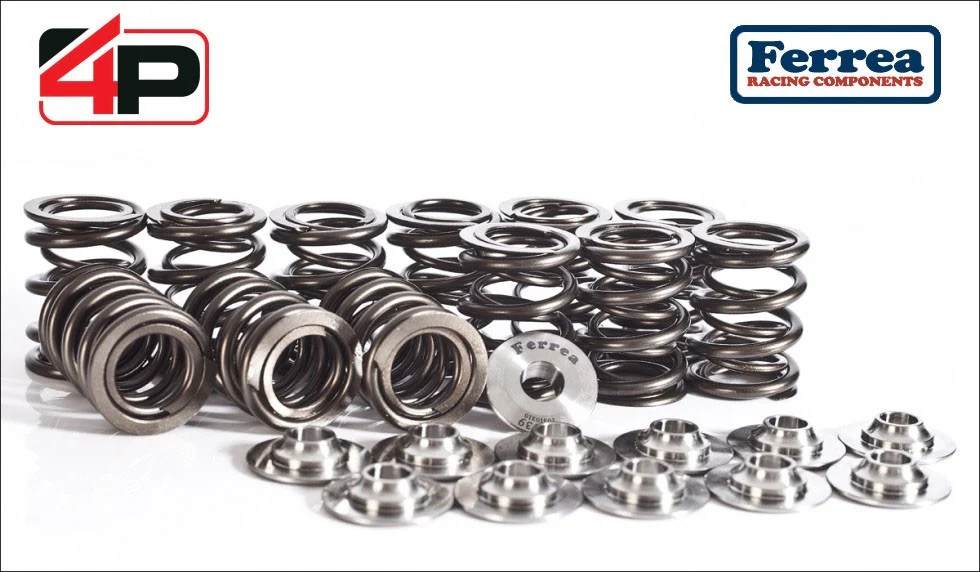

Complete Kit Includes:

  • 16 dual valve springs (S10027) with 100 lb seat pressure
  • 16 CNC-machined titanium retainers (E11000)
  • 16 chromoly spring seat locators (SL1000)
  • 16 valve locks (K10034)

Technical Specifications:

  • Seat Pressure: 100 lbs at 34mm
  • Open Pressure: 220 lbs at 24mm
  • Spring Rate: 305 lbs/inch
  • Maximum Net Lift: 13.5mm
  • Coil Bind: 20mm

Key Features:

  • Premium-grade chrome silicon steel alloy construction
  • Heat-treated and stress-relieved for extended service life
  • Uniform load and stress distribution for extreme racing conditions
  • Titanium retainers for reduced valvetrain mass and increased RPM capability
  • 4140 chromoly spring seat locators with nitrided surface for superior wear resistance

Ferrea valve springs provide the stability needed for high-lift, high-RPM racing engines while minimizing load loss with aggressive camshaft profiles. This kit is ideal for high-revving naturally aspirated builds, forced induction applications, and complete race engine builds where valvetrain reliability is critical.
