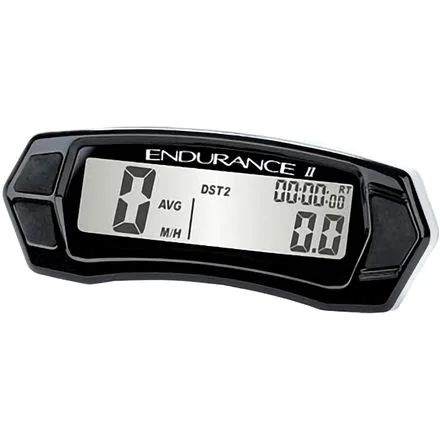

Trail Tech 202118 Endurance II Digital Gauge Speedometer Computer Kit

The Trail Tech Endurance II (202-118) is a compact, full-featured digital speedometer and computer kit designed for ATVs, motorcycles, UTVs, and snowmobiles. Building on the original Endurance meter, the Endurance II adds a full-time LED backlight and hardwired power connection, making it a capable and easy-to-read replacement for an entire factory instrument cluster.

At just 4.12" x 1.6", this stealth black unit installs virtually anywhere and connects with only two wires. The Endurance II automatically stays awake by sensing external power or wheel spin, so it's always ready when you ride.

Key Features:

• Current, average, and maximum speed display (0–199 KPH/MPH)
• Full-time LED backlight for visibility in all conditions
• Odometer with two independent trip odometers (0–199,999 KM/M)
• Riding time, trip stopwatch, and accumulated ride time (0–9,999 hours)
• Built-in clock
• Maintenance reminder triggered by hours or mileage (0–9,999 KM/M)
• Increment/decrement trip distance function
• Stealth black housing
• Wide external power input range: 9–300 VAC / 9–50 VDC (no polarity requirements)
• Internal CR2032 backup battery with approximately 1-year battery life

Kit Includes:

• Endurance II computer unit
• Mounting hardware
• Wheel sensor
• Magnet sensor kit
• Power lead (red/black 20-gauge wire)

Specifications:

• Screen size: 2.5" x 0.69" (63.8 x 17.6 mm)
• Physical dimensions (W x H x D): 4.12" x 1.6" x 1.17" (104.76 x 40.91 x 26.8 mm)
• Weight: 3.9 oz (110 g)
• Operating temperature: 32°F–140°F (0°C–60°C)
• Storage temperature: 0°F–175°F (-20°C–80°C)
• Cross-reference: 665-202118, 2210-0524, UPC: 028752130769

The Endurance II is the ideal digital gauge for the minimalist rider or custom builder who needs essential speed, distance, and time data in a clean, low-profile package.
