Switch-Pros SP9100 8-Switch Panel Power System with Bluetooth

The Switch-Pros SP9100 Switch Panel Power System is a fully programmable solid-state switching system designed to eliminate dashboard clutter in off-road vehicles, UTVs, trucks, and specialty rigs. This advanced 8-switch panel consolidates all your accessory controls into one compact, professional-grade solution with built-in Bluetooth connectivity and RGB backlighting.

Key Features:

• Eight user-programmable switches with one dedicated programming switch
• 125-amp capacity waterproof solid-state power module with 8 outputs: four 35A circuits and four 20A circuits
• Built-in Bluetooth module for iOS and Android app control - program and operate remotely from your smartphone
• RGB backlighting with unlimited color options via color picker in app
• Battery voltage and temperature readout displayed on app screen
• Orange LED switch indicators and blue LED for Bluetooth connection status
• Adjustable output overcurrent protection values
• Daisy chain capability - connect up to 3 switch panels to one power module
• Multiple programming options: On/Off or Momentary, Ignition or Battery Input, Flash or Strobe patterns
• Master Mode to control multiple outputs with one touch
• Memory function and automatic power-up upon vehicle startup
• Two external trigger inputs can each activate up to four outputs (Active Hi or Low)
• Dimming capability from 100% to 10% for lighting outputs
• Sleep mode for minimal power consumption (3.0mA draw)
• Time delay off function available for all outputs

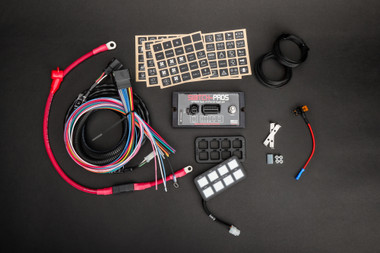

What's Included:

• Switch panel and power module
• RCR-Touch®8 protective cover for easy switch selection while wearing gloves
• 11 feet of communication cable between switch panel and power module
• Power cable with 125A inline fuse
• 125 user-selectable switch legends (horizontal orientation)
• Installation brackets and mounting hardware
• 16-pin color-coded output harness
• Detailed installation guide

Proudly manufactured in the United States, the SP9100 is ideal for controlling lights, winches, air compressors, lockers, and any other electrical accessories. The solid-state design eliminates the need for bulky relays while providing superior reliability and easy troubleshooting with LED input status indicators on the power module.
