Edelbrock 22751 Max-Fire HEI Distributor Chevy Small Big Block V8 262-502

(GMC G2500 1979-86, K1500 1979-86, C1500 1979-86, K2500 1979-86, Jimmy 1973-86, C3500 1979-86, K2500 Suburban 1979-86, K3500 1979-86 + 105 more models)

Manufacturer

Part Number

22751
Black Friday Price

$432.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

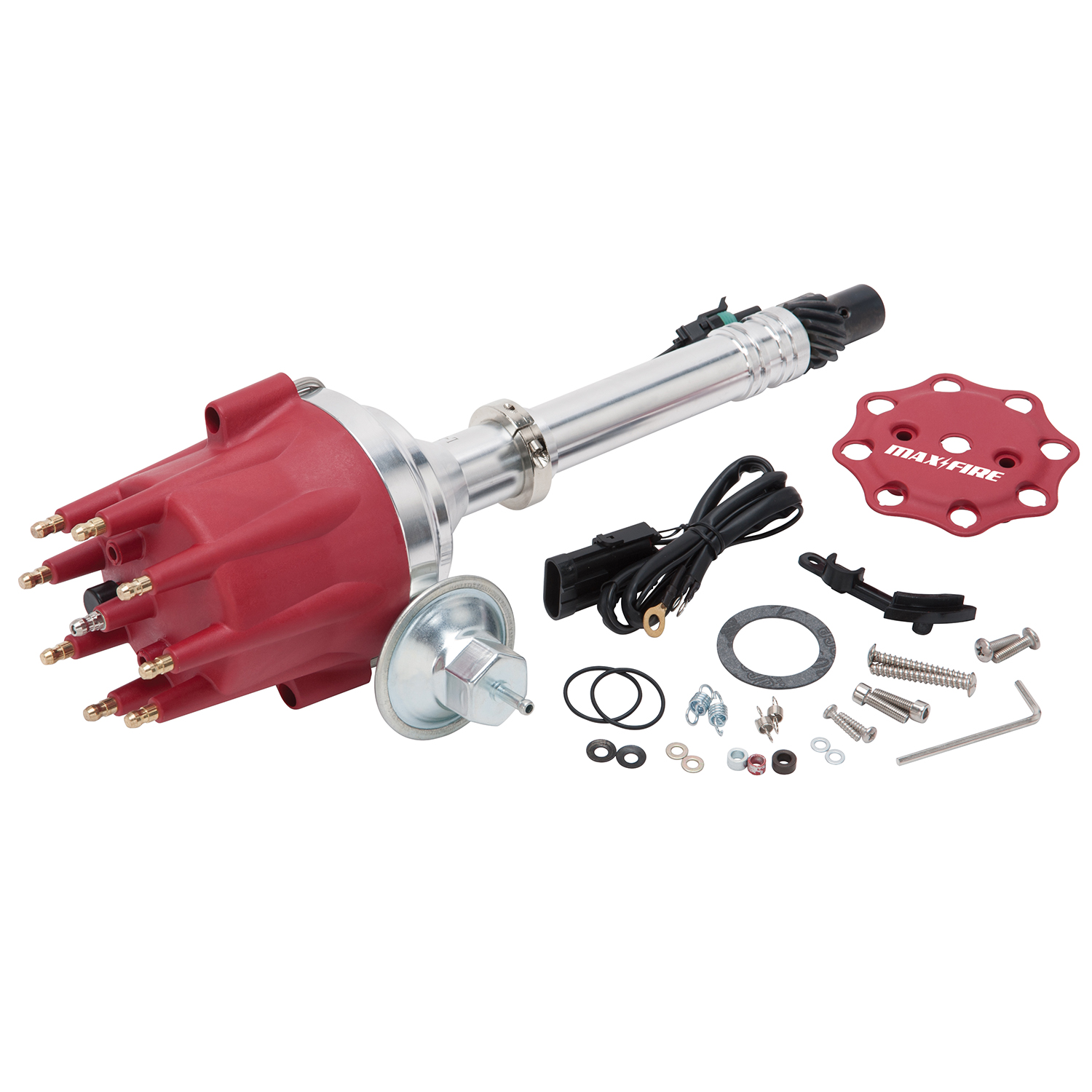

The Edelbrock Max-Fire Distributor is a high-performance, ready-to-run ignition solution designed for Chevrolet V8 engines from 262 to 502 cubic inches (excluding 348/409 engines). This slip collar distributor provides a significant upgrade over factory points-triggered ignition systems with precision engineering and modern electronic controls.

Key Features:

  • Ready to Run Design: Simple three-wire hookup eliminates the need for external ignition control boxes
  • Precision Construction: CNC machined from 6061-T6 aluminum with O-ring grooves for perfect fitment in fully machined engine blocks
  • Durable Shaft Assembly: Centerless ground shaft with upper sealed roller bearing and extended lower bronze Oil-Lite bushing ensures smooth, reliable operation
  • High RPM Performance: High-output magnetic pickup and large paddle wheel reluctor deliver strong trigger signals even at high engine speeds
  • Premium Components: Cap and rotor molded from 30% glass-filled polyester with brass contacts and stainless steel rotor spring for maximum conductivity and carbon tracking resistance
  • Long Service Life: Hardened iron drive gear provides exceptional durability
  • Fully Adjustable: Both mechanical and vacuum advance are adjustable to optimize performance and fuel economy

What's Included: Distributor cap, rotor, retainer, and mechanical advance curve kit. Edelbrock recommends pairing with a Max-Fire coil for maximum voltage output at higher RPMs.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products specifications

Fits

GMC G2500 1979-86, K1500 1979-86, C1500 1979-86, K2500 1979-86, Jimmy 1973-86, C3500 1979-86, K2500 Suburban 1979-86, K3500 1979-86, C15/C1500 Pickup 1972-74, C2500 1979-86, K1500 Suburban 1979-86, G25/G2500 Van 1974 + 101 more models

Advance Type

Vacuum and mechanical

Coil Wire Included

Yes

Distributor Cap Included

Yes

Ignition Box Required

No

Ignition Coil Included

No

Trigger Type

Magnetic

Grade Type

Performance

Marine Approved

No

Ignition Rotor Included

Yes

Color

Red

Distributor Type

High Performance

Engine Make/Size

Chevy Small Block

Rotor Rotation

Clockwise

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Gear Material

HARDENED IRON

Cap Color

RED
