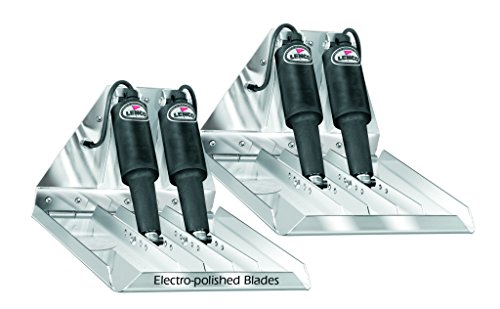

Lenco 15047-101 24" x 14" Extreme Duty Performance Trim Tab Kit w/o Switch

The Lenco 15047-101 is a 24" x 14" Extreme Duty Performance trim tab kit with 12-volt dual actuators, supplied without a switch kit. Electric trim tabs help you adjust boat attitude and running trim for better control, and this kit is designed for boats from 25' to 50'.

Key Features:

• Fast-response electric actuators for precise control
• Fully submersible, with Plug & Play Deutsch connections
• Electro-polished 10 gauge 304 stainless steel blades with 1" turned-up edges, an 85 degree inside taper and a 3/8" diameter hinge pin
• Extreme Duty actuators with 3/8" stainless steel bolts
• Factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes

Kit Contents:

• 2 stainless steel trim tab planes
• 4 #15056-001XD extreme duty actuators with 6" leads and Deutsch plugs

Specifications:

• Suggested boat length: 25' to 50'
• Tab length: 24"
• Tab width: 14"
• Minimum transom height: 10.5"
• Blades: 10 gauge stainless steel, electro-polished
• Actuators: 12-volt
• Class: Fuel Efficient
• Compliance: CE certified

Required, sold separately:

• Switch kit (15071-001)
• Actuator extension harnesses (2 for single actuator applications or 4 for dual), in the lengths you choose
• Boat mounting hardware
