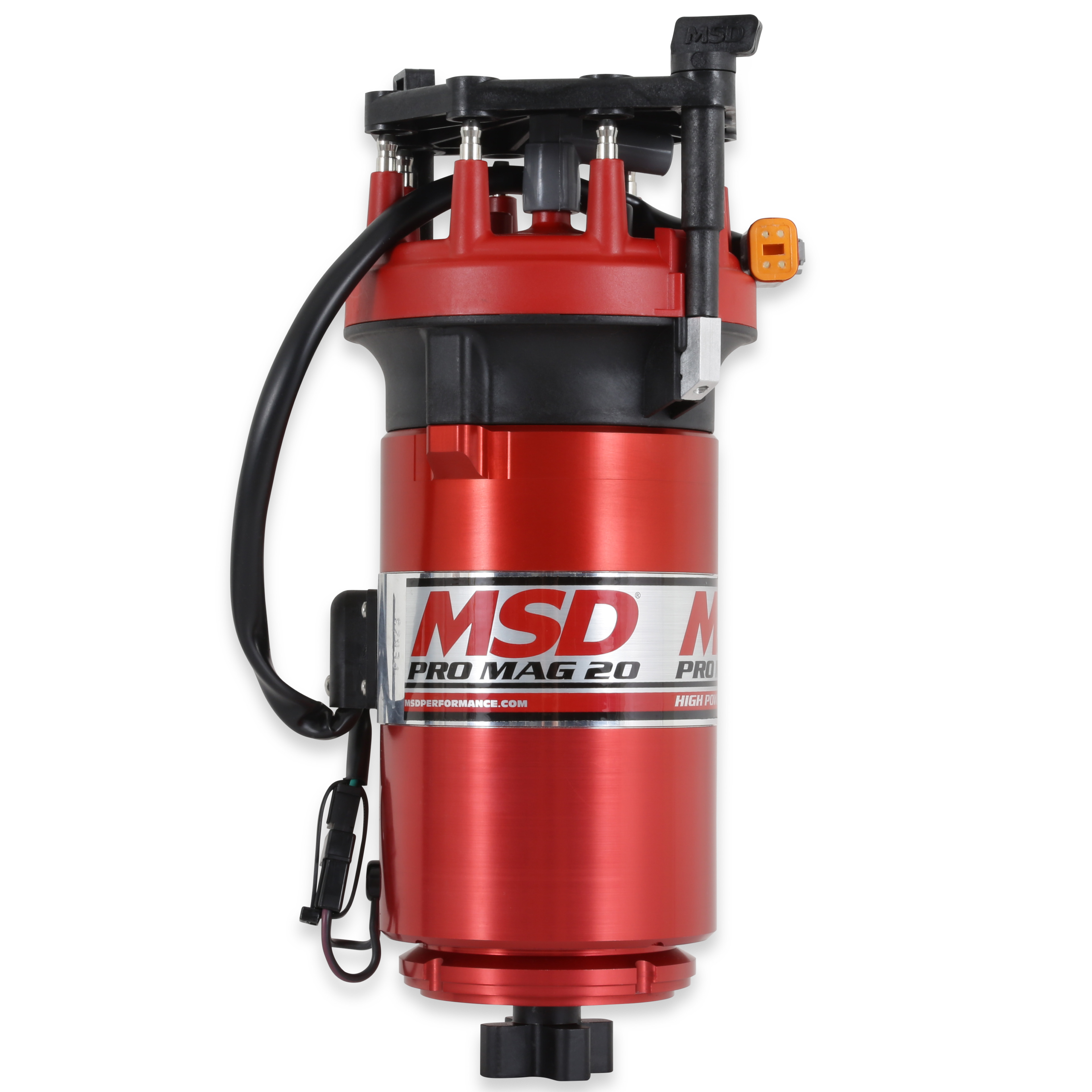

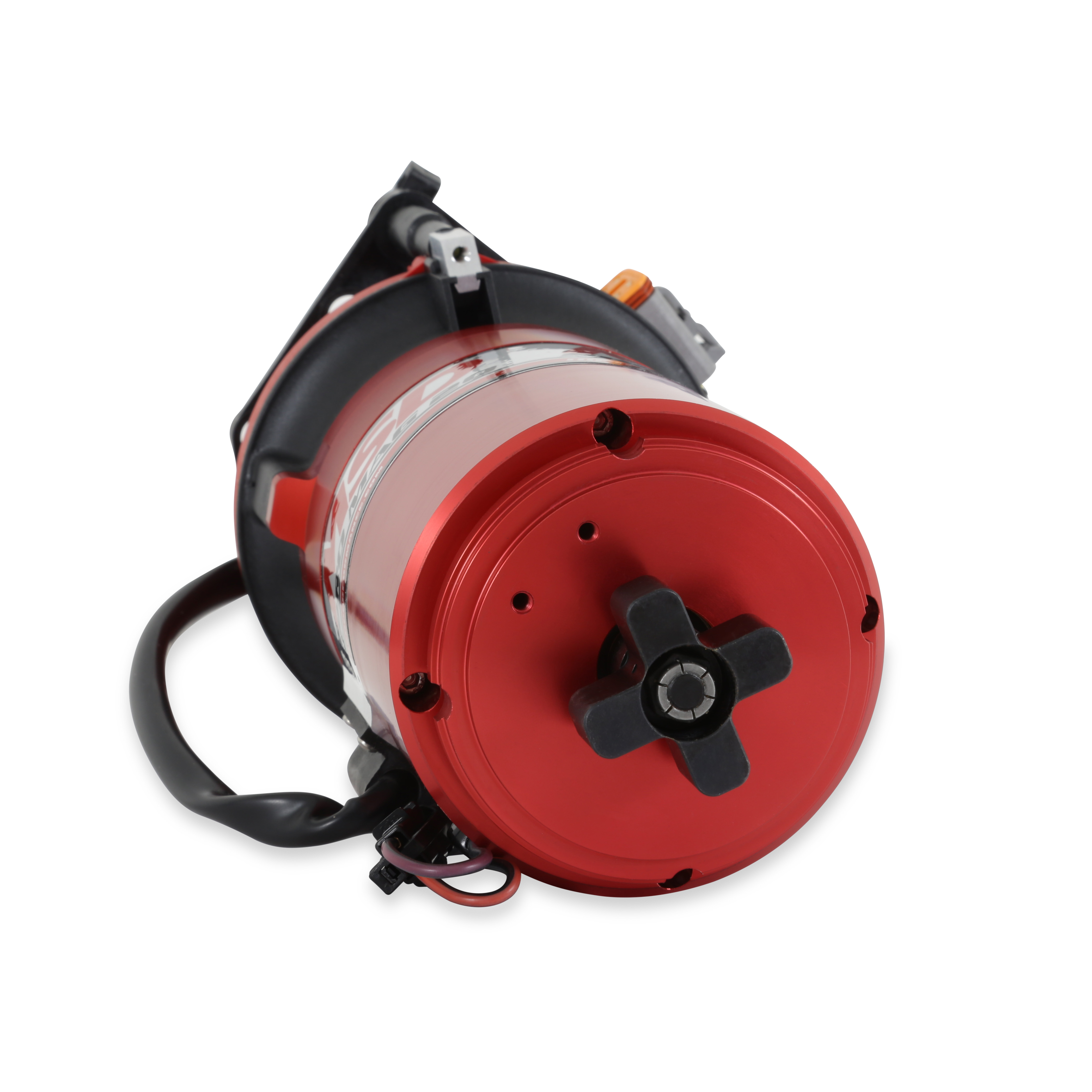

MSD 81502 Pro Mag 20 Amp Magneto Generator CW Rotation Band Clamp

Manufacturer

Part Number

81502
Sale Price

$2,698.95

In Stock (9)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MSD 81502 Pro Mag 20 Amp Generator is a high-output racing magneto designed for serious competition applications. Built for clockwise (CW) rotation and featuring a stainless steel band clamp mount, this magneto delivers a powerful, consistent spark at extreme RPM levels demanded by drag racing and circle track competition.

The 20 Amp output level was developed specifically for alcohol-fueled engines, making it a popular choice in Sportsman Dragsters and Quick-8 race classes. MSD engineers achieved the increased current output through internal refinements while retaining compatibility with the standard Electronic Points Box (PN 8106) — required for operation and sold separately.

Key Features:

  • Primary Current: 20 Amps
  • Secondary Voltage: 40,000 Volts
  • Secondary Current: 300 milliAmps
  • Spark Energy: 240 millijoules (at the gap)
  • Spark Duration: 26° crankshaft rotation
  • RPM Rating: Rated through 14,000 RPM
  • Pickup Type: Magnetic pickup
  • Rotation: Clockwise (CW)
  • Mount Style: Stainless steel band clamp

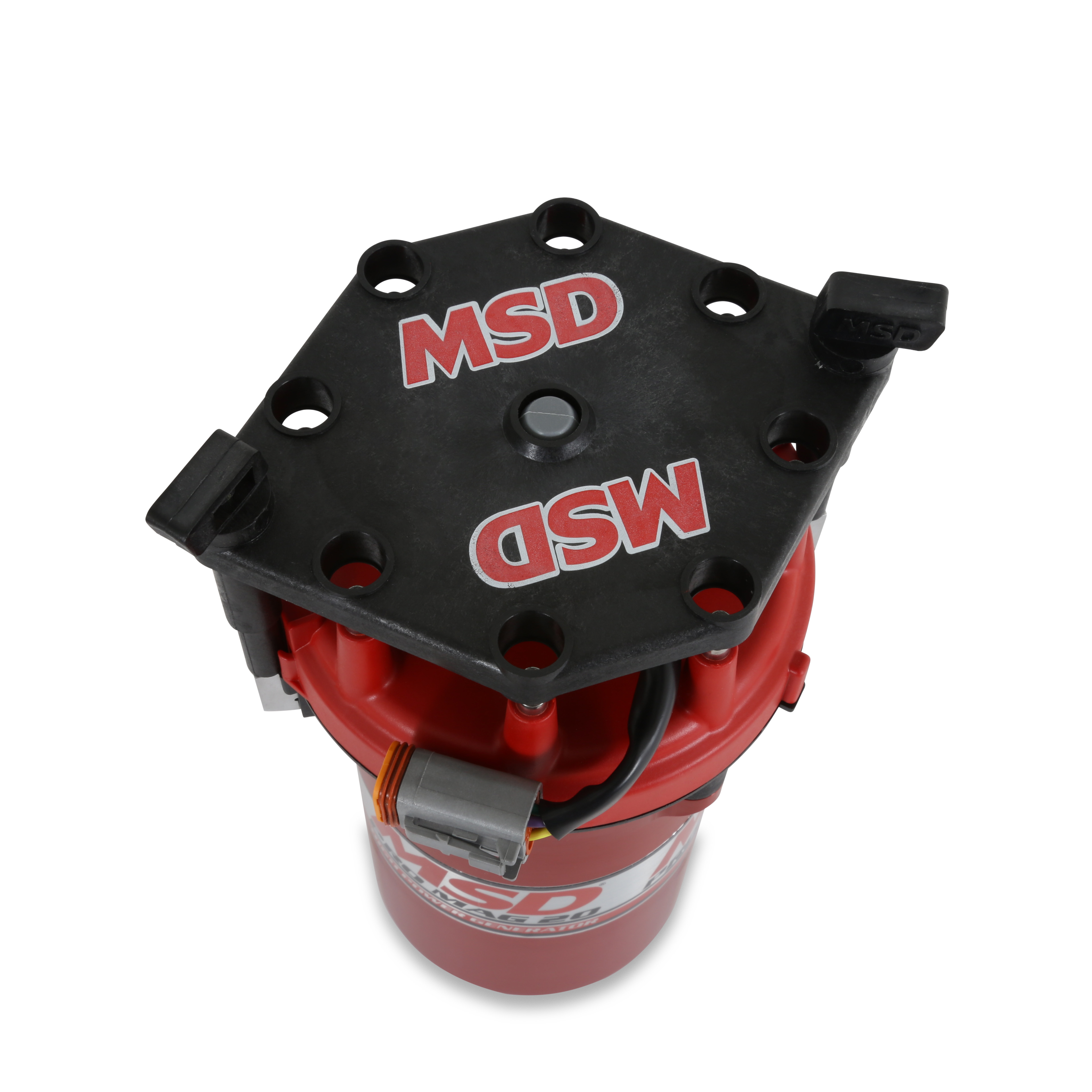

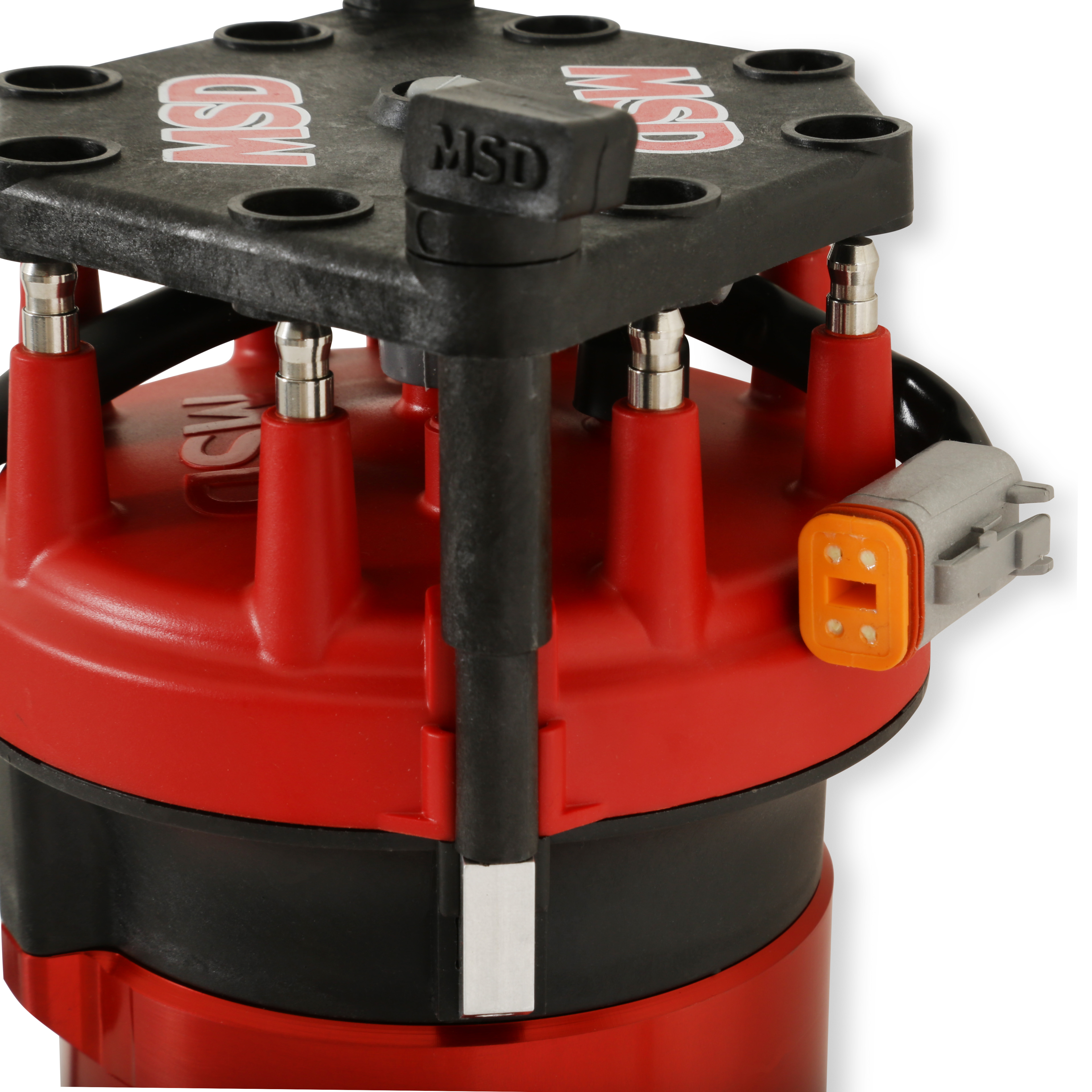

  • Cap Style: Large Ford-style cap with heavy-duty retainer
  • Cap Diameter: 5 inches

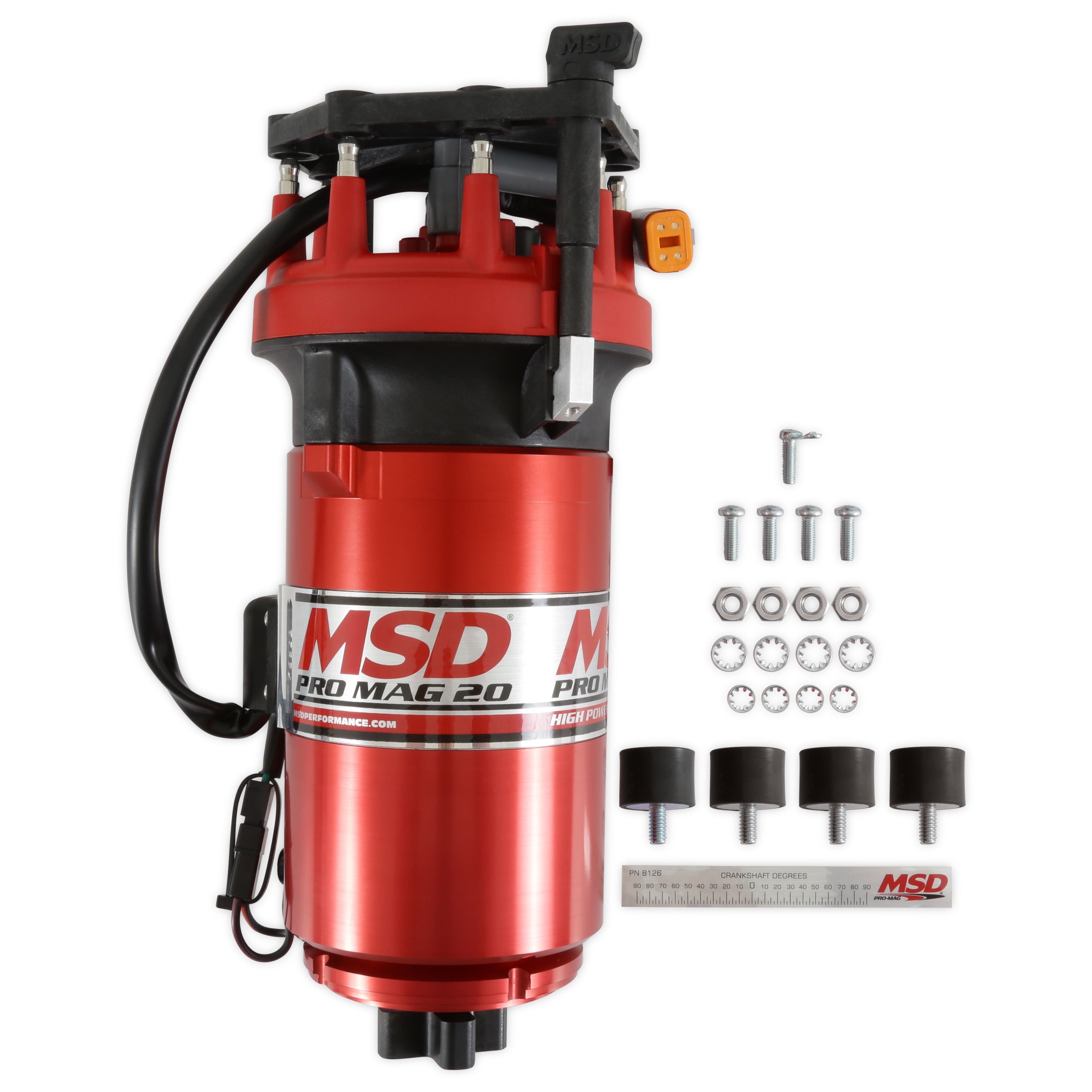

What's Included: Pro Mag 20 Amp Generator with band clamp. Note: Requires MSD Electronic Points Box PN 8106, sold separately.

Racing Use Only: This product is intended exclusively for closed-course competition use on non-emissions-controlled vehicles. It is not legal for use on street-driven or emissions-controlled vehicles.

Products specifications

Style

Straight

Finish

As Cast

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Secondary Voltage

40000

Spark Duration

26 Degree Crankshaft Rotation

Spark Energy

240 mJ per spark
